RS300-E12-RS4

ASUS RS300-E12-RS4 in an Intel® Xeon® E-2400 1U server with support for four DDR5 ECC UDIMM, four NVMe, one M.2, one PCIe® 5.0 slot and one PCIe 4.0 slot, plus dual LAN, 80 PLUS® Platinum redundant power supplies, Intel Platform Firmware Resilience (PFR), onboard ASUS ASMB11-iKVM and chassis-intrusion alert.

  • Powered by eight-core Intel Xeon E-2400-series processor with support for up to 95 W TDP
  • Four 3.5-inch or 2.5-inch hot-swap drives on front panel and one M.2 to enable extensive storage
  • Up to one PCIe 5.0 slots and one PCIe 4.0 proprietary slot to drive higher bandwidth
  • High power efficiency with redundant 450 W 80 PLUS Platinum power supplies
  • Dual Intel I210-AT gigabit Ethernet with teaming support
  • Onboard ASUS ASMB11-iKVM for out-of-band management with ASPEED AST2600 controller
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
  • Chassis-intrusion for enhanced physical security

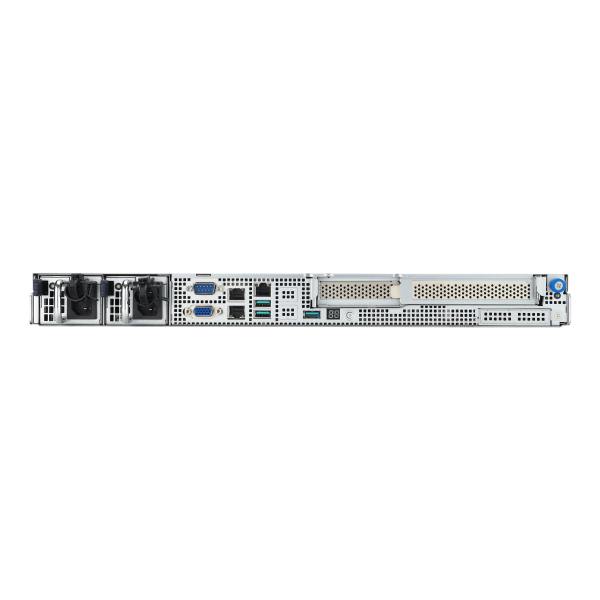

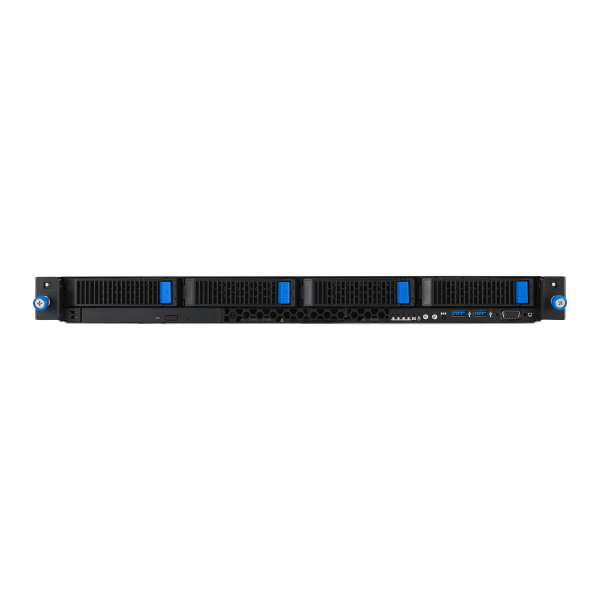

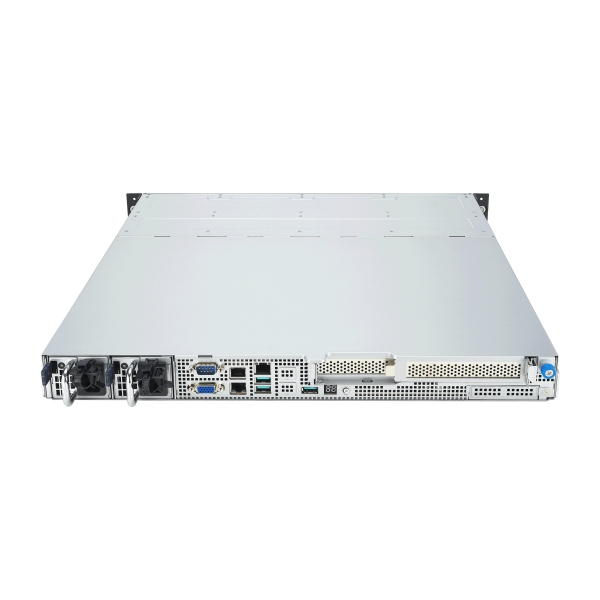

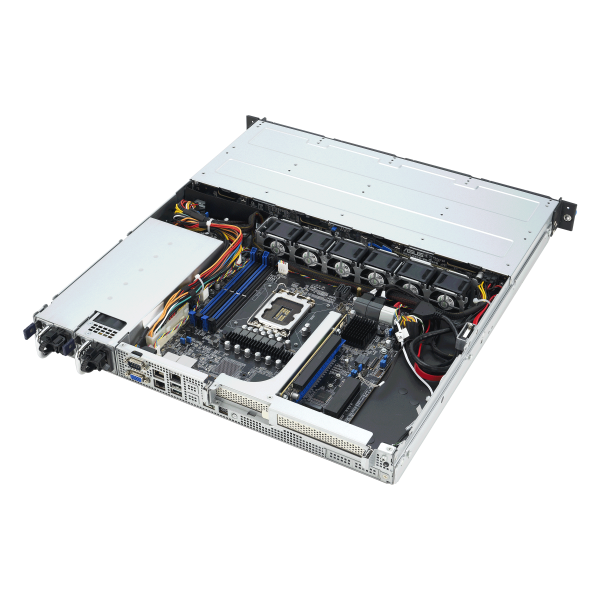

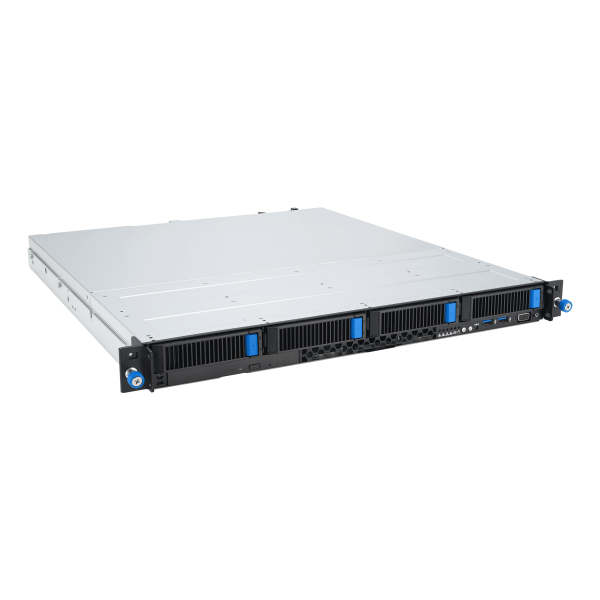

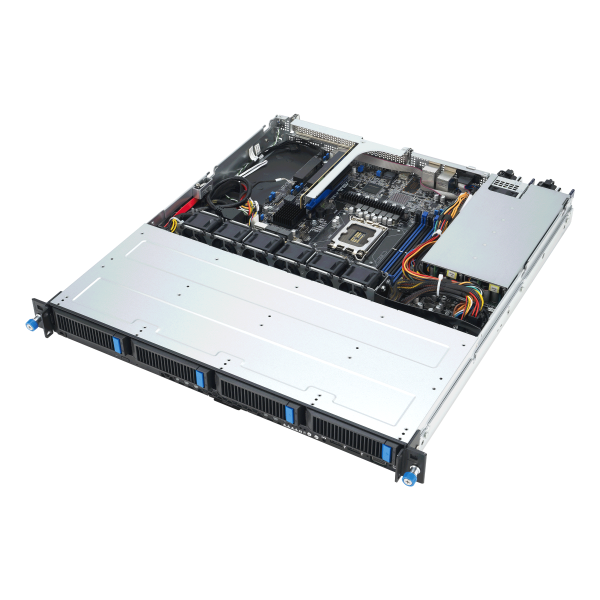

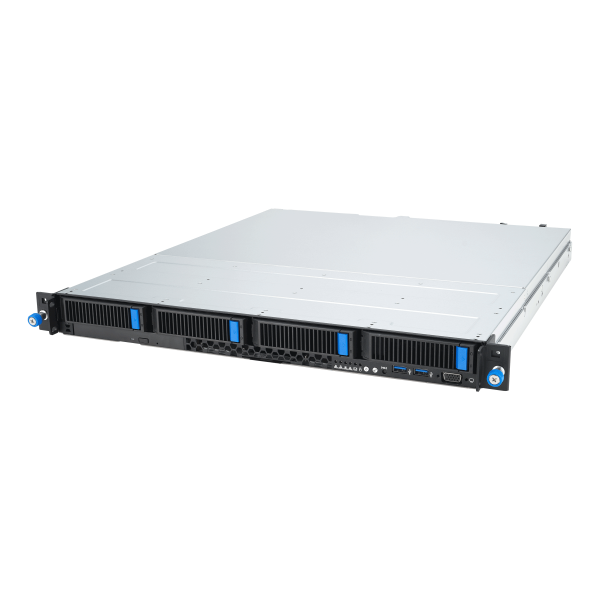

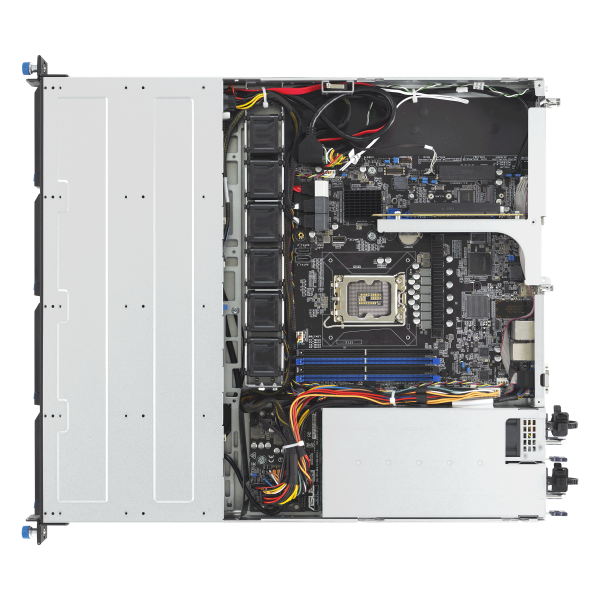

Product Image

Specifications

  • Processor / System Bus

    1 x Socket LGA1700
    Intel® Xeon® processor E-2400 family
    Intel® Pentium™ processors
    *Refer to support page for more information

  • Generation

    E12

  • Core Logic

    Intel® C262 Chipset

  • Memory

    Total Slots :
    4 (2-channel)
    Capacity :
    Maximum up to 128GB UDIMM
    Memory Type :
    DDR5 4400/4000/3600 UDIMM
    Memory Size :
    32GB, 16GB, 8GB UDIMM
    * Refer to support page for more information

  • Expansion Slots

    Total PCI-E Slots: 3
    1 x PCI-E x 16 (Gen5 x16 Link, switch to x8 link when slot B occupied), FH/HL
    1 x PCI-E x 8 (Gen5 x8 Link), HH/HL*
    1 x PCI-E x 4 (Gen4 x4 Link), Proprietary R/A slot
    (optional for Intel X710 10G LAN card or PEI-1G/I210-2T/M,2 card)

  • Storage

    Storage Controller :
    Intel® C262 Chipset
    8 x SATA3 6Gb/s ports
    SAS Controller :
    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

  • HDD Bays

    4 x 3.5” Hot-Swap HDD Bays
    -up to (4*SATA/SAS/NVMe)
    *SAS support only from optional SAS HBA/RAID card
    *NVMe support only from optional NVMe upgrade kit

  • Auxiliary Storage FDD/CD/DVD

    1 x Slim-type Optical Drive Bay
    Options: No Device / DVD-RW / DVD-ROM

  • Networking

    2 x Intel® I210AT + 1 x Mgmt LAN

  • Graphic

    Aspeed AST2600 with 64MB VRAM

  • Multi-GPU Support

    Please find the latest GPU support from https://servers.asus.com/support/gpu

  • Front I/O Ports

    1 x VGA port
    2 x USB 3.2 Gen1 ports

  • Rear I/O Ports

    3 x USB 3.2 Gen 2 ports
    1 x VGA port
    1 x COM port
    1 x RJ-45 ports

  • Switch/LED

    3 x USB 3.2 Gen 2 ports
    1 x VGA port
    1 x COM port
    1 x RJ-45 ports

  • OS SUPPORTED

    Please find the latest OS support from https://servers.asus.com/support/os

  • Management Solution

    ASUS Control Center Enterprise On-Board ASMB11-iKVM for KVM-over-Internet

  • Regulatory Compliance

    BSMI, CE, CB, FCC(Class A)

  • Dimensions

    497mm x 439.5mm x 44mm

  • Form Factor

    1U

  • Weight

    15.2kg

  • Power Supply

    1+1 Redundant 450W 80 PLUS PLATINUM Power Supply

  • Environment

    Operating temperature: 10°C ~ 35°C
    Non operating temperature: -40°C ~ 70°C
    Non operating humidity: 20% ~ 90% ( Non condensing)
