ROG Strix GeForce RTX™ 4060 OC Edition 8GB GDDR6

NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2X performance and power efficiency
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2x ray tracing performance
OC edition: 2700 MHz (OC Mode)/ 2670 MHz (Default Mode)

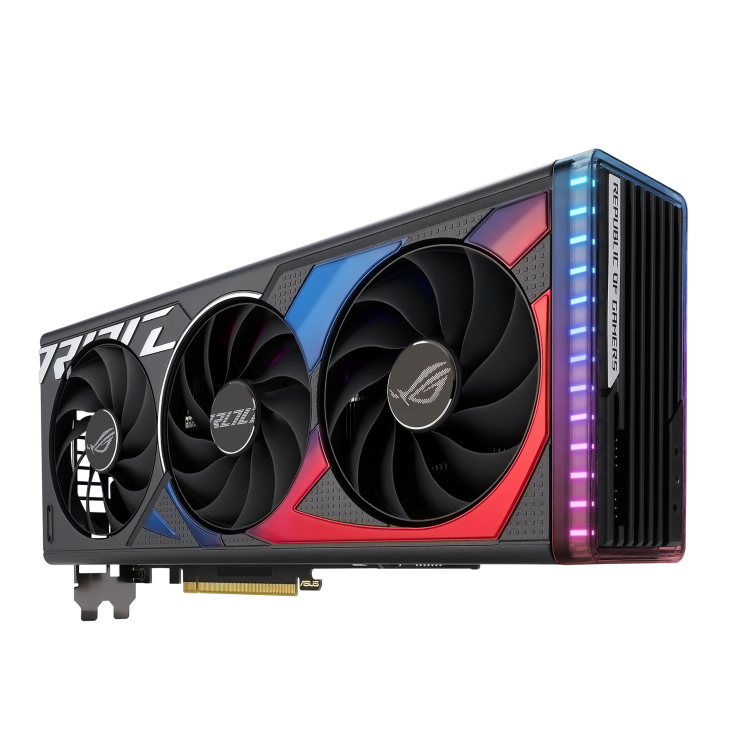

Axial-tech fan design features a smaller fan hub to increase airflow through the cooling array.
3.1-slot design: massive fin array optimized for airflow from the three Axial-tech fans.

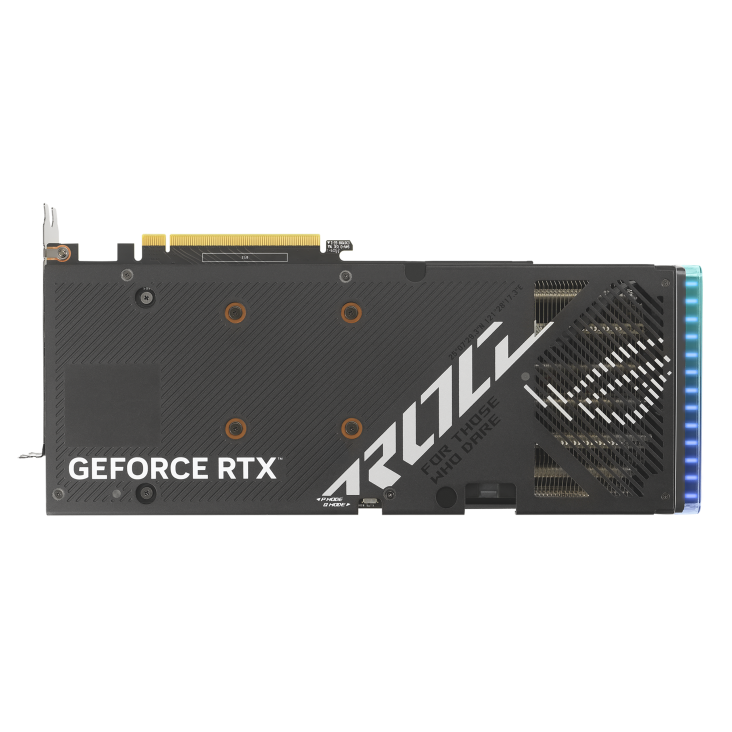

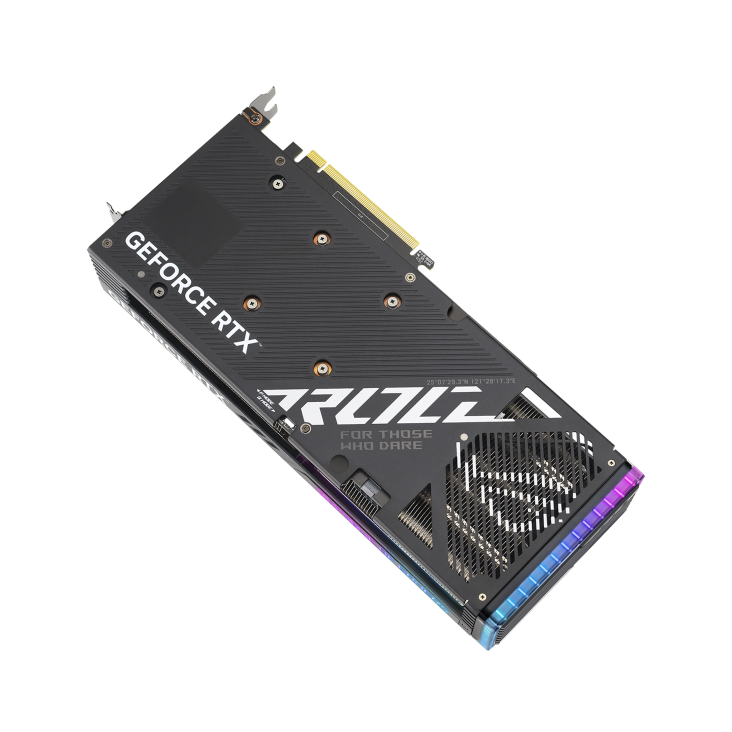

Vented backplate works in tandem with upgraded Axial-tech fans to maximize heat dissipation
Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

Specifications

Graphic Engine

NVIDIA^® GeForce RTX™ 4060
Bus Standard

PCI Express 4.0
OpenGL

OpenGL^®4.6
Video Memory

8GB GDDR6
Engine Clock

OC mode : 2700 MHz
Default mode : 2670 MHz (Boost)
CUDA Cores

3072
Memory Speed

17 Gbps
Memory Interface

128-bit
Resolution

Digital Max Resolution 7680 x 4320

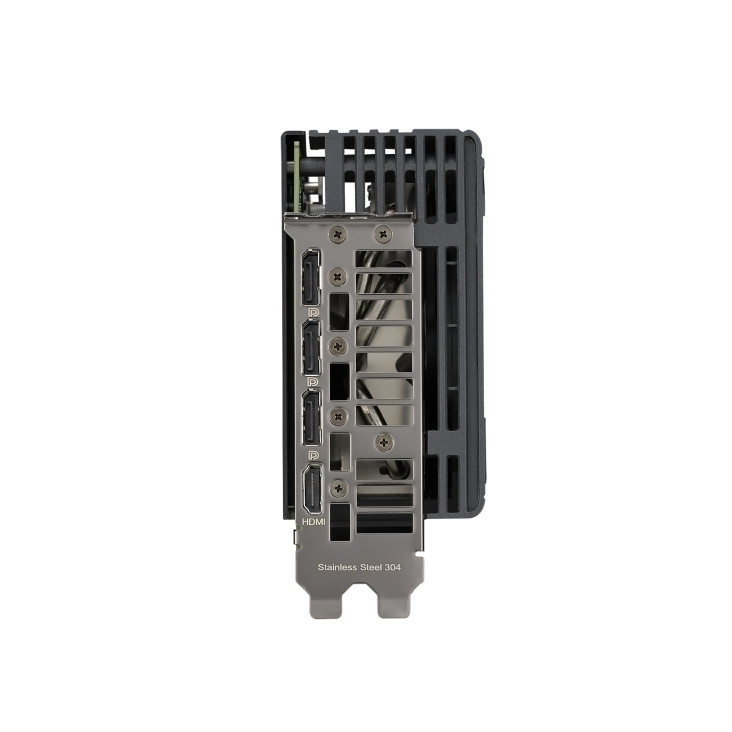

Interface

Yes x 1 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support

4
NVlink/ Crossfire Support

No
Accessories

1 x Collection Card
1 x Speedsetup Manual
1 x Thank You Card
1 x ROG Velcro Hook & Loop
Software

ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
DIMENSIONS

311.4 x 133.5 x 61.9mm
12.26 x 5.26 x 2.44 inches
Recommended PSU

550W
Power Connectors

1 x 8-pin
Slot

3.1 slot
AURA SYNC

ARGB
Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
