ROG Astral GeForce RTX™ 5080 16GB GDDR7 OC Edition
Overview
Specifications
Buy Now

ROG Astral GeForce RTX™ 5080 16GB GDDR7 OC Edition

The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5080 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.

Product Image

Specifications

  • Graphic Engine

    NVIDIA® GeForce RTX™ 5080

  • AI Performance

    1899 TOPs

  • Bus Standard

    PCI Express 5.0

  • OpenGL

    OpenGL®4.6

  • Video Memory

    16GB GDDR7

  • Engine Clock

    OC mode: 2790 MHz
    Default mode: 2760 MHz (Boost Clock)

  • CUDA Cores

    10752

  • Memory Speed

    30 Gbps

  • Memory Interface

    256-bit

  • Resolution

    Digital Max Resolution 7680 x 4320

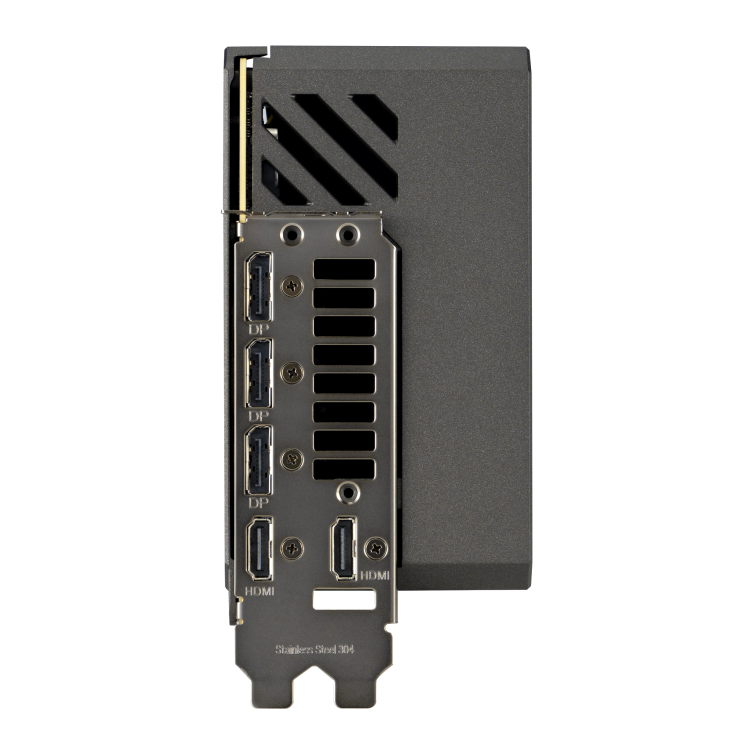

  • Interface

    Yes x 2 (Native HDMI 2.1b)

    Yes x 3 (Native DisplayPort 2.1b)

    HDCP Support Yes (2.3)

  • Maximum Display Support

    4

  • NVlink/ Crossfire Support
    No
  • ACCESSORIES

    1 x Speedsetup Manual
    1 x ROG Graphics Card Holder
    1 x ROG Velcro Hook & Loop
    1 x ROG Magnet
    1 x ROG Graphics Card Keycap
    1 x ROG PCB Ruler
    1 x Thank You Card
    1 x Adapter Cable (1 to 3)

  • Software

    ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

  • Dimensions

    357.6 x 149.3 x 76 mm
    14.1 x 5.9 x 3 inch

  • Recommended PSU

    850W

  • Power Connectors

    1 x 16-pin

  • Slot

    3.8 Slot

  • AURA SYNC

    ARGB

  • Note

    * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
    * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
    * Maximum Display Support is specifically applied to simultaneous display situation.
