PRO H610M-S WIFI DDR4

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 3200(MAX) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0
  • Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

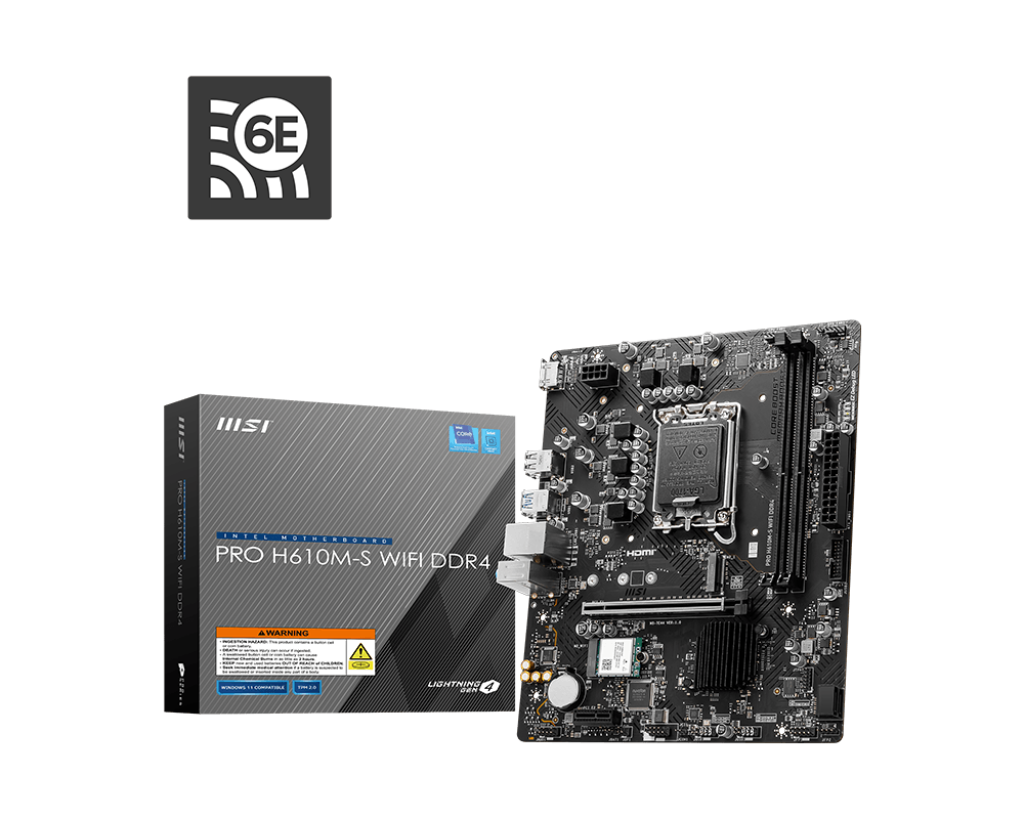

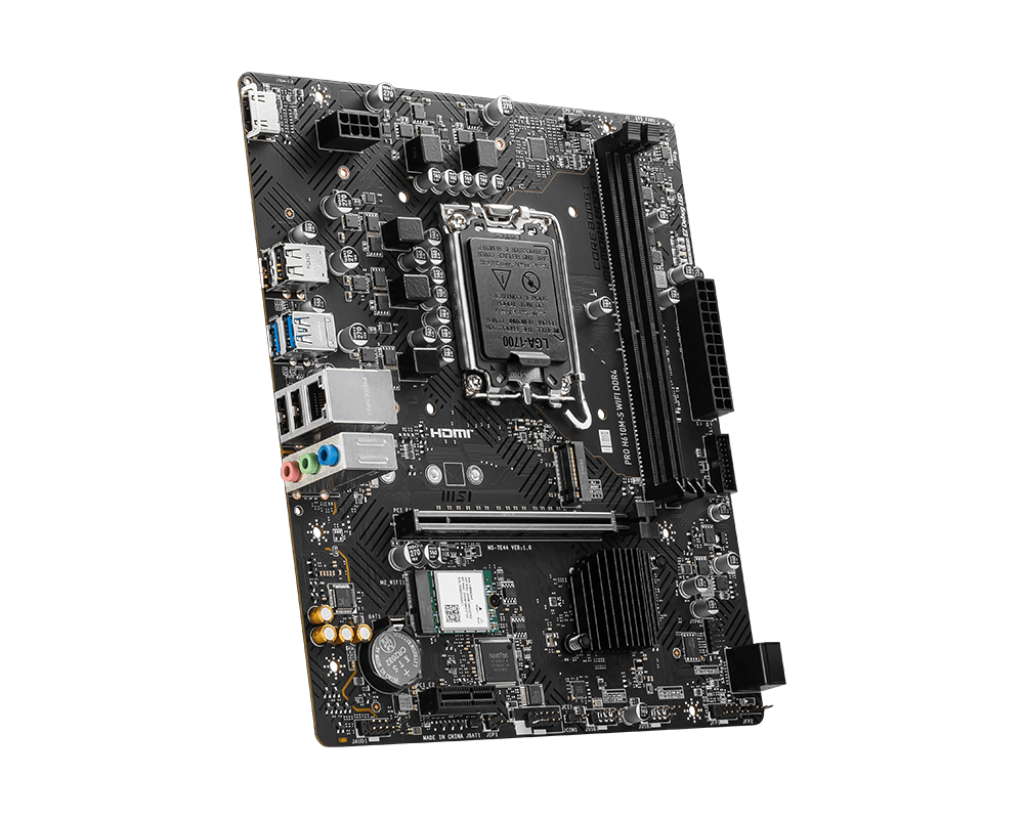

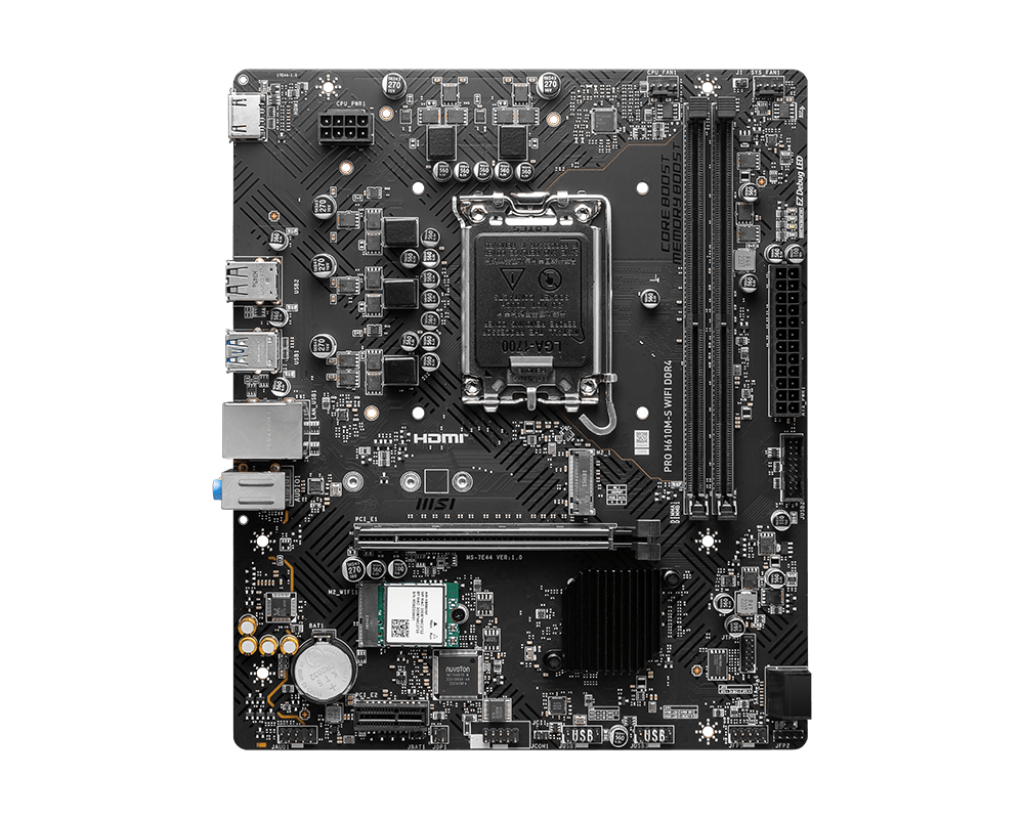

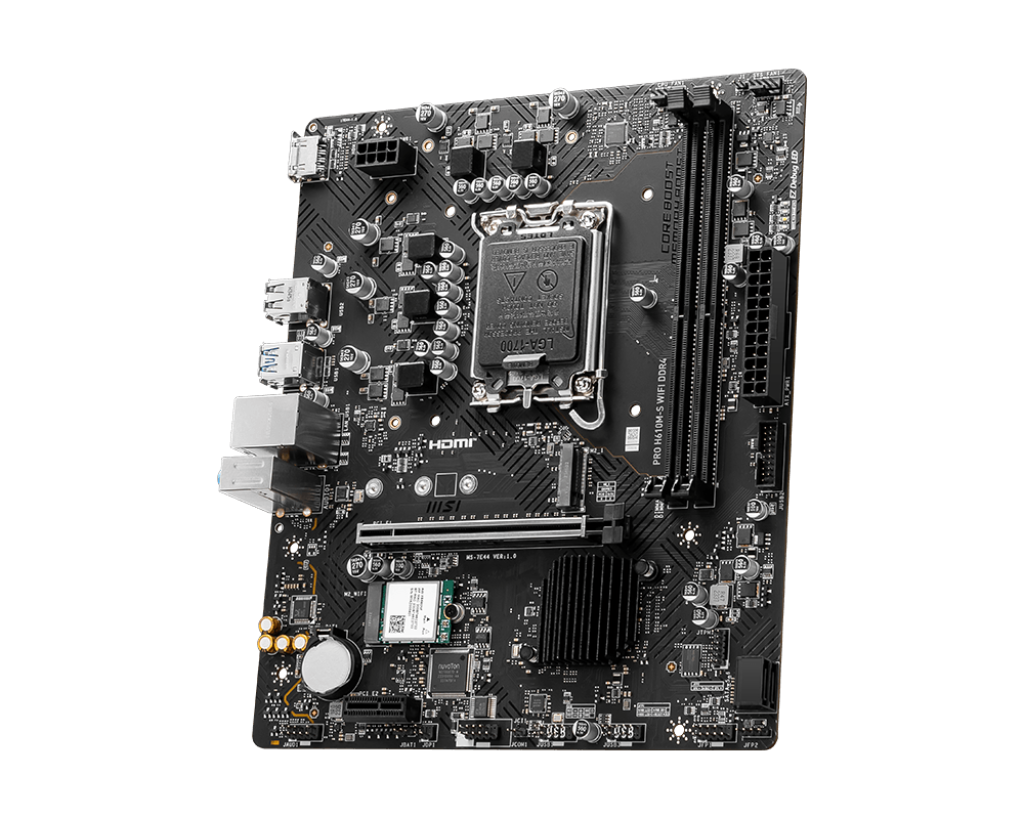

Product Image

Specifications

  • Chipset

    INTEL H610

  • CPU

    Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700

  • Memory

    2x DDR4, Maximum Memory Capacity 64GB
    Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory

  • Audio

    Realtek® ALC897 Codec
    7.1-Channel High Definition Audio

  • Storage

    1x M.2
    M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
    2x SATA 6G

  • LAN

    Realtek® RTL8111H Gigabit LAN

  • ONBOARD GRAPHICS

    1x HDMI™
    Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

  • Slot

    1x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

  • USB

    1x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

  • WIRELESS LAN & BLUETOOTH

    Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

  • INTERNAL IO

    1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    1x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports

  • LED FEATURE

    4x EZ Debug LED

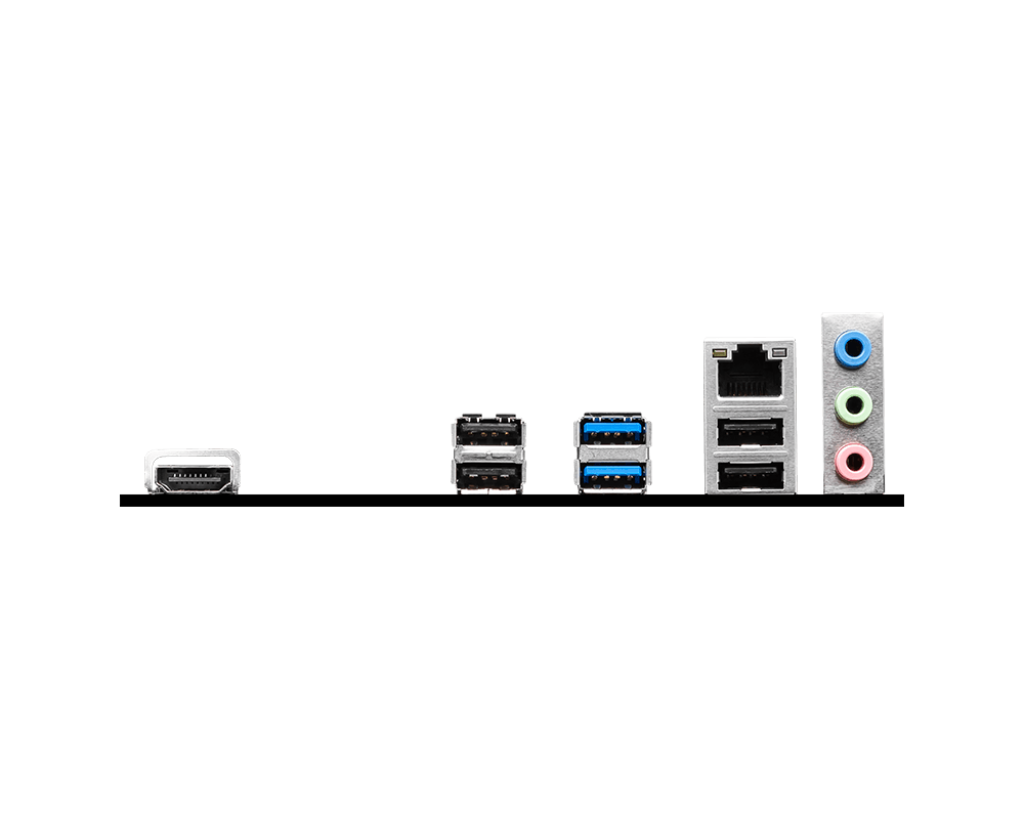

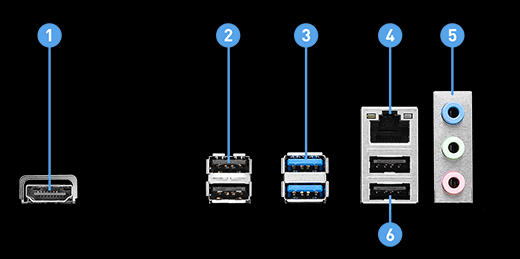

  • BACK PANEL PORTS

    1. HDMI™

    2. USB 3.2 Gen 1 5Gbps (Type-A)

    3. USB 2.0

    4. LAN port

    5. Audio Connectors

    6. USB 2.0


  • Operating System

    Support for Windows® 11 64-bit, Windows® 10 64-bit

  • PCB INFO

    mATX
    200mmx236.16mm

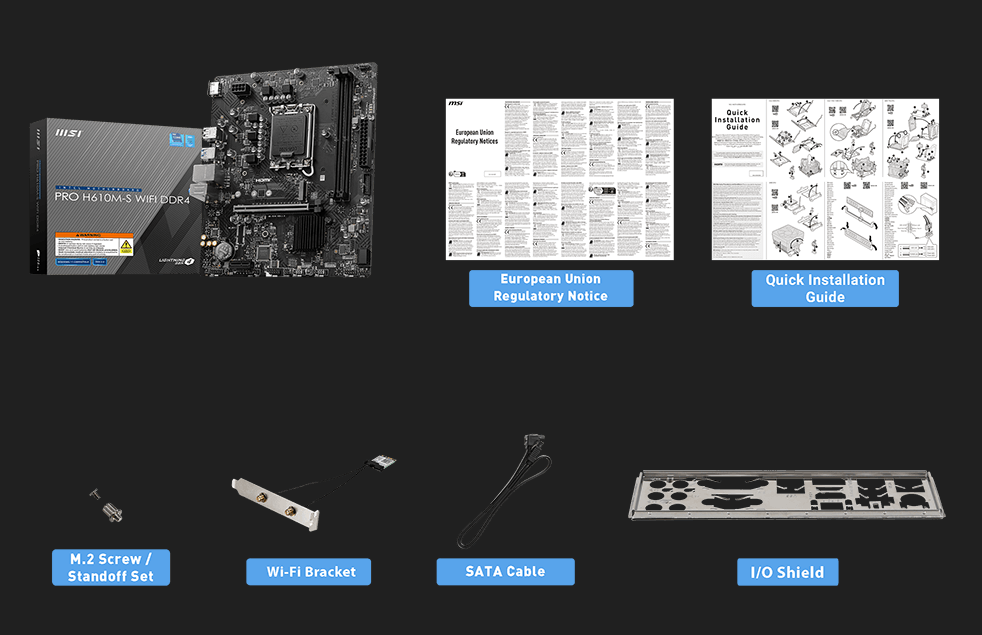

  • BOX CONTENT
