MPG GUNGNIR 300P AIRFLOW

  • One-piece 1mm perforated front panel, supporting dual 360mm AIO liquid cooler at front/top and push-pull setup.
  • Optimzed the airflow and enhance the airflow for M.2 SSD.
  • Fully support high-end graphics card no matter vertical or horizontal installation and also reserves enough space to ensure cooling and cable bending.
  • Omnidirectional graphics card stand can adjust in many ways to support different graphics card installation.
  • Patented DIY friendly design for easy to assemble.
  • 4 x 120mm, 1 x 80mm, 2 x 60mm PWM fans and PCIe 4.0 riser cable pre-installed.
  • E-ATX (280 x 305 mm), ATX, Micro-ATX and Mini-ITX motherboard & 360 mm GPU capacity.
  • 1 x USB 3.2 Gen 2x2 Type-C port (20Gbps) & 2 x USB 3.2 Gen 1 Type-A ports (5Gbps).

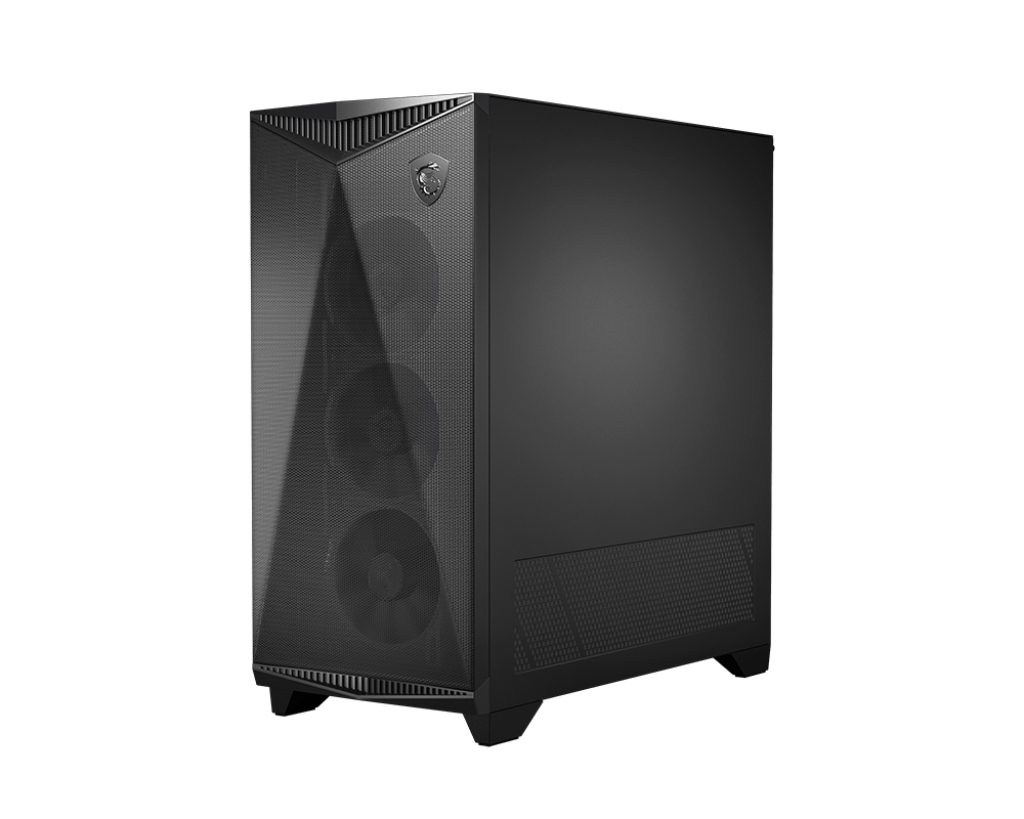

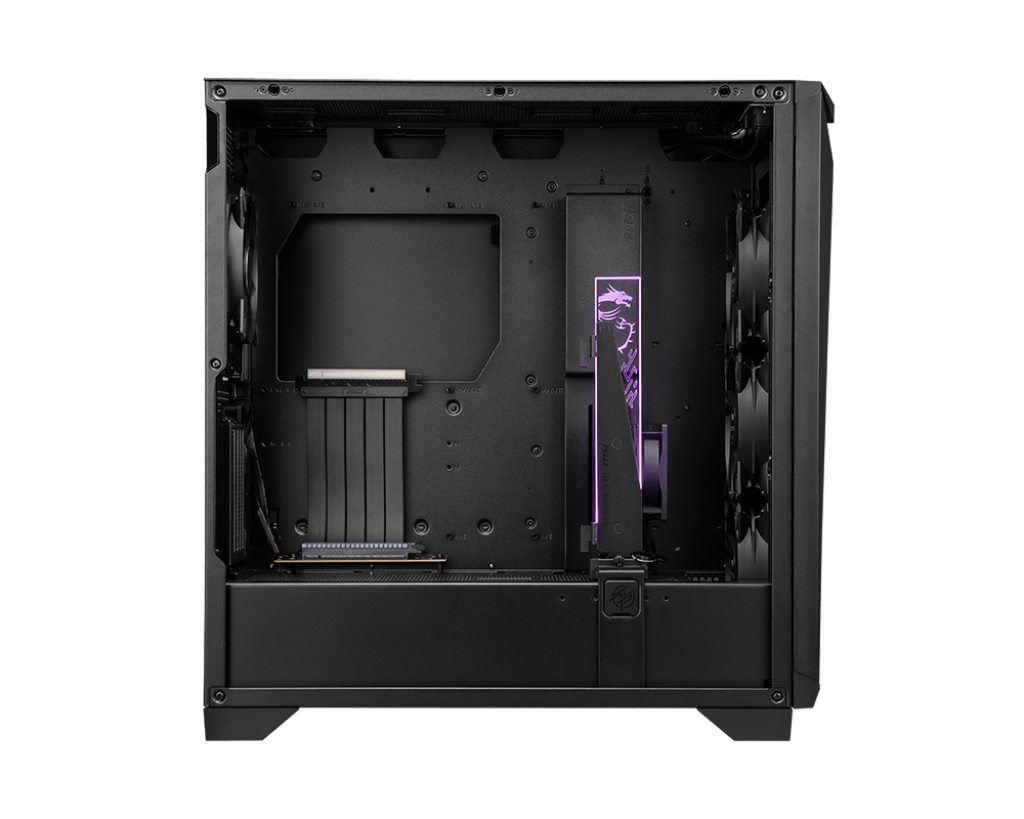

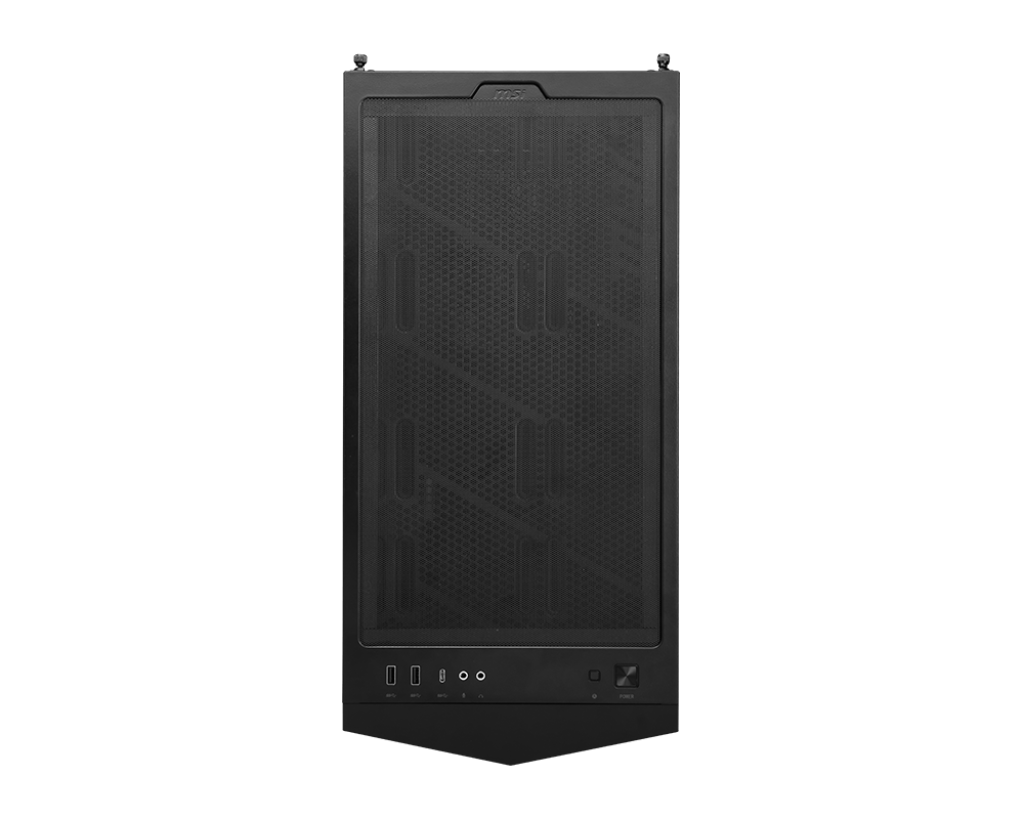

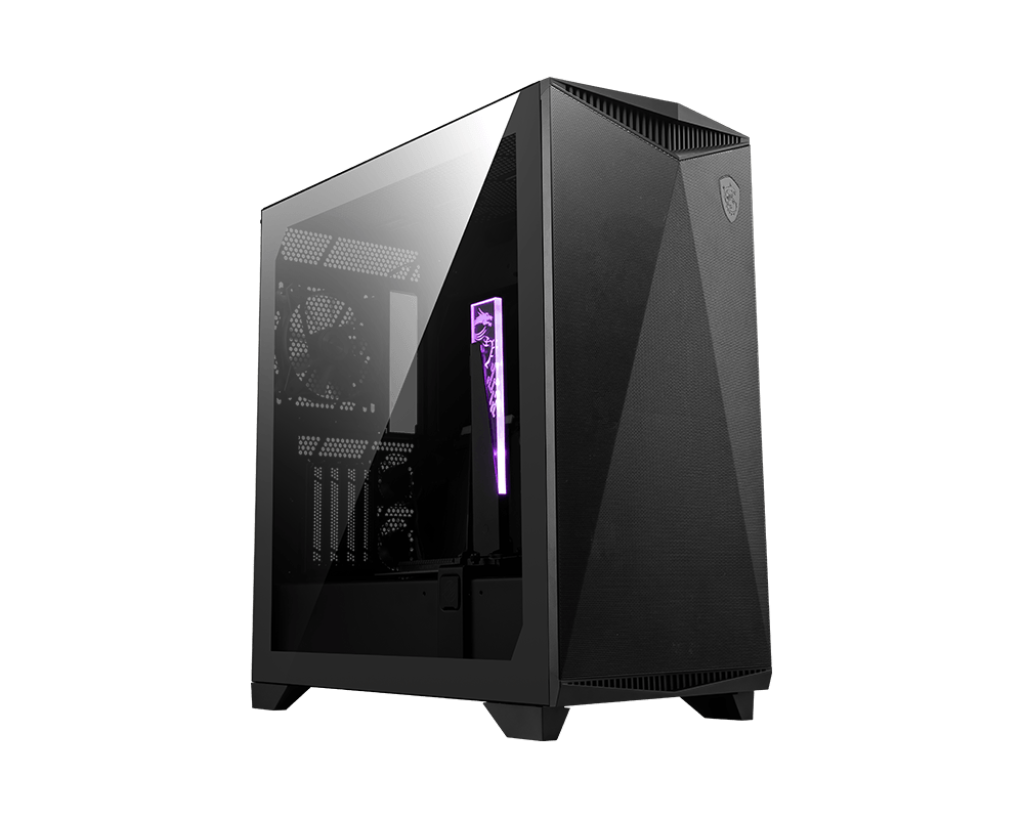

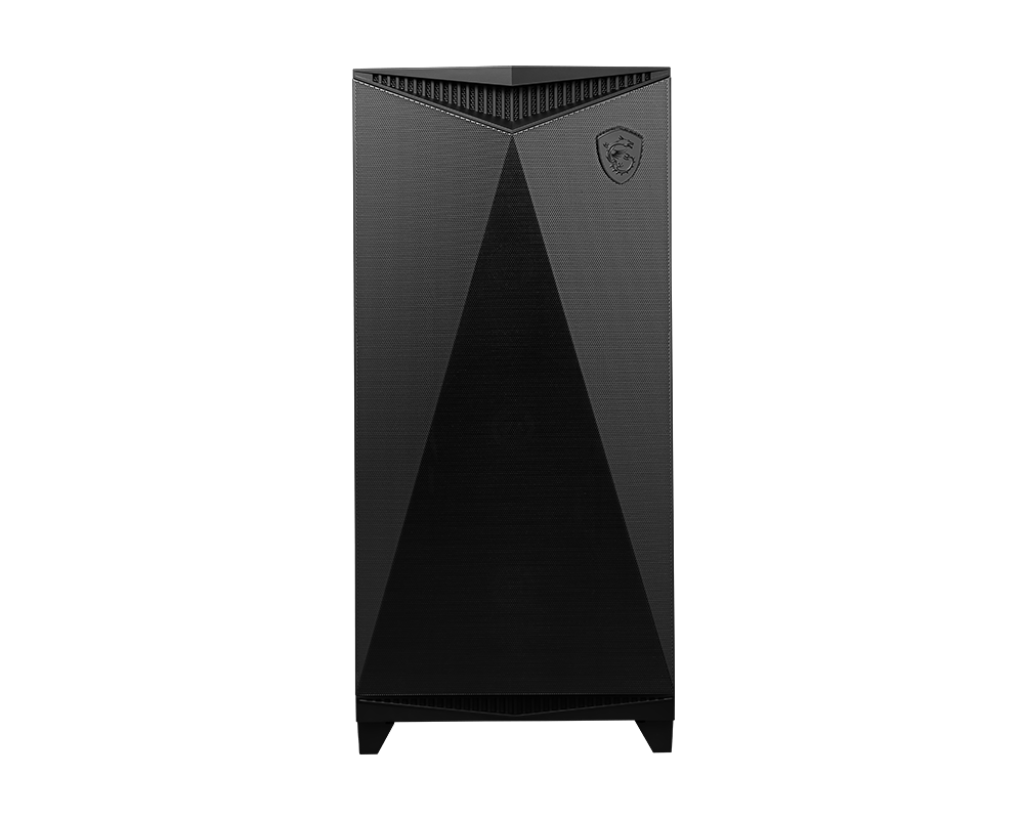

Product Image

Specifications

  • PRODUCT NAME

    MPG GUNGNIR 300P AIRFLOW

  • Case Form Factor

    Mid-Tower

  • MOTHERBOARD FORM FACTOR SUPPORT

    E-ATX(up to 280 x 305 mm)
    ATX / M-ATX / ITX

  • I/O Ports

    2 x USB 3.2 Gen 1 Type-A
    1 x USB 3.2 Gen 2x2 Type-C
    1 x Audio-out
    1 x Mic-in
    1 x Reset Button
    1 x Power Button

  • DRIVE MOUNT SUPPORT

    6 x 2.5”
    2 x 2.5” / 3.5”

  • Expansion Slots

    7

  • Maximum GPU Length

    360 mm / 14.17 inches

  • MAXIMUM CPU COOLER HEIGHT

    175 mm / 6.9 inches

  • POWER SUPPLY SUPPORT

    ATX

  • MAXIMUM PSU LENGTH

    Above 220mm

  • FAN SIZE SUPPORT

    Top: 3x 120 mm / 2x 140 mm
    Front: 3x 120 mm / 3x 140 mm
    Rear: 1x 120 mm / 1x 140 mm
    Side: NA
    PSU Shroud: 2x 120 mm
    Vertical GPU bracket: 2 x 60mm (thickness: 15mm)
    Cable Cover: 1 x 80mm / 1 x 120mm

  • PRE-INSTALLED FAN SIZE

    Front: 3 x 120mm
    Rear: 1 x 120mm
    Vertical GPU bracket: 2 x 60mm
    Cable Cover: 1 x 80mm

  • PRE-INSTALLED FAN TYPE

    Front: 3 x PWM BLACK Fan
    Rear: 1 x PWM BLACK Fan
    Vertical GPU bracket: 2 x 60 PWM BLACK Fan
    Cable Cover: 1 x 80 PWM BLACK Fan

  • RADIATOR SIZE SUPPORT

    Top: 120 / 140 / 240 / 280 / 360 mm
    Front: 120 / 140 / 240 / 280 / 360 mm
    Rear: 120 / 140 mm
    Side: NA
    Bottom: NA

  • DIMENSIONS (DXWXH)

    505 x 235 x 510 mm / 19.88 x 9.25 x 20.08 inches

  • NET WEIGHT

    10.9 kg / 24.03 lbs

  • GROSS WEIGHT

    13.2 kg / 29.1 lbs

  • CONNECTIONS

    1. 2 x USB 3.2 Gen 1 Type-A

    2. 1 x USB 3.2 Gen 2x2 Type-C

    3. Mic-In

    4. Audio-Out

    5. Reset Button

    6. Power Button
