PRIME H610M-K D4-CSM

Specifications

• Model

  PRIME H610M-K D4-CSM

• News & Updates

  2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the stability of Intel Core 13th and 14th Gen desktop processors is now available. Please visit support site for the latest BIOS updates.

• CPU

  Intel^® Socket LGA1700 for Intel^® Core^™ 14^th & 13^th Gen Processors, Intel^® Core^™ 12^th Gen, Pentium^® Gold and Celeron^® Processors*
  Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**
  * Refer to www.asus.com for CPU support list.
  ** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

  Intel^® H610 Chipset

• Memory

  2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

  Dual Channel Memory Architecture

  Supports Intel^® Extreme Memory Profile (XMP)

  * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

• Graphics

  1 x D-Sub port

  1 x HDMI^® port**

  * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

  ** Supports 4K@60Hz as specified in HDMI 2.1.

• Expansion Slots

  Intel^® Core^™ Processors (14^th & 13^th & 12^th Gen)

  1 x PCIe 4.0 x16 slot

  Intel^® H610 Chipset

  1 x PCIe 3.0 x1 slot

• Storage

  Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

  Intel^® H610 Chipset

  M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

  4 x SATA 6Gb/s ports

  * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

• Ethernet

  1 x Realtek 1Gb Ethernet

• USB

  Rear USB (Total 6 ports)

  2 x USB 3.2 Gen 1 ports (2 x Type-A)

  4 x USB 2.0 ports (4 x Type-A)

  Front USB (Total 4 ports)

  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

  1 x USB 2.0 header supports additional 2 USB 2.0 ports

• Audio

  Realtek 7.1 Surround Sound High Definition Audio CODEC*

  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

  - Supports up to 24-Bit/192 kHz playback

  Audio Features

  - Audio Shielding

  - Dedicated audio PCB layers

  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

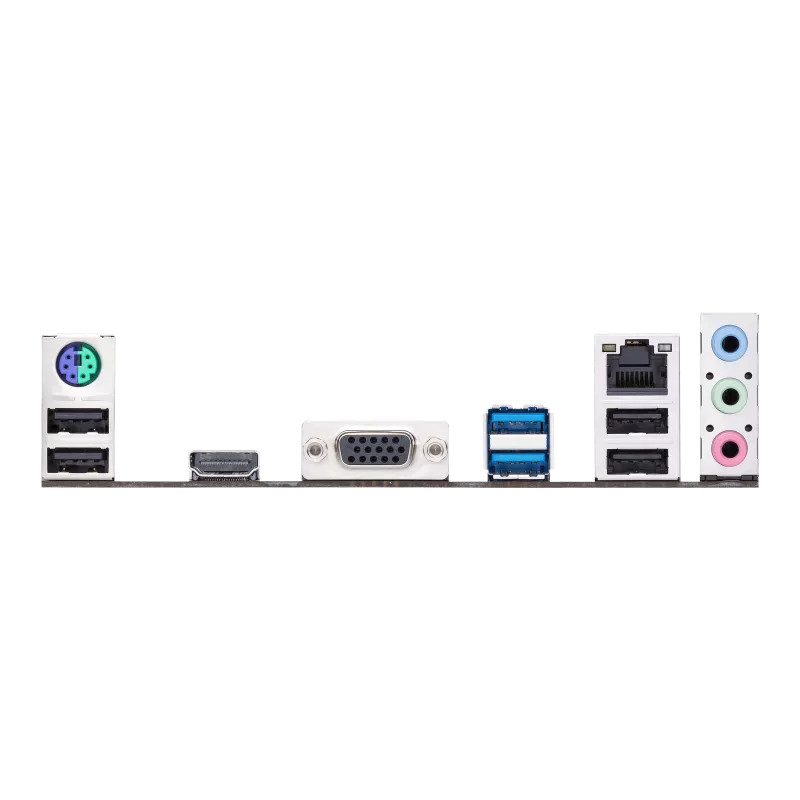

• Back Panel I/O Ports

  2 x USB 3.2 Gen 1 ports (2 x Type-A)

  4 x USB 2.0 ports (4 x Type-A)

  1 x D-Sub port

  1 x HDMI^® port

  1 x Realtek 1Gb Ethernet port

  3 x Audio jacks

  1 x PS/2 Keyboard/Mouse combo port

• Internal I/O Connectors

  Fan and Cooling related

  1 x 4-pin CPU Fan header

  1 x 4-pin Chassis Fan header

  Power related

  1 x 24-pin Main Power connector

  1 x 8-pin +12V Power connector

  Storage related

  1 x M.2 slot (Key M)

  4 x SATA 6Gb/s ports

  USB

  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

  1 x USB 2.0 header supports additional 2 USB 2.0 ports

  Miscellaneous

  1 x RGB header

  1 x Clear CMOS header

  1 x COM Port header

  1 x Front Panel Audio header (AAFP)

  1 x S/PDIF Out header

  1 x Speaker header

  1 x SPI TPM header (14-1pin)

  1 x 10-1 pin System Panel header

• Special Features

  ASUS 5X PROTECTION III

  - DIGI+ VRM

  - LANGuard

  - Overvoltage Protection

  - SafeSlot Core

  - Stainless-Steel Back I/O

  ASUS Q-Design

  - Q-DIMM

  - Q-Slot

  ASUS Thermal Solution

  - Aluminum heatsink design

  ASUS Lighting Control

  - RGB header

• Software Features

  ASUS Exclusive Software

  Armoury Crate

  AI Suite 3

  - Performance And Power Saving Utility

  TurboV EVO

  EPU

  DIGI+ VRM

  Fan Xpert

  ASUS CPU-Z

  IT Management software supported

  - ASUS Control Center Express(ACCE)

  Norton Anti-virus software (Free Trial version)

  WinRAR

  UEFI BIOS

  ASUS EZ DIY

  - ASUS CrashFree BIOS 3

  - ASUS EZ Flash 3

  - ASUS UEFI BIOS EZ Mode




• BIOS

  128 Mb Flash ROM, UEFI AMI BIOS

• Manageability

  WOL by PME, PXE

• Accessories

  Cables

  2 x SATA 6Gb/s cables

  Miscellaneous

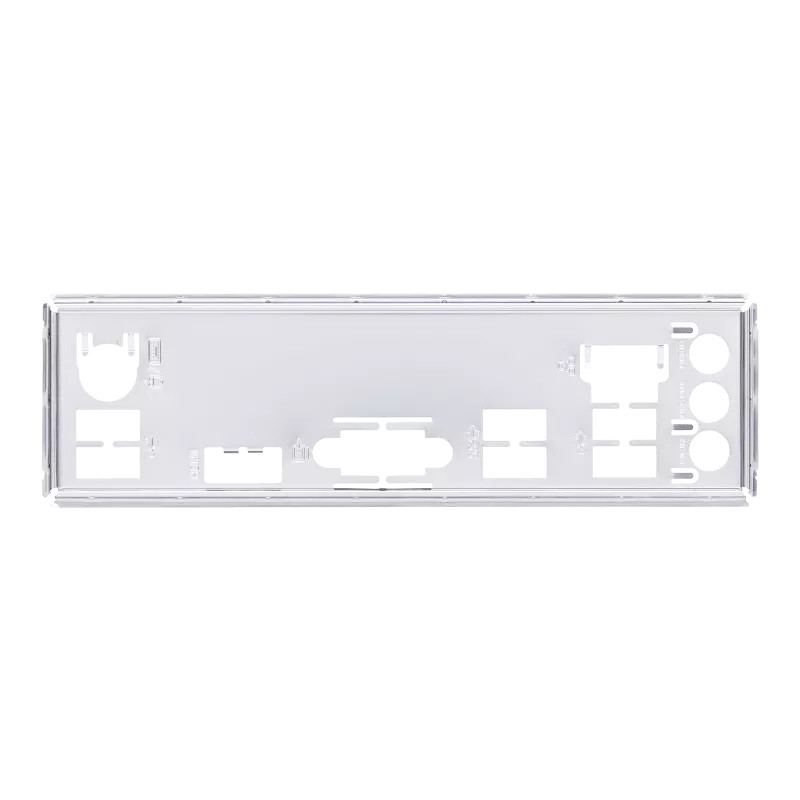

  1 x I/O Shield

  1 x M.2 ANCHOR

  Installation Media

  1 x Support DVD

  Documentation

  1 x ACC Express Activation Key Card

  1 x User Guide

• Operating System

  Windows^® 11 64-bit, Windows^® 10 64-bit

• Form Factor

  mATX Form Factor

  9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
