MAG SHIELD M301
Overview
Specifications

MAG SHIELD M301

  • Micro-ATX Tower gaming PC case that supports Micro-ATX / Mini ITX.
  • Support ATX power supply
  • Storage layout that support up to 1x 2.5" and 1x 3.5"

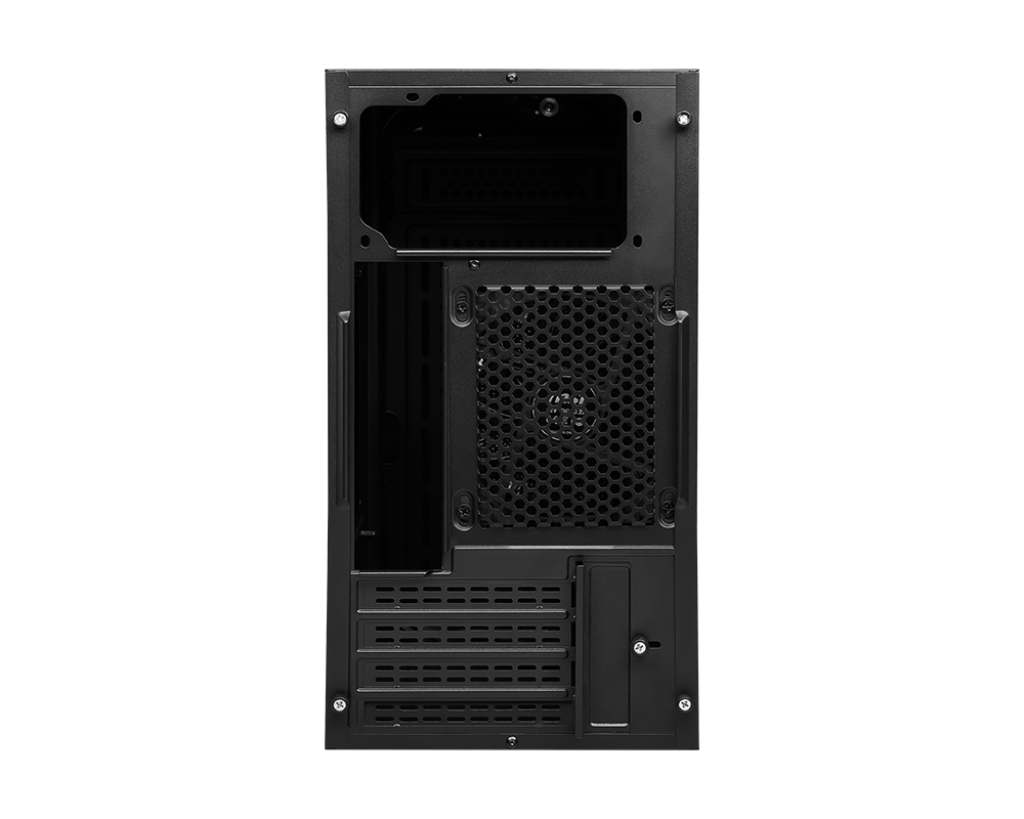

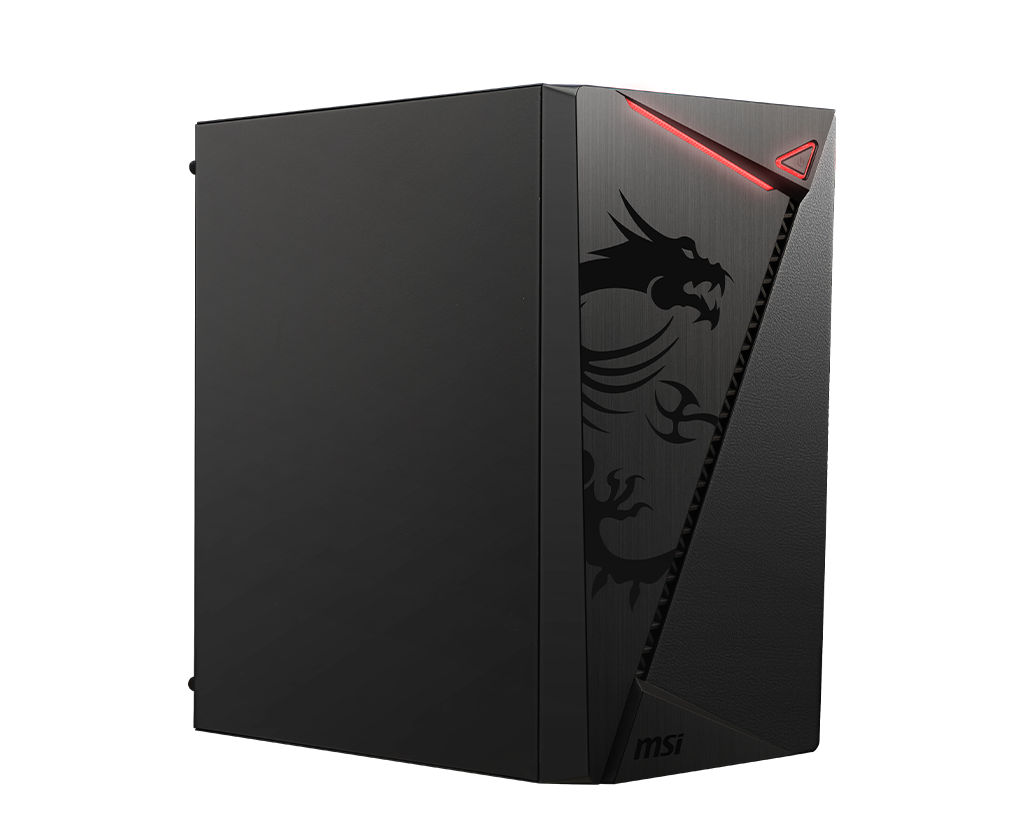

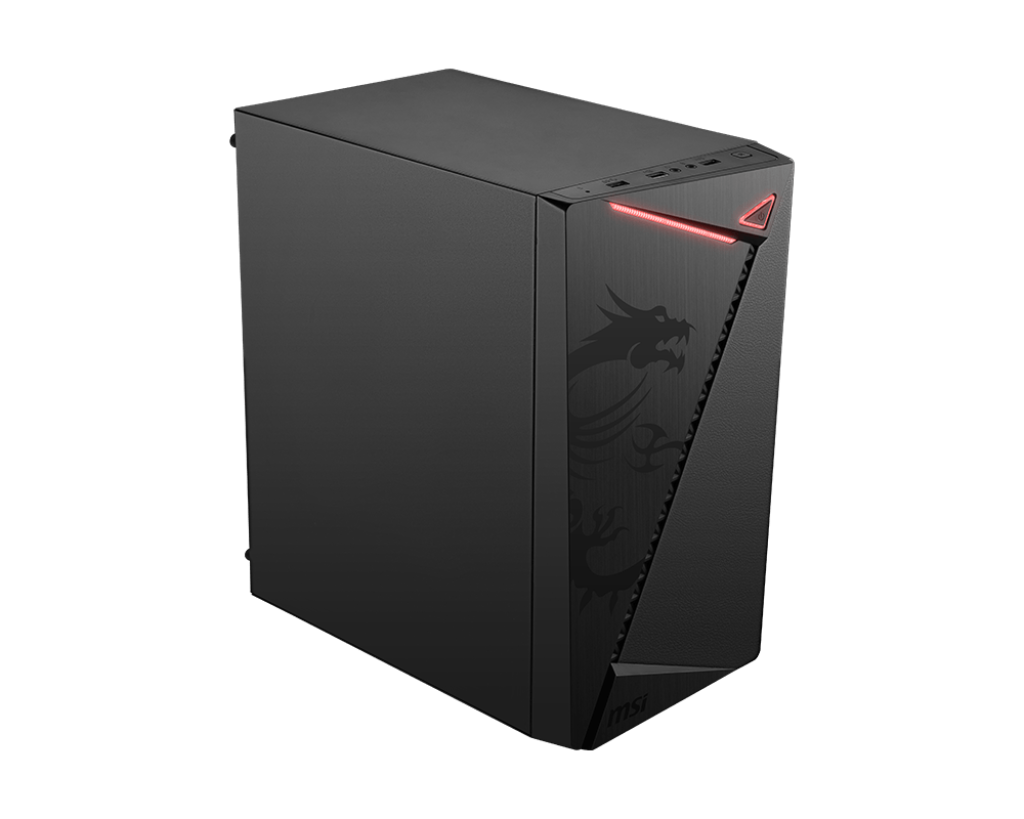

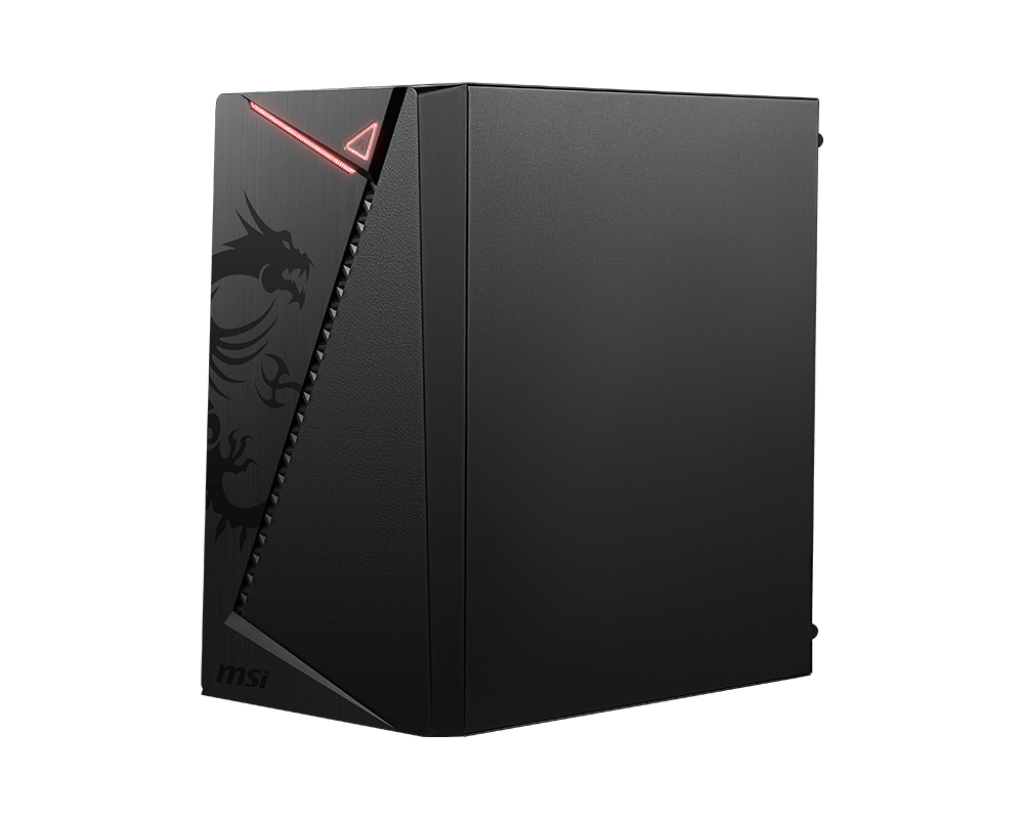

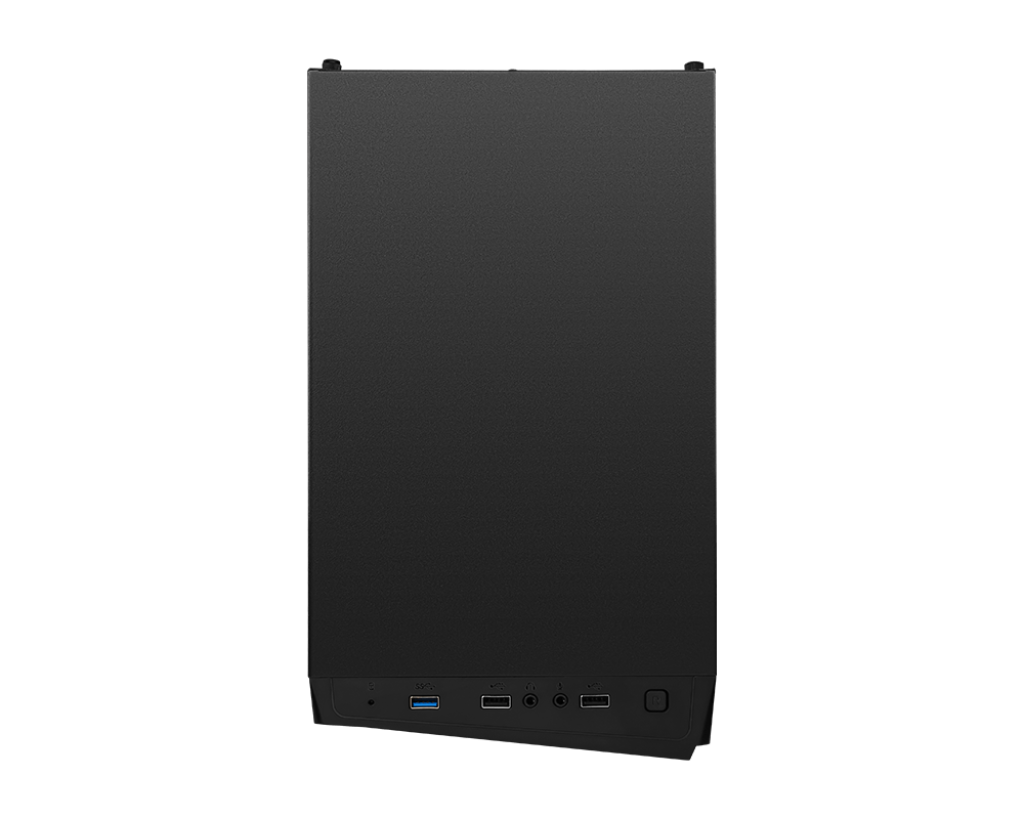

Product Image

Specifications

  • PRODUCT NAME

    MAG SHIELD M301

  • Form Factor

    Micro ATX-Tower

  • Support MB Form Factor

    Micro-ATX / Mini-ITX

  • DRIVE BAYS

    1x 2.5”
    1x 3.5”

  • Dimensions

    345 x 206 x 352 mm / 13.58 x 8.11 x 13.86 inches

  • Weight

    2.28 kg / 5.03 lbs

  • I/O Ports

    2x USB 1.0 Type-A
    1x USB 3.2 Gen 1 Type-A
    1x Audio
    1x Mic

  • CASE EXPANSION SLOTS

    4

  • PRE-INSTALL FAN

    Rear: 1x 120 mm fan

  • MAXIMUM PSU LENGTH

    150mm / 5.91 inches

  • Maximum GPU Length

    250mm / 9.84 inches

  • Maximum CPU Cooler Length

    160 mm / 6.3 inches

  • Radiator Layout

    Rear: 1x 120 mm

  • LIGHTNING

    Rear: 1x Non-LED fan

  • Power Supply

    ATX

  • GROSS WEIGHT

    3.12 kg / 6.88 lbs

  • CONNECTIONS

    1. 1x USB 3.2 Gen 1 Type-A

    2. 1x USB 1.0 Type-A

    3. 1x Audio-out / Mic-in

    4. 1x USB 1.0 Type-A

    5. Reset Button

    6. Power Button
