MAG PANO 130R PZ BLACK

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

  • Support Back-Connect Motherboard: Supports ATX and Micro-ATX Back-Connect PROJECT ZERO motherboards, simplifying cable management for a clean, clutter-free, and aesthetically pleasing setup.
  • Upgrade Airflow Layout: This model supports up to 10 fans and 360 mm radiator on top and side. The lower chamber also surrounded by vents further enhance heat dissipation for optimal performance.
  • Rotatable GPU Bracket: One bracket, two orientations. A quick 90° rotation allows quick switching between horizontal and vertical GPU installations.
  • Dust Filter: Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup.
  • Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side allow the unobstructed display of the ARGB fan's beauty without interference.

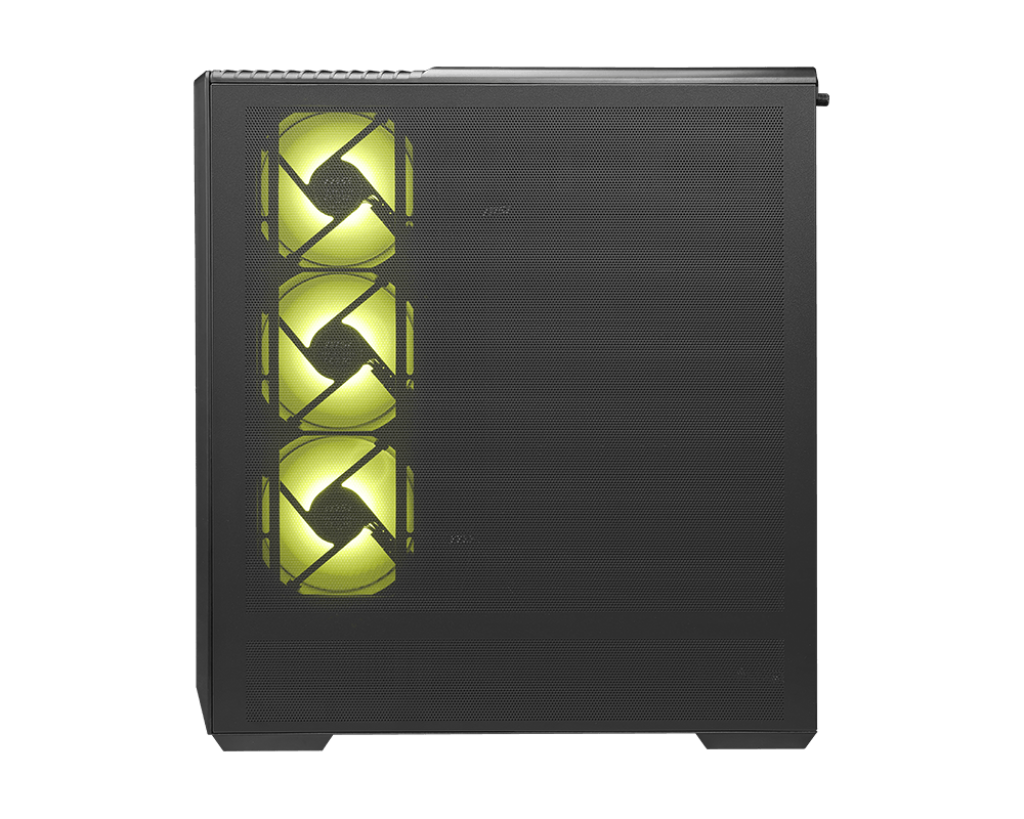

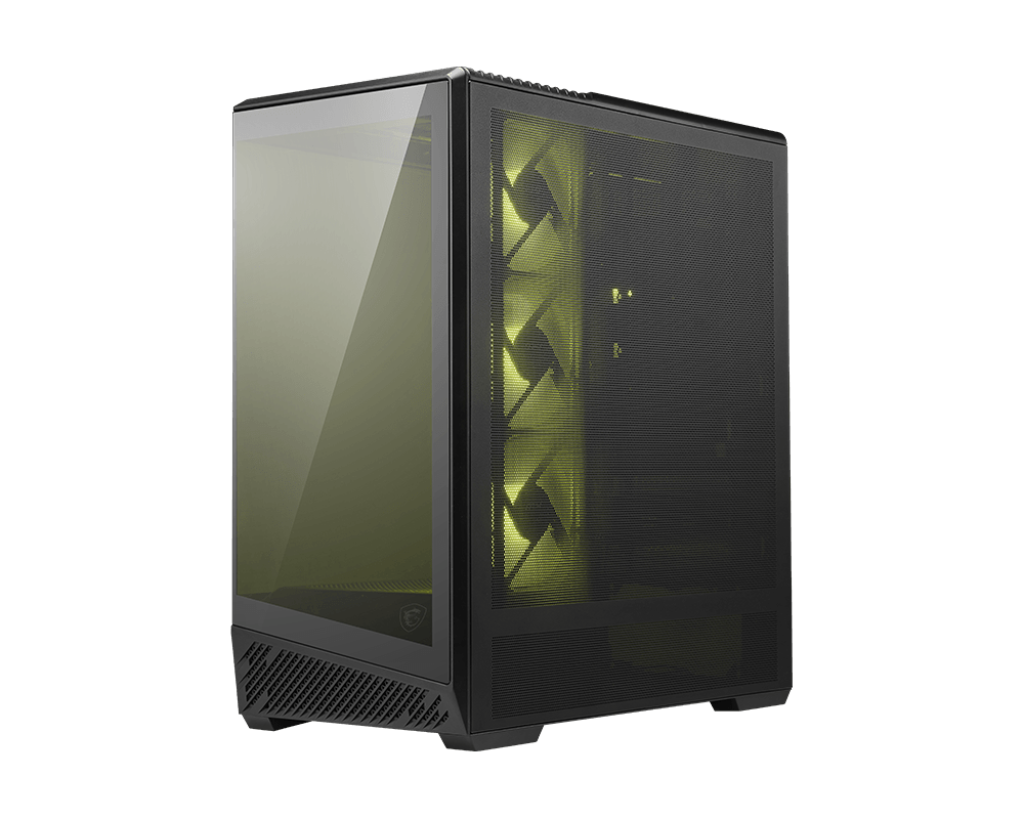

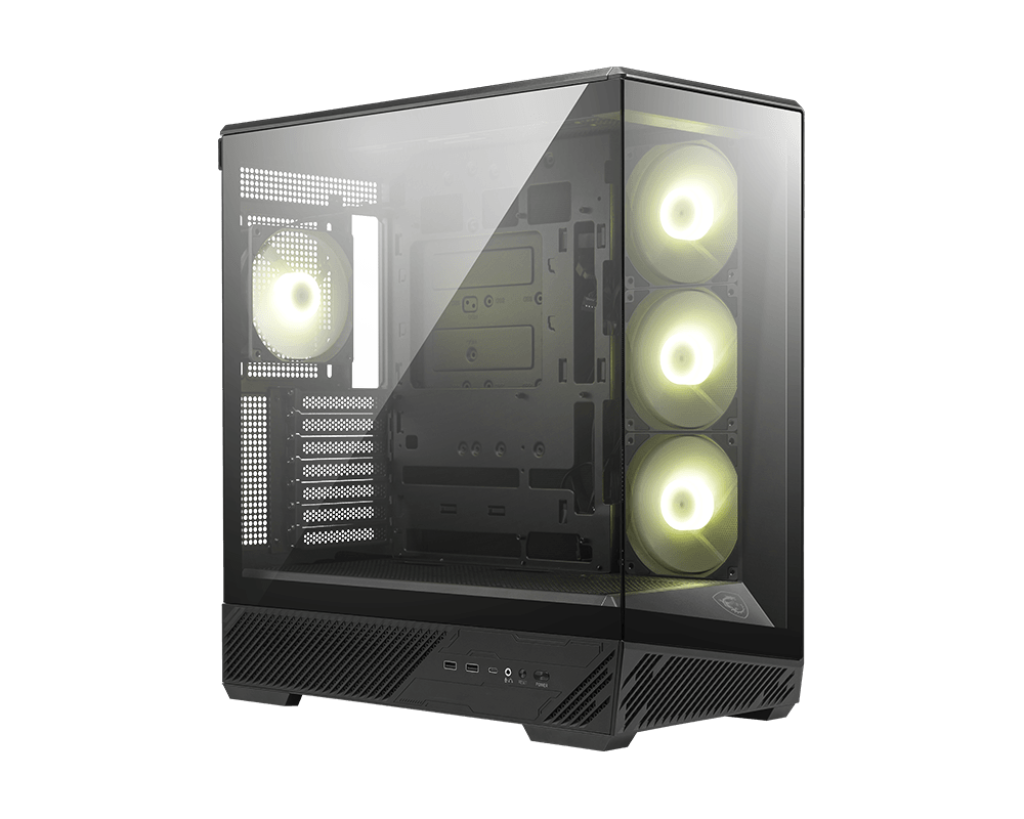

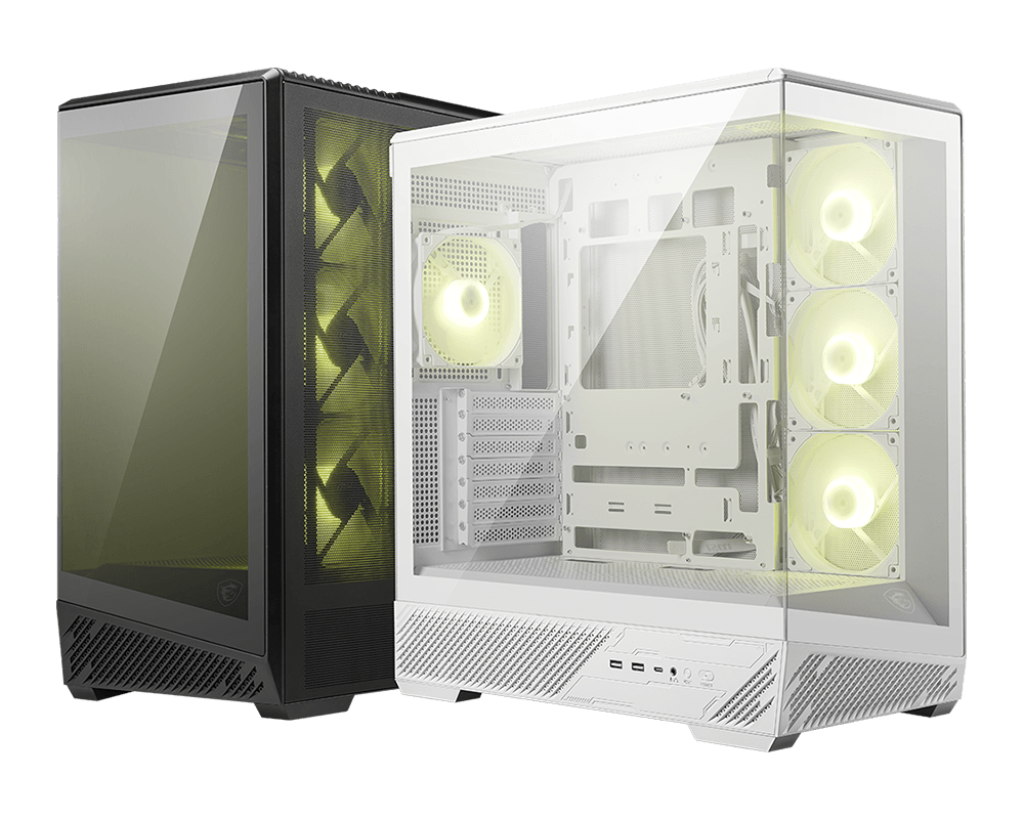

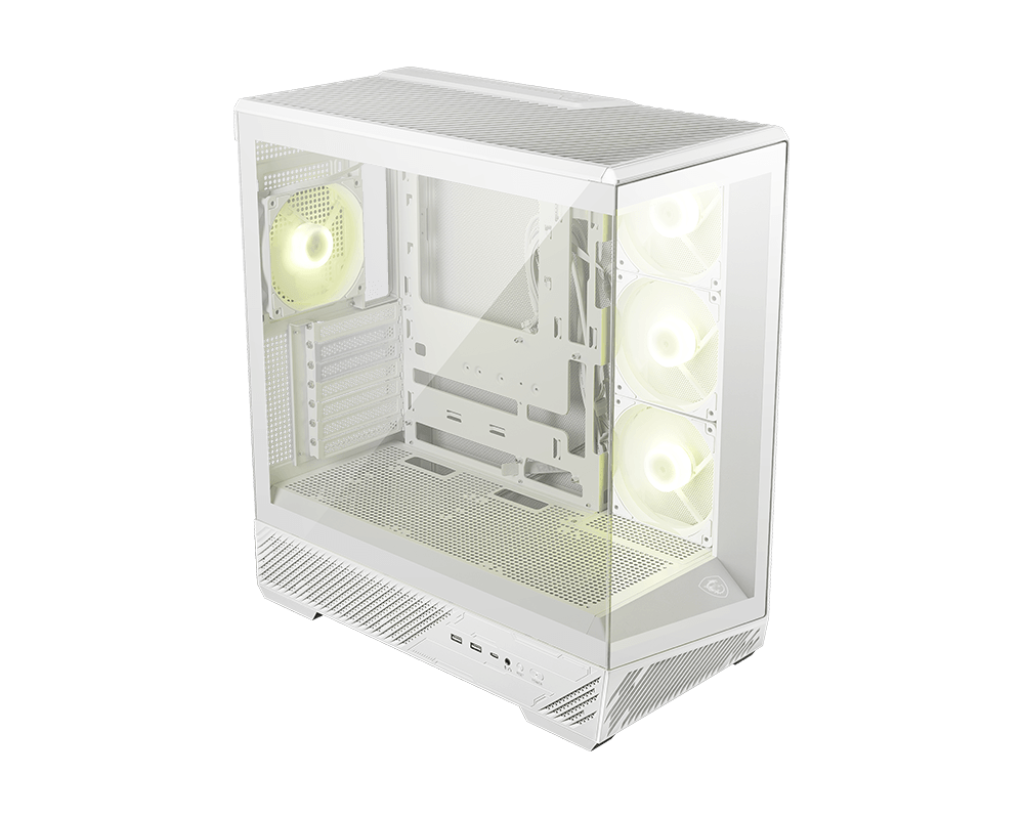

Product Image

Specifications

  • PRODUCT NAME

    MAG PANO 130R PZ

  • Case Form Factor

    Mid-Tower

  • MOTHERBOARD FORM FACTOR SUPPORT

    Regular:
    ATX / Micro-ATX / Mini-ITX

    Back-connect:
    ATX / Micro-ATX

  • I/O Ports

    2 x USB 5Gbps (Type-A)
    1 x USB 20Gbps (Type-C)
    1 x Audio-Out / Mic-in
    1 x Reset Button
    1 x Power Button

  • DRIVE MOUNT SUPPORT

    Up to 3 x 2.5” SSD
    Up to 2 x 3.5” HDD
    (Maximum of 3 drives can be mounted at once, depending on configuration)

  • Expansion Slots

    7

  • Maximum GPU Length

    400 mm / 15.75 inches

  • MAXIMUM CPU COOLER HEIGHT

    165 mm / 6.50 inches

  • POWER SUPPLY SUPPORT

    ATX

  • MAXIMUM PSU LENGTH

    180 mm / 7.09 inches

  • Fan Size Support

    Top: 3 x 120 mm / 2 x 140 mm
    Front: N/A
    Rear: 1 x 120 mm
    Side: 3 x 120 mm
    Bottom: 3 x 120 mm (Above the power shroud)

  • PRE-INSTALLED FAN TYPE

    Rear: 1 x 120 mm ARGB Fan
    Side: 3 x 120 mm ARGB Fan (Reverse Blade Fan)

  • RADIATOR SIZE SUPPORT

    Top: 120 / 140 / 240 / 280 / 360 mm
    Front: N/A
    Rear: 120 mm
    Side: 120 / 240 / 360 mm
    Bottom: N/A

  • DIMENSIONS (DXWXH)

    460 x 232 x 490 mm / 18.11 x 9.25 x 19.29 inches

  • Net Weight

    Black: 8.37 kg / 18.45 lbs
    White: 8.37 kg / 18.45 lbs

  • GROSS WEIGHT

    Black: 10 kg / 22.04 lbs
    White: 10 kg / 22.04 lbs

  • CONNECTION

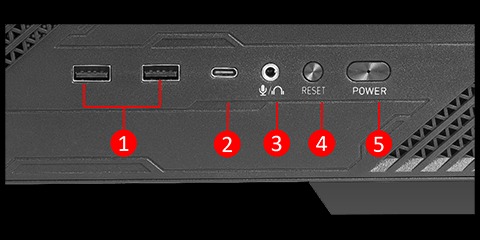

    msi io images

    1. 2 x USB 5Gbps (Type-A)
    2. 1 x USB 20Gbps (Type-C)
    3. 1 x Audio-Out / Mic-in
    4. 1 x Reset Button
    5. 1 x Power Button
