MAG FORGE 120A AIRFLOW

  • Supports up to 240 mm AIO liquid cooler and latest 40 series GPUs.
  • Supports up to 8 x system fans configuration, providing ventilation and stable performance to the whole system.
  • Built-in Auto-RGB fans, providing striking lighting effects.
  • Tempered Glass Side Panel displays RGB lighting.
  • The Magnetic Dust Filter on the top vents being easily remove for cleaning.
  • Lighting On and Off is only one click by the LED On/Off button.

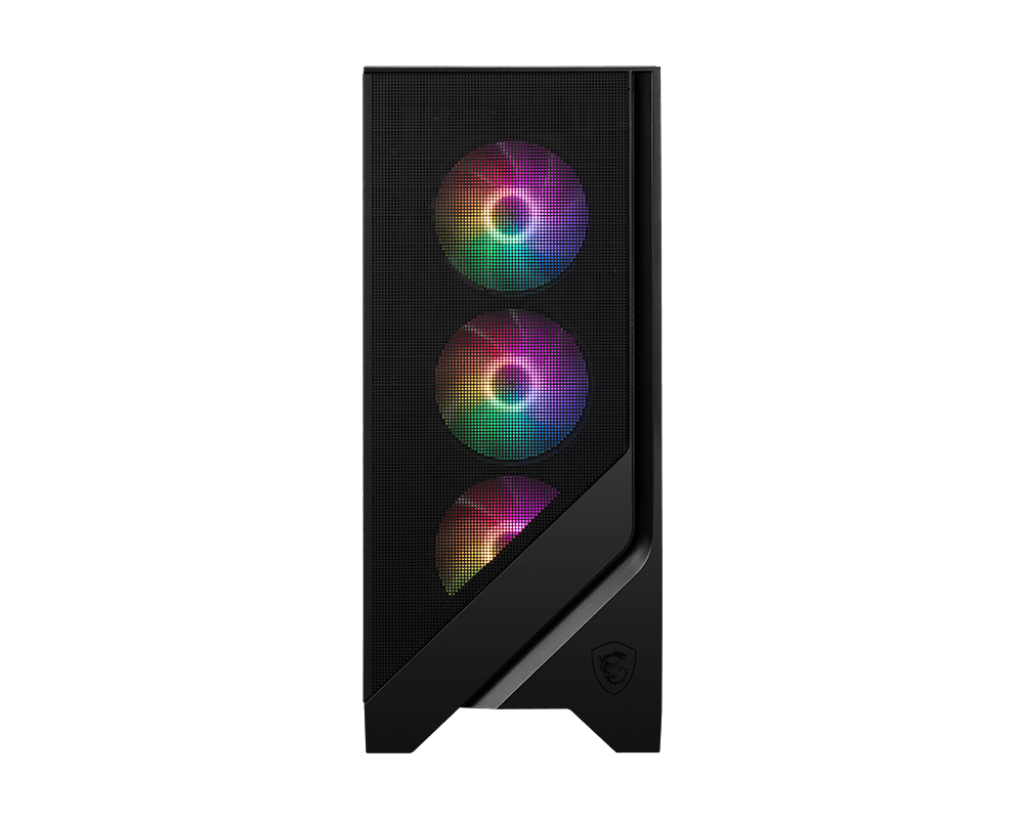

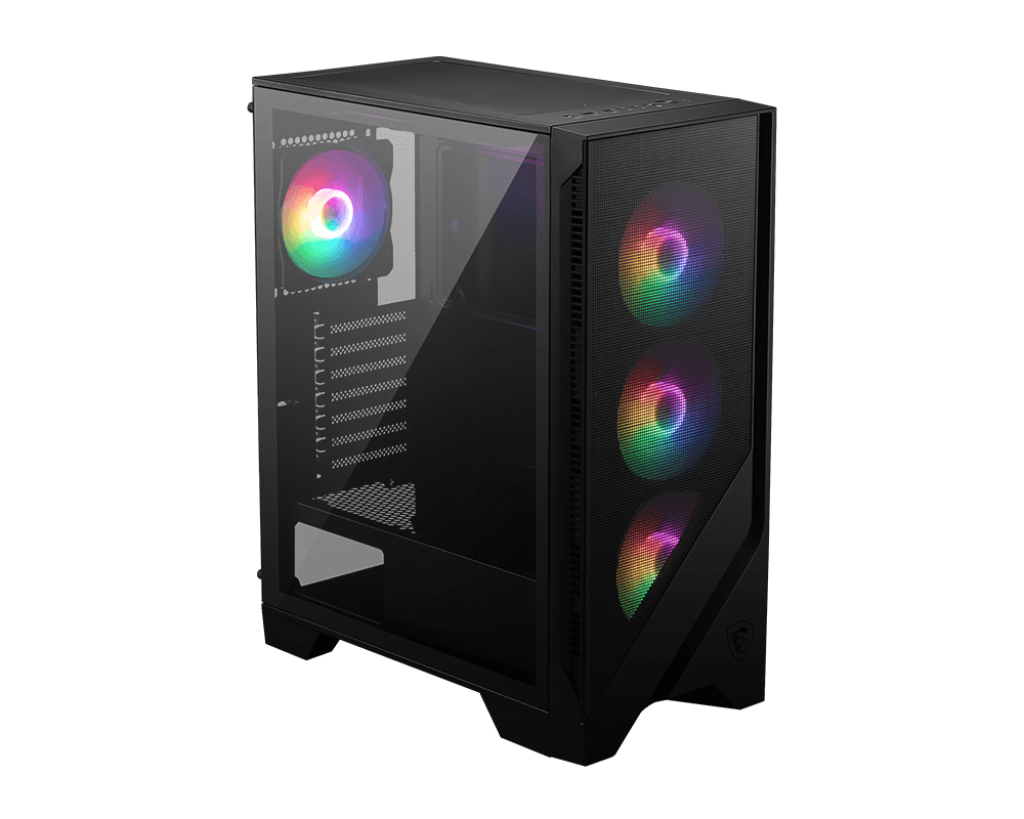

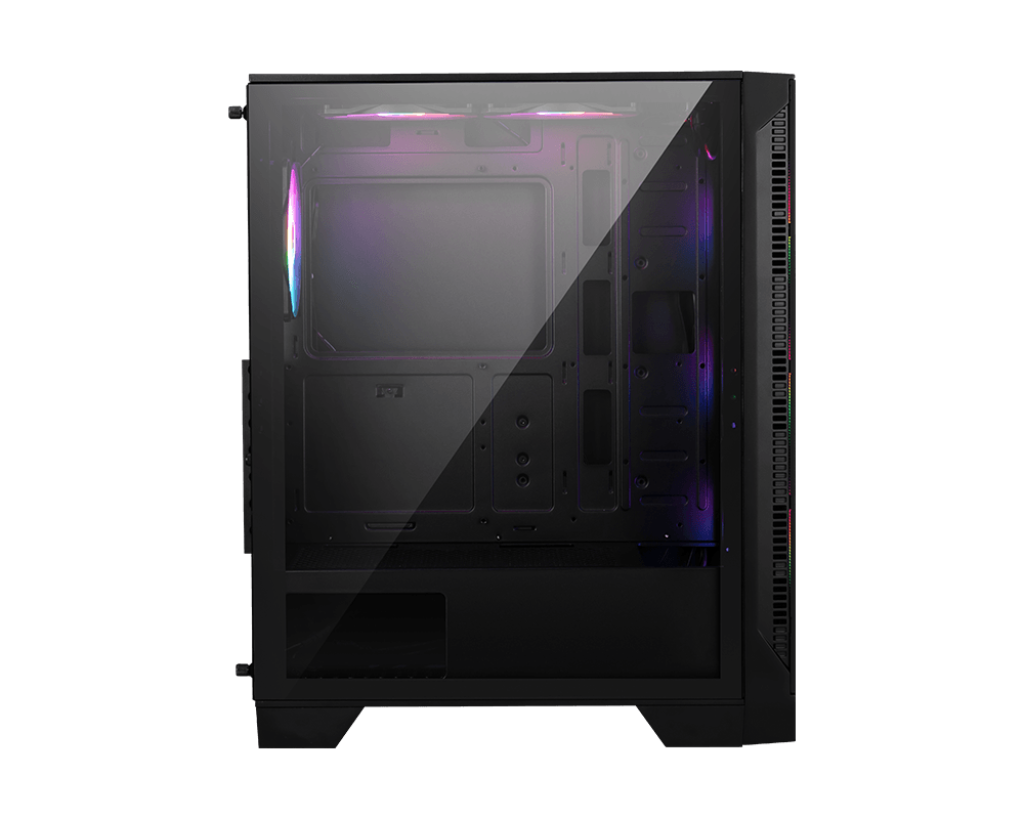

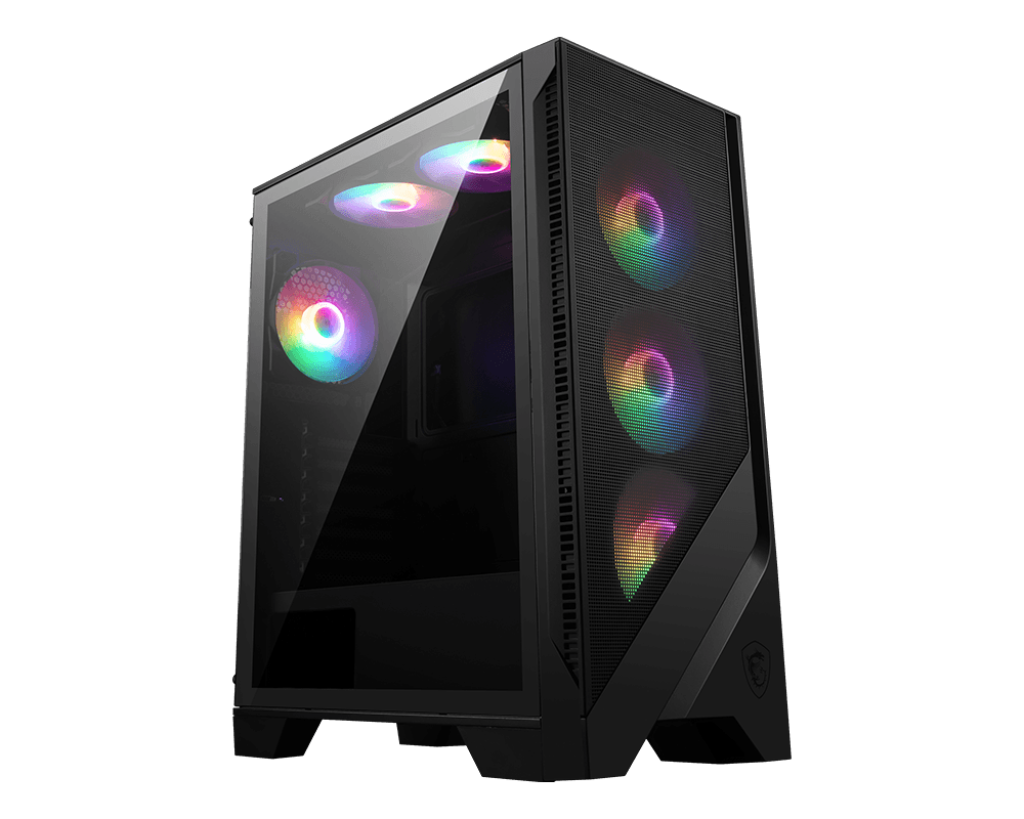

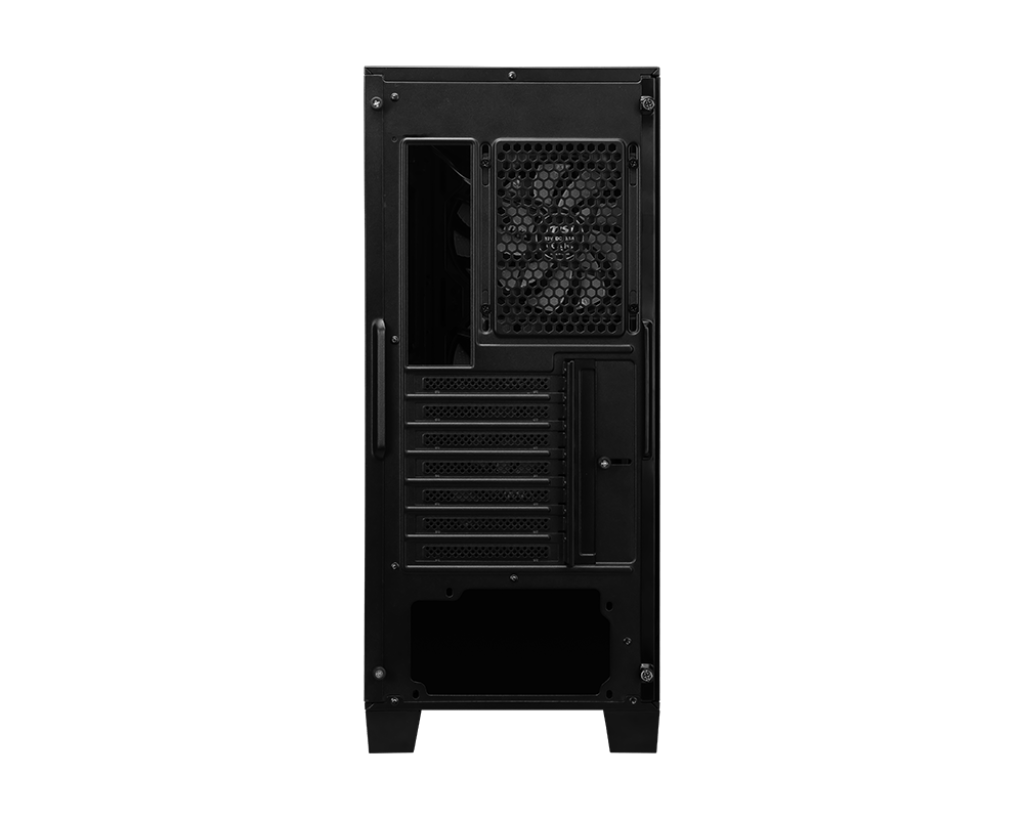

Product Image

Specifications

  • PRODUCT NAME

    MAG FORGE 120A AIRFLOW

  • Case Form Factor

    Mid Tower

  • MOTHERBOARD FORM FACTOR SUPPORT

    ATX / Micro-ATX / Mini-ITX

  • I/O Ports

    2 x USB 3.2 Gen 1 Type-A
    1 x Audio
    1 x Mic
    1 x LED On/Off button
    1 x Reset button

  • DRIVE MOUNT SUPPORT

    3 x 2.5"
    2 x 2.5" / 3.5"

  • EXPANSION SLOTS

    7

  • Maximum GPU Length

    330 mm / 12.99 inches

  • MAXIMUM CPU COOLER HEIGHT

    160 mm / 6.29 inches

  • POWER SUPPLY SUPPORT

    ATX

  • MAXIMUM PSU LENGTH

    200 mm / 7.87 inches (without 2.5"/3.5" HDD tray installation)

  • Fan Size Support

    Front: 3 x 120 mm / 2 x 140 mm
    Top: 2 x 120 mm / 2 x 140 mm
    Rear: 1 x 120 mm
    PSU Shroud: 2 x 120 mm

  • PRE-INSTALLED FAN SIZE

    Front: 3 x 120 mm
    Top: 2 x 120 mm
    Rear: 1 x 120 mm

  • PRE-INSTALLED FAN TYPE

    Front: 3 x auto-RGB Fan
    Top: 2 x auto-RGB Fan
    Rear: 1 x auto-RGB Fan

  • RADIATOR SIZE SUPPORT

    Front: 120 / 140 / 240 mm
    Top: 120 / 240 mm
    Rear: 120 mm

  • DIMENSIONS (DXWXH)

    411.6 x 210 x 498 mm / 16.20 x 8.26 x 19.60 inches

  • NET WEIGHT

    6kg / 13.23lbs

  • GROSS WEIGHT

    6.96kg / 15.34lbs

  • CONNECTIONS

    1. LED On/Off Button

    2. 2 x USB 3.2 Gen 1 Type-A

    3. Mic In

    4. Audio Out

    5. Reset Button

    6. Power Button
