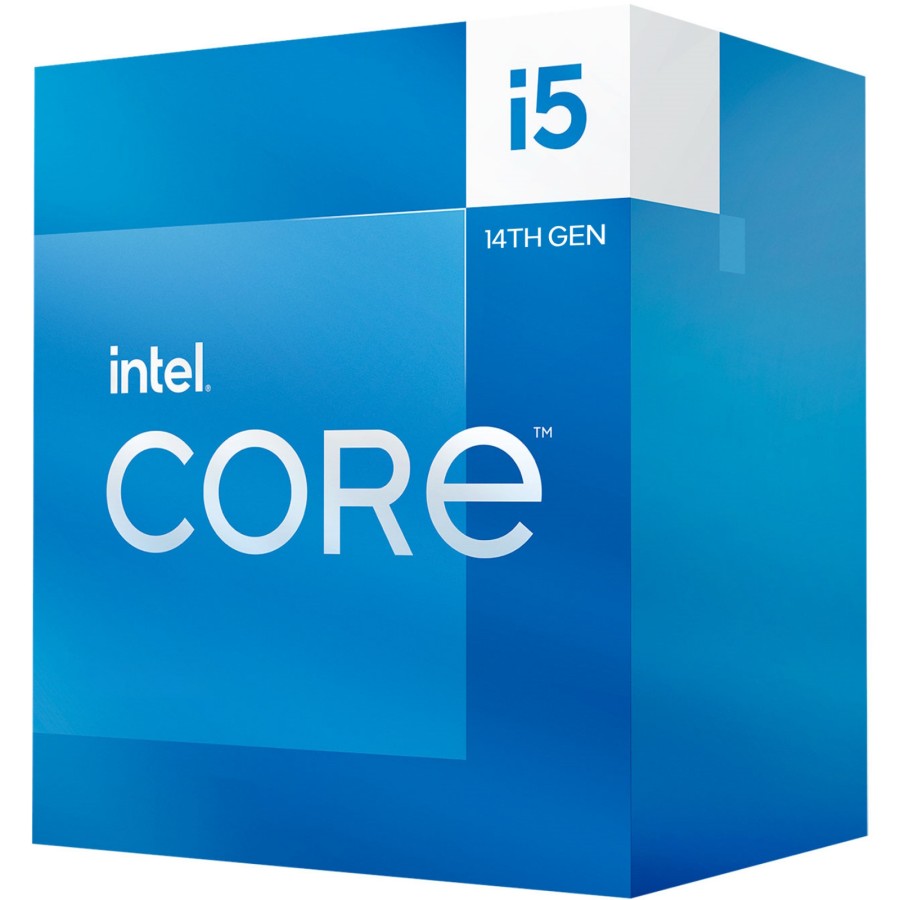

Intel® Core™ i5-14500 Processor

Specifications

• Total Cores

  14

• # of Performance-cores

  6

• # of Efficient-cores

  8

• Total Threads

  20

• Max Turbo Frequency

  5 GHz

• Performance-core Max Turbo Frequency

  5 GHz

• Efficient-core Max Turbo Frequency

  3.7 GHz

• Performance-core Base Frequency

  2.6 GHz

• Efficient-core Base Frequency

  1.9 GHz

• Cache

  24 MB Intel® Smart Cache

• Total L2 Cache

  11.5 MB

• Processor Base Power

  65 W

• Maximum Turbo Power

  154 W

• Max Memory Size (dependent on memory type)

  192 GB

• Memory Types

  Up to DDR5 4800 MT/s
  Up to DDR4 3200 MT/s

• Max # of Memory Channels

  2

• Max Memory Bandwidth

  76.8 GB/s

• ECC Memory Supported ‡

  Yes

• GPU Name

  Intel® UHD Graphics 770

• Graphics Max Dynamic Frequency

  1.55 GHz

• Graphics Output

  eDP 1.4b, DP 1.4a, HDMI 2.1

• Execution Units

  32

• Max Resolution (HDMI)‡

  4096 x 2160 @ 60Hz

• Max Resolution (DP)‡

  7680 x 4320 @ 60Hz

• Max Resolution (eDP - Integrated Flat Panel)‡

  5120 x 3200 @ 120Hz

• DirectX* Support

  12

• OpenGL* Support

  4.5

• OpenCL* Support

  3.0

• Multi-Format Codec Engines

  2

• Intel® Quick Sync Video

  Yes

• Intel® Clear Video HD Technology

  Yes

• # of Displays Supported ‡

  4

• Device ID

  0x4680

• Sockets Supported

  FCLGA1700

• Max CPU Configuration

  1

• Thermal Solution Specification

  PCG 2020C

• TJUNCTION

  100°C

• Package Size

  45.0 mm x 37.5 mm

• Max Operating Temperature

  100°C
