H81M-T M.2 V20

Feature Highlights:

  • Supports dual-channel DDR3-1600MHz memory
  • Provides one M.2 SSD slot
  • Equipped with HDMI and VGA display ports
  • Equipped with an RTL8111H Gigabit Ethernet card
  • Six major protection technologies for more stable operation
  • 200 rigorous testing steps for guaranteed quality

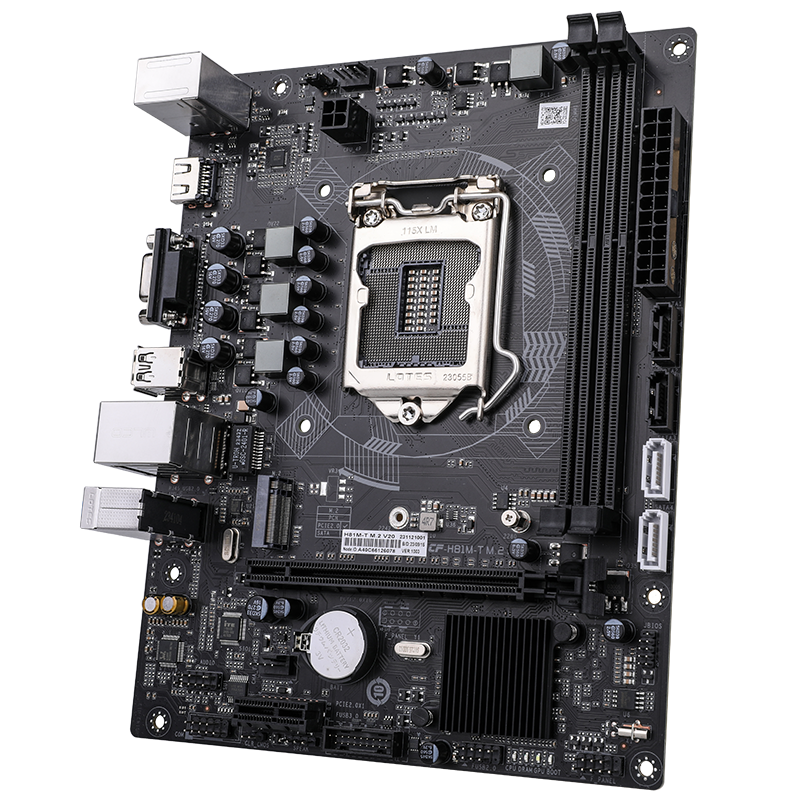

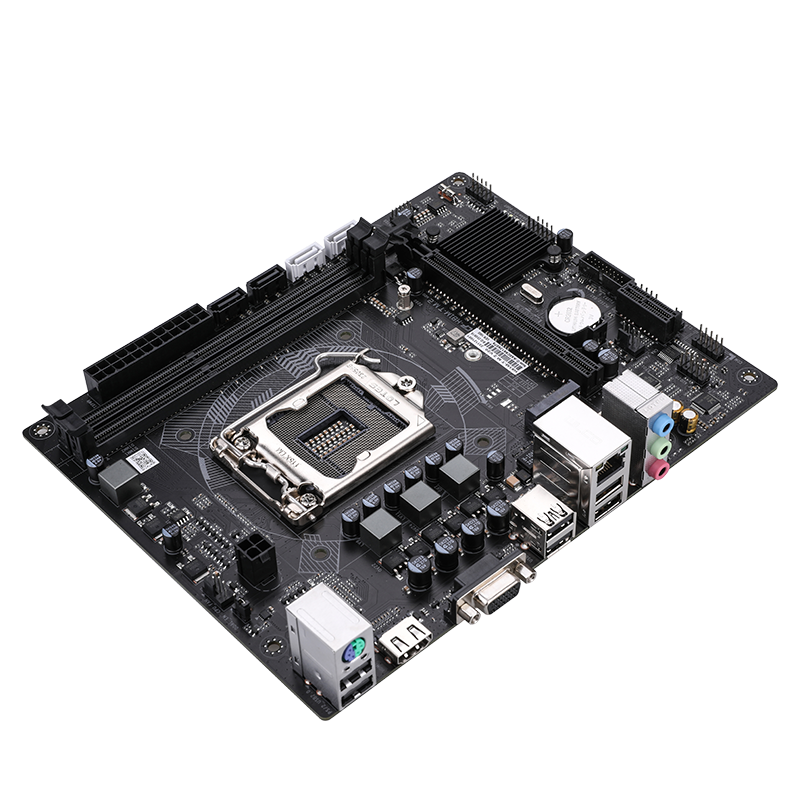

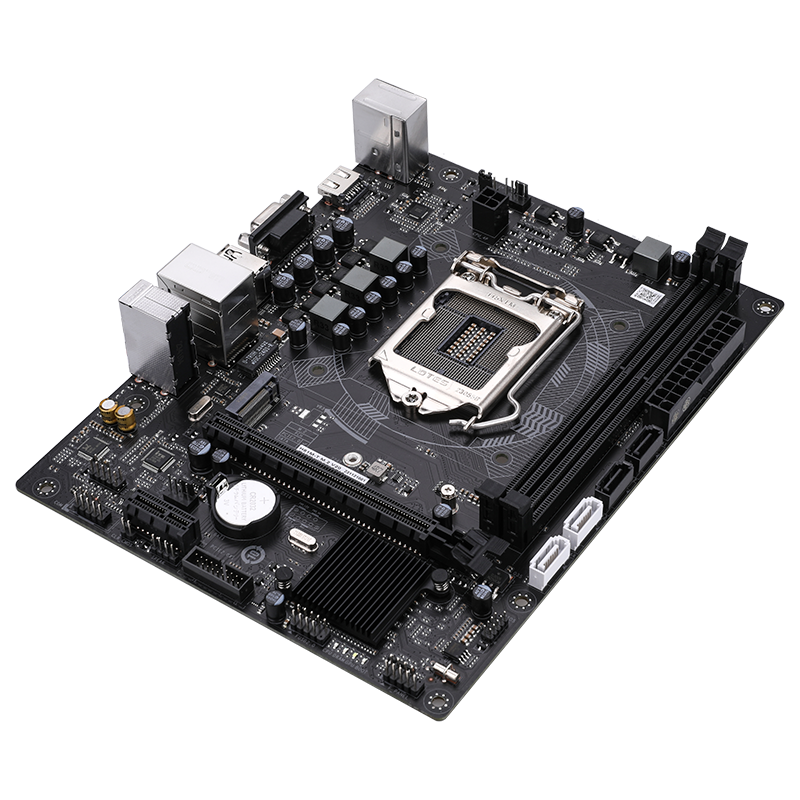

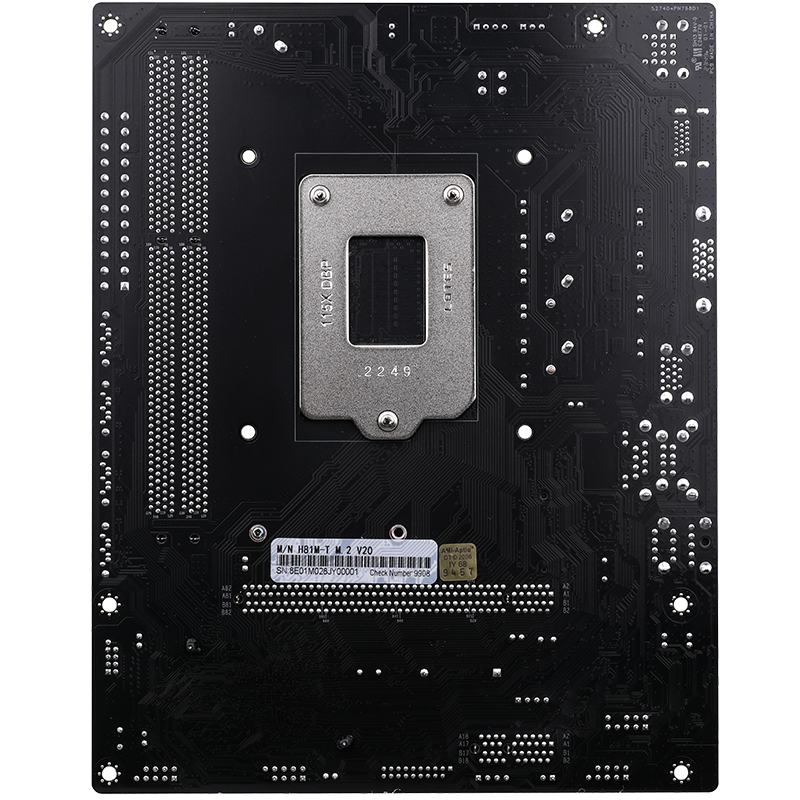

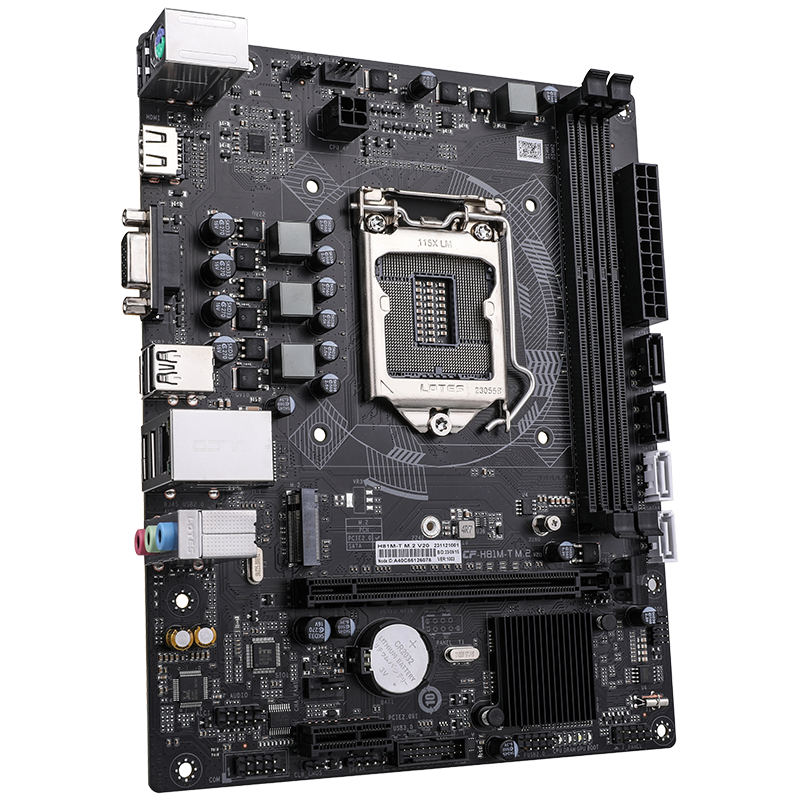

Product Image

Specifications

  • PRODUCT NAME

    H81M-T M.2 V20

    Fully upgraded PCB atomization technology

  • Product Series

    Other Series

  • Chipset

    Intel H81

  • CPU SUPPORT

    CPU Support: Supports 4th Generation Intel® Core™, Pentium®, and Celeron® processors compatible with the motherboard's LGA 1150 socket.

    (*Please visit Colorful's official website at www.colorful.cn for the latest processor support list.)

  • Memory Support

    Provides two DDR3 memory slots, supporting up to 16 GB of memory (a single slot supports up to 8 GB).

    -Supports DDR3 1666/1333/1066MHz memory.

    -Supports dual-channel memory technology.

    (*Please visit the Colorful official website www.colorful.cn for the latest memory compatibility list.)

  • Storage Slots

    Supports one M.2 slot and four SATA hard drive interfaces.

    -M.2_1 slot: supports 2242/2280 M.2 SSDs (PCIe 2.0 x4, PCH lanes)

    -SATA_1/SATA_2 ports: support 6Gb/s

    -SATA_3/SATA_4 ports: support 3Gb/s

  • Expansion Slots

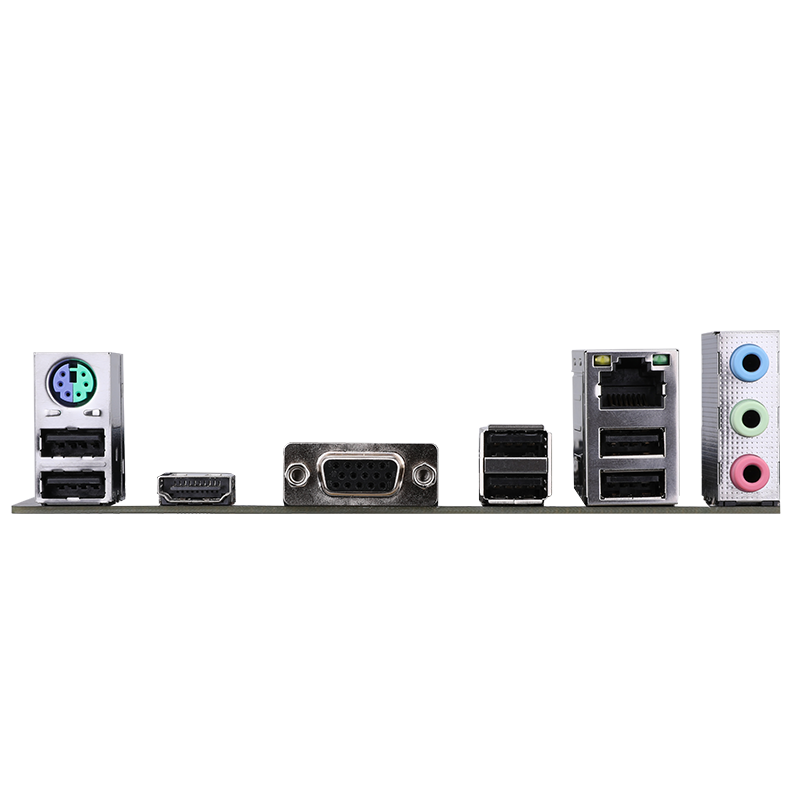

    Rear I/O:

    -6 USB 2.0 ports

    -1 HDMI 1.4 port, supports up to 4K 30Hz resolution

    -1 VGA port

    -1 PS/2 port

    -1 Gigabit Ethernet port

    -3 audio jacks (audio-in/audio-out/microphone)

    Onboard Device Interfaces:

    -1 CPU fan header

    -1 system fan header

    -1 USB 2.0 header (expandable to 2 USB 2.0 Type-A ports)

    -1 USB 3.2 Gen 1 header (expandable to 2 USB 3.2 Gen 1 Type-A ports)

    -1 front audio header

    -1 front panel header

    -1 speaker header

    -1 serial port header

    -1 clear CMOS jumper

    -1 BIOS burner header

    -1 memory voltage control jumper

  • Graphics Support

    1 PCIe 2.0 x16 slot

    1 PCIe 2.0 x1 slot

  • System BIOS

    System BIOS 128M UEFI, supports multiple languages

    Power management: Support S3, S4, network S5 wake-up, support timed startup, call startup

  • Hardware Monitor

    CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, system temperature monitoring, and each group voltage monitoring

  • Networking

    Onboard network card RTL8111H Gigabit network card

  • Audio

    Onboard sound card Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels

  • Configuration

    M-ATX

    170mm x 215mm
