GeForce RTX 5090 32G VENTUS 3X OC
TAKE THE ESSENTIALS VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
Extreme Performance: 2452 MHz (MSI Center)
Boost: 2437 MHz - TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

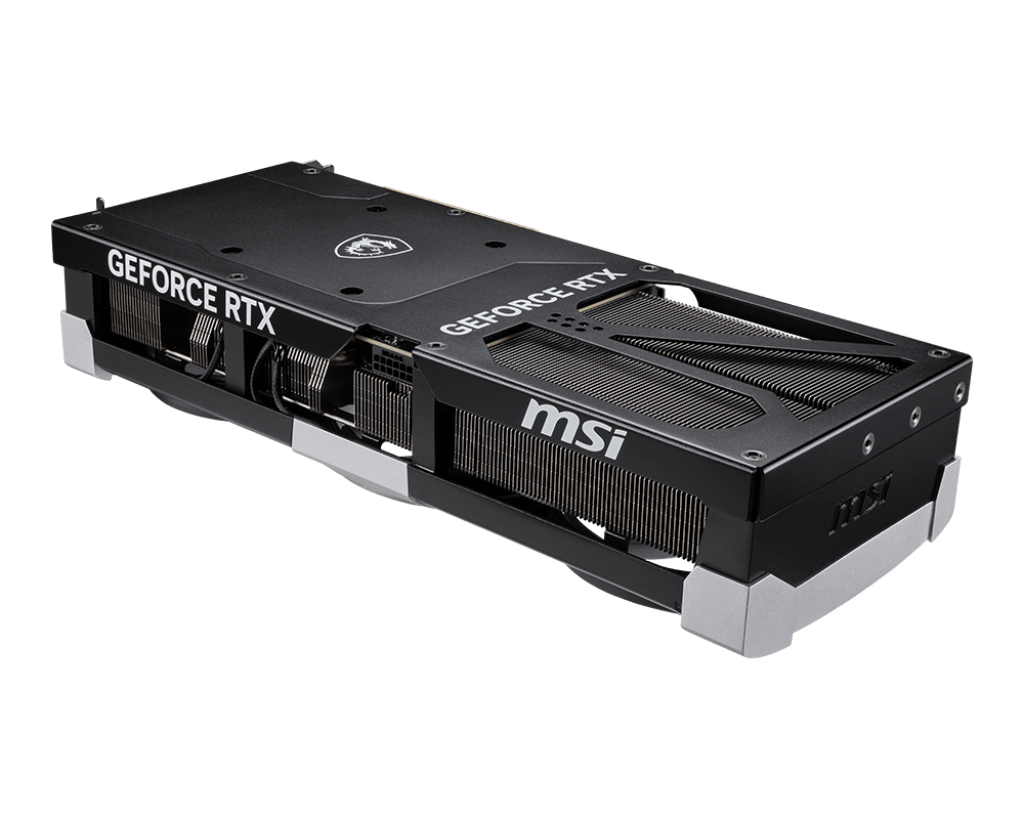

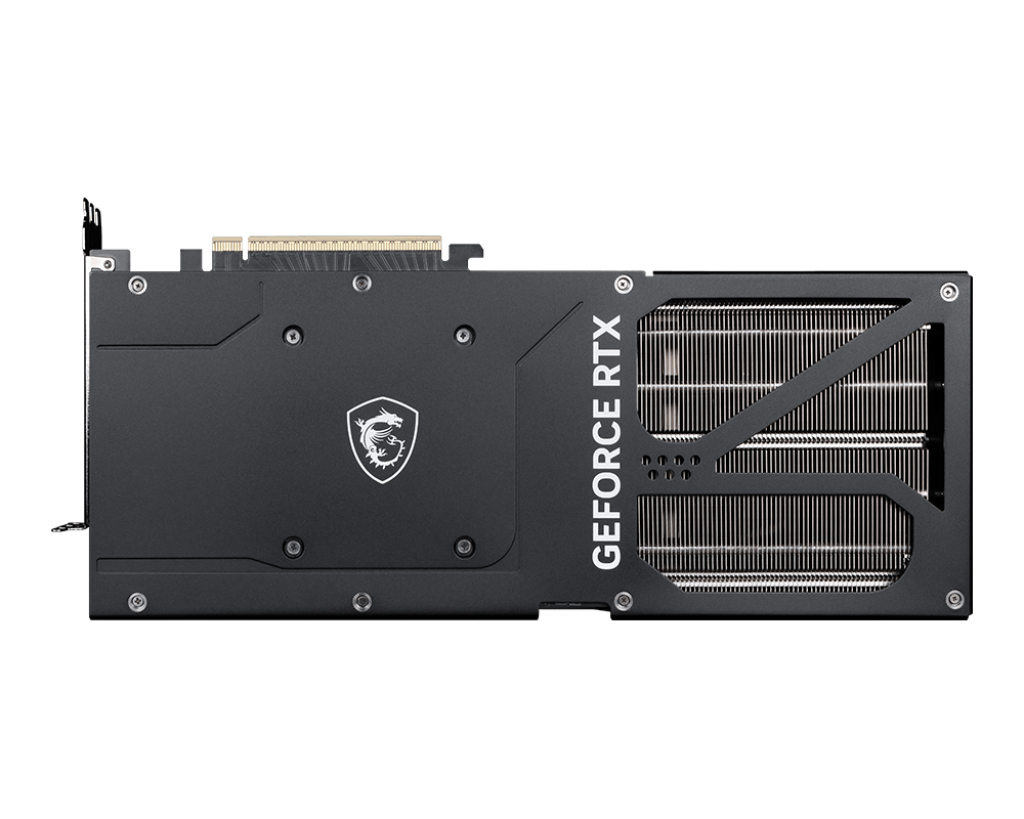

- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications
-
PRODUCT NAME
GeForce RTX™ 5090 32G VENTUS 3X OC
-
MODEL NAME
G5090-32V3C
-
GRAPHICS PROCESSING UNIT
NVIDIA® GeForce RTX™ 5090
-
INTERFACE
PCI Express® Gen 5
-
Core Clocks
Extreme Performance: 2452 MHz (MSI Center)
Boost: 2437 MHz -
CUDA® CORES
21760 Units
-
Memory Speed
28 Gbps
-
Memory
32GB GDDR7
-
Memory Bus
512-bit
-

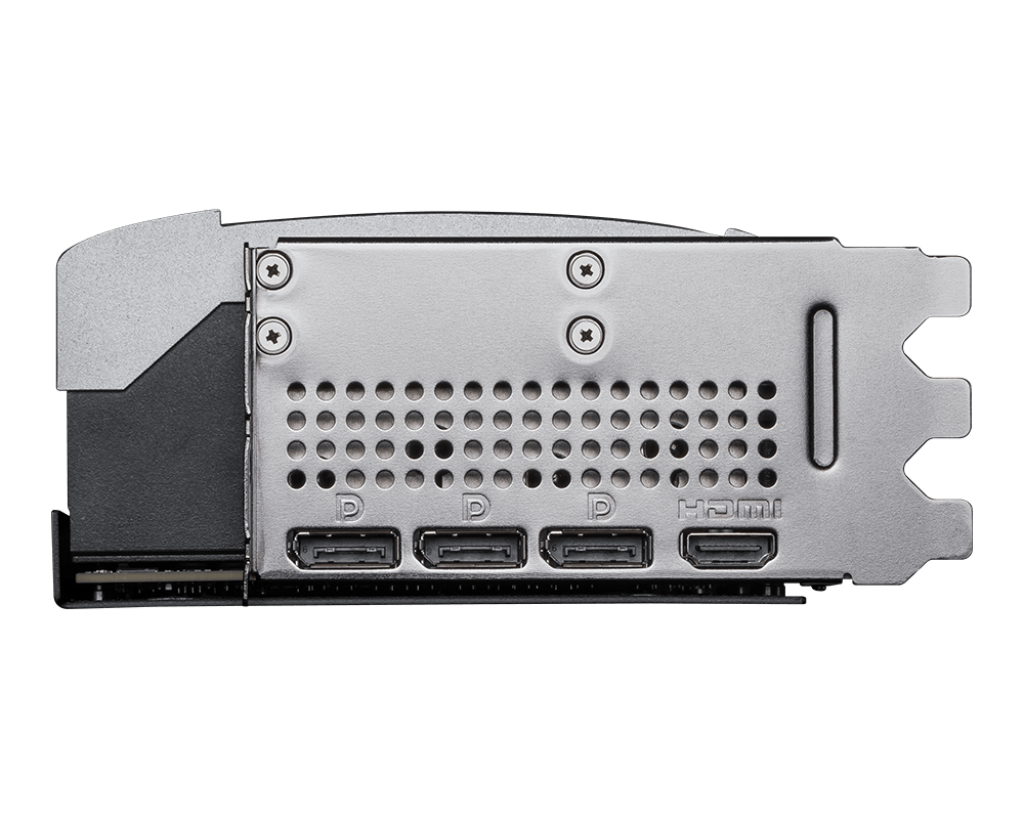

Output
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) -
HDCP Support
Y
-
Power consumption
575 W
-

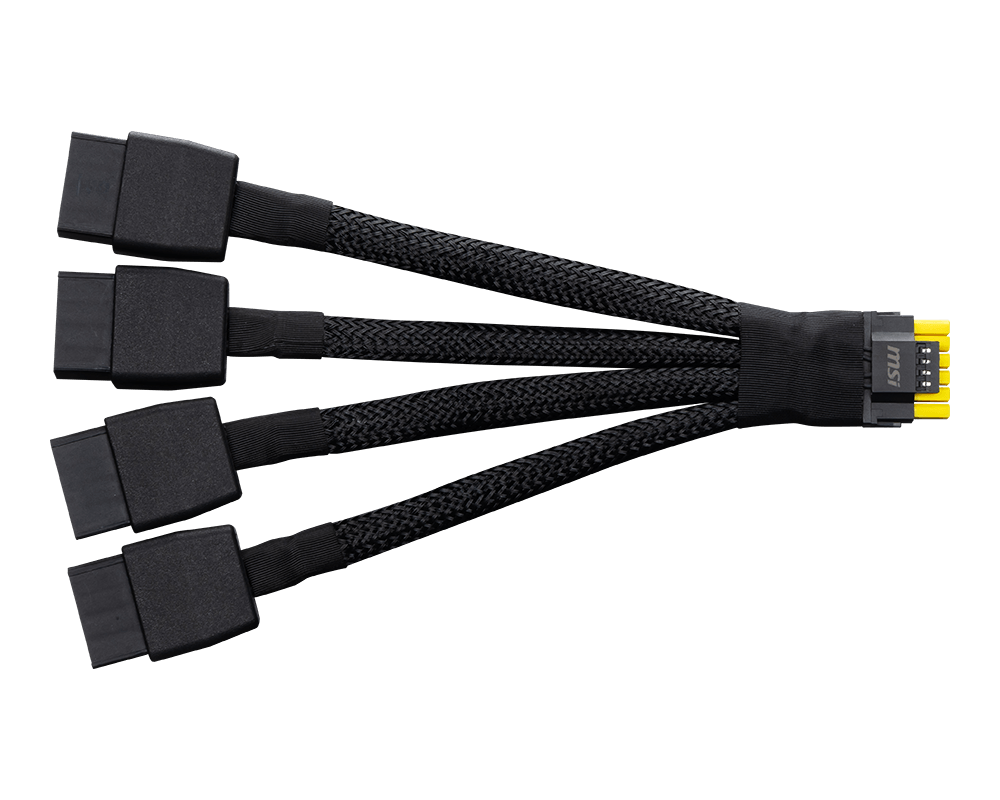

Power Connectors
16-pin x 1
-
Recommended PSU
1000 W
-
Card Dimension (mm)
325 x 139 x 67 mm
-
Weight (Card / Package)
1875 g / TBD
-
DirectX Version Support
12 Ultimate
-
OpenGL Version Support
4.6
-
Maximum Displays
4
-
G-SYNC® technology
Y
-
Digital Maximum Resolution
7680 x 4320
