GeForce RTX 5080 16G SHADOW 3X OC
TAKE THE ESSENTIALS MSI SHADOW brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Core Clocks:
Extreme Performance: 2655 MHz (MSI Center)

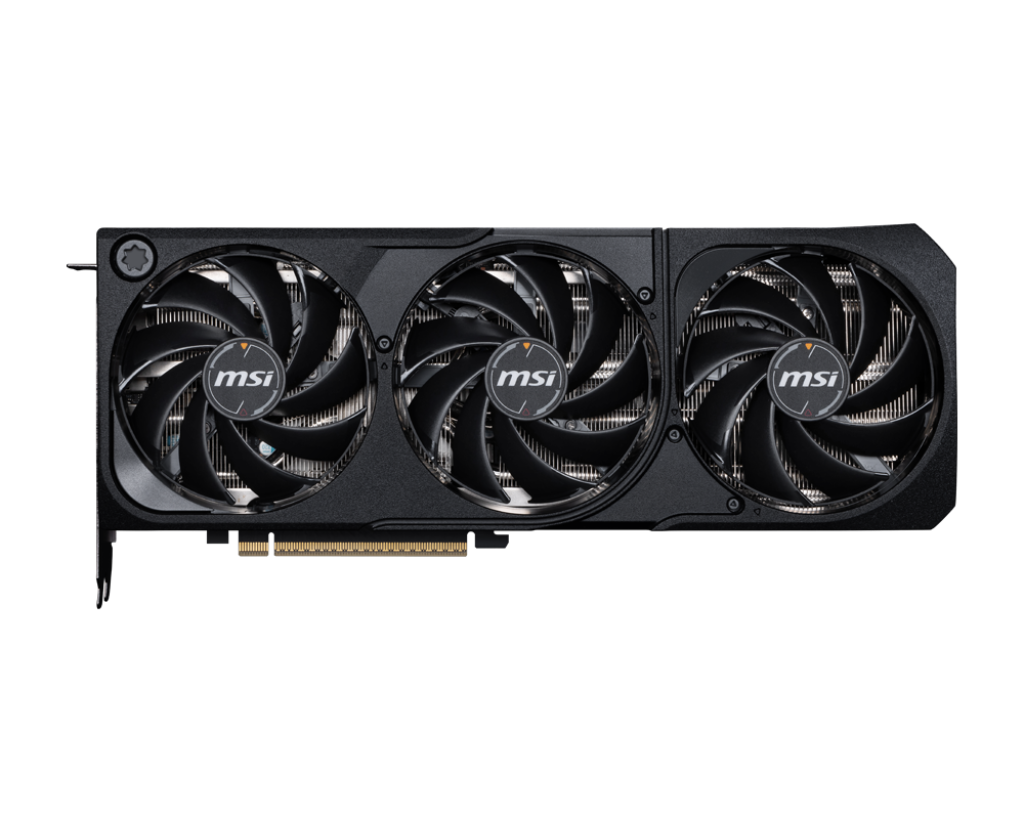

Boost: 2640 MHz - TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

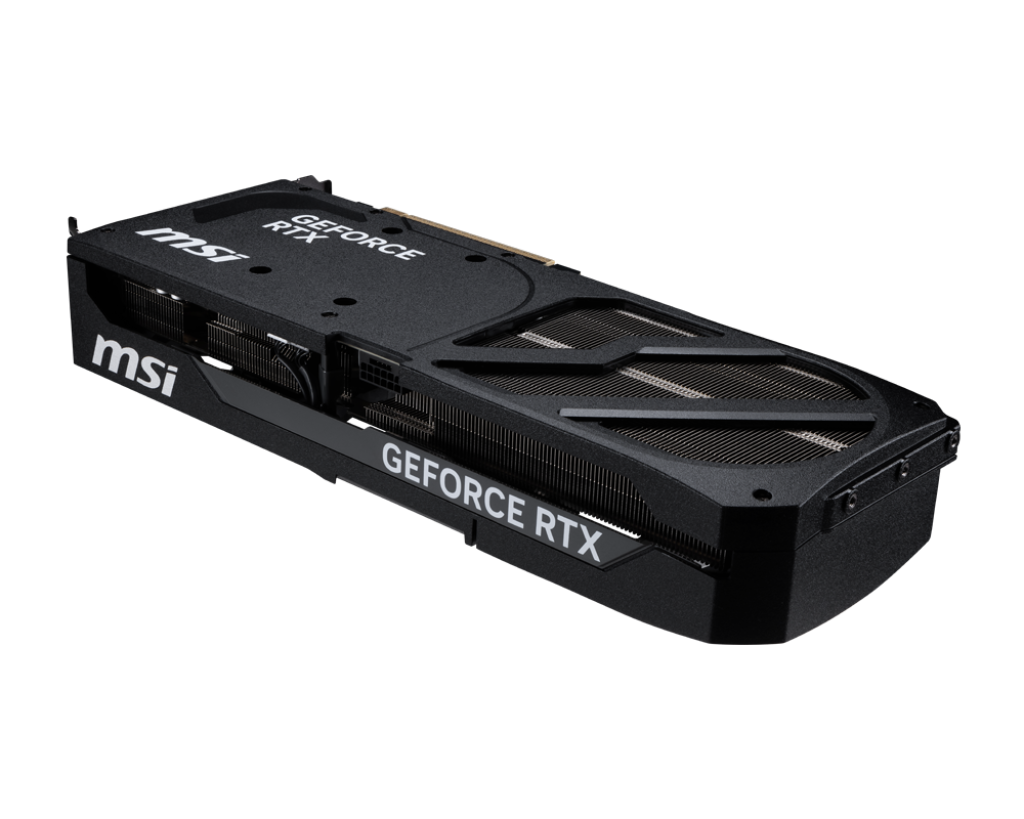

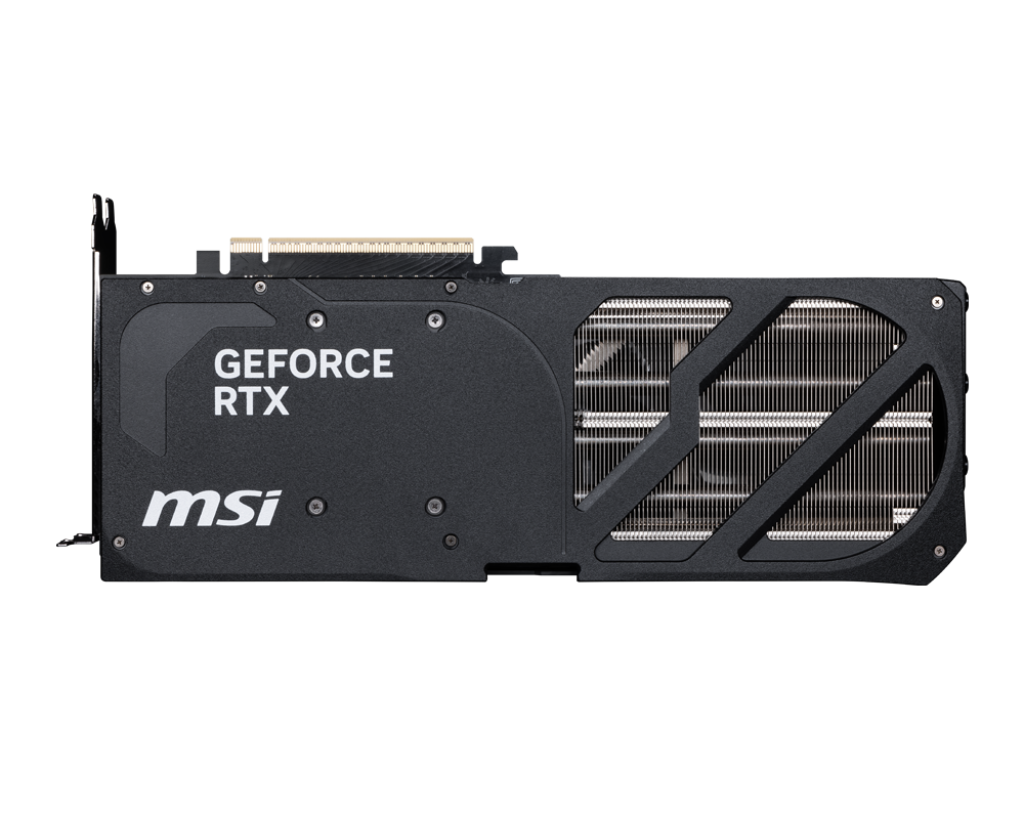

- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications
-
PRODUCT NAME
GeForce RTX™ 5080 16G SHADOW 3X OC
-
MODEL NAME
G5080-16S3C
-
GRAPHICS PROCESSING UNIT
NVIDIA® GeForce RTX™ 5080
-
INTERFACEPCI Express® Gen 5
-
Core Clocks
Extreme Performance: 2655 MHz (MSI Center)
Boost: 2640 MHz -
CUDA® CORES
10752 Units
-
Memory Speed
30 Gbps
-
Memory
16GB GDDR7
-
Memory Bus
256-bit
-

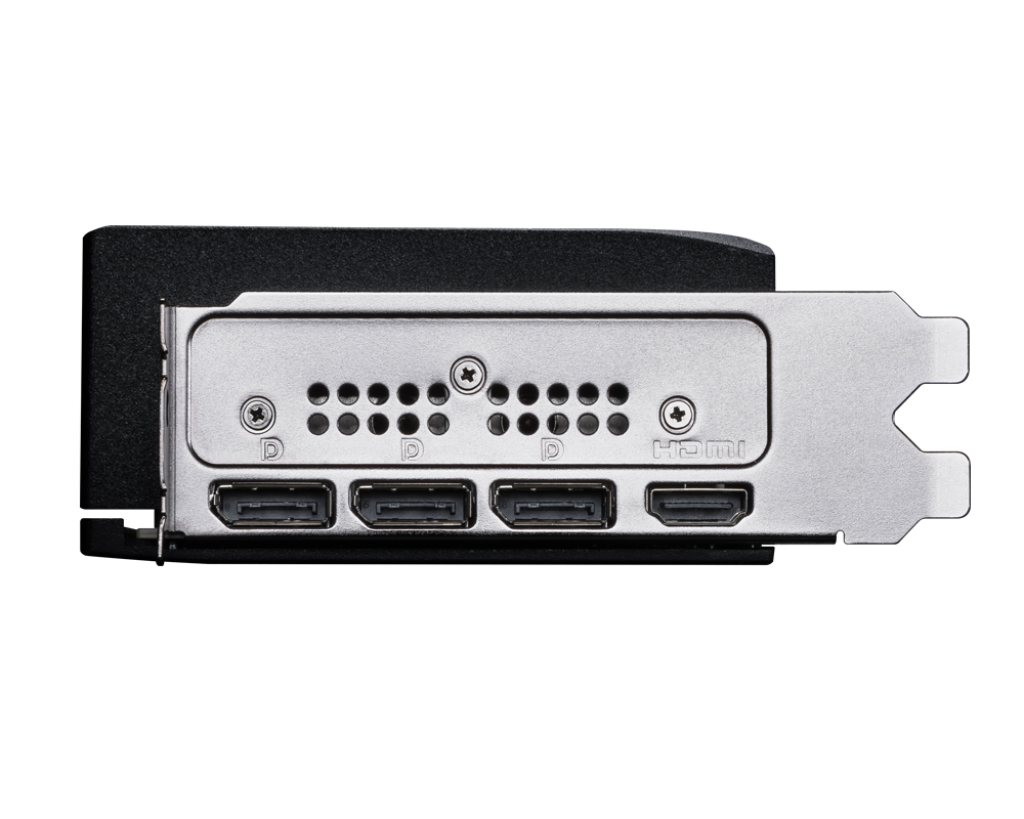

Output
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) -
HDCP Support
Y
-
Power consumption
360 W
-

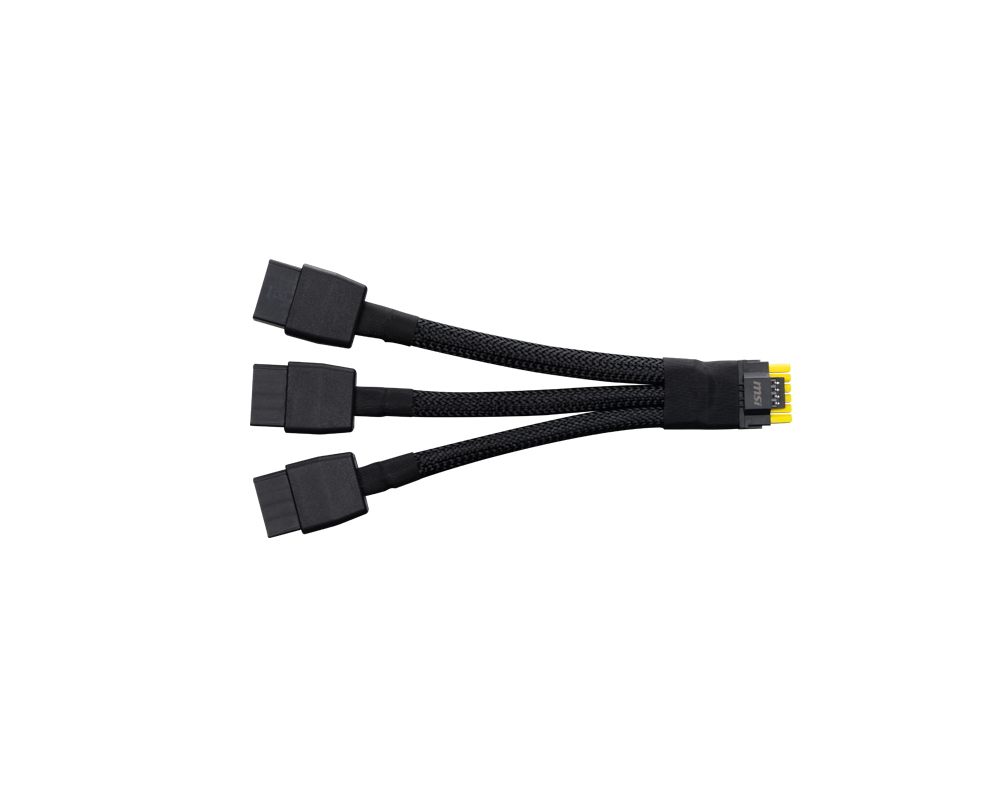

Power Connectors
16-pin x 1
-
Recommended PSU850 W
-
Card Dimension (mm)
303 x 121 x 49 mm
-
Weight (Card / Package)
1046 g / 1546 g
-
DirectX Version Support
12 Ultimate
-
OpenGL Version Support
4.6
-
Maximum Displays
4
-
G-SYNC® technology
Y
-
Digital Maximum Resolution
7680 x 4320
