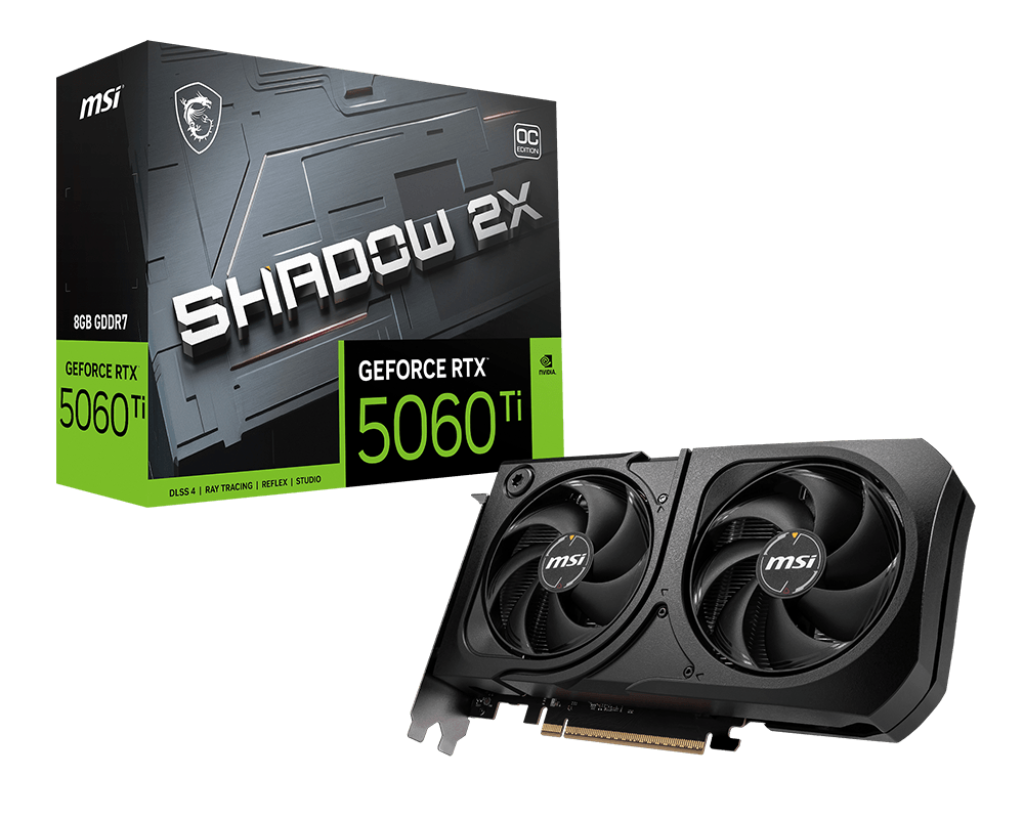

GeForce RTX 5060 Ti 8G SHADOW 2X OC PLUS
TAKE THE ESSENTIALS MSI SHADOW brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
Extreme Performance: 2617 MHz (MSI Center)

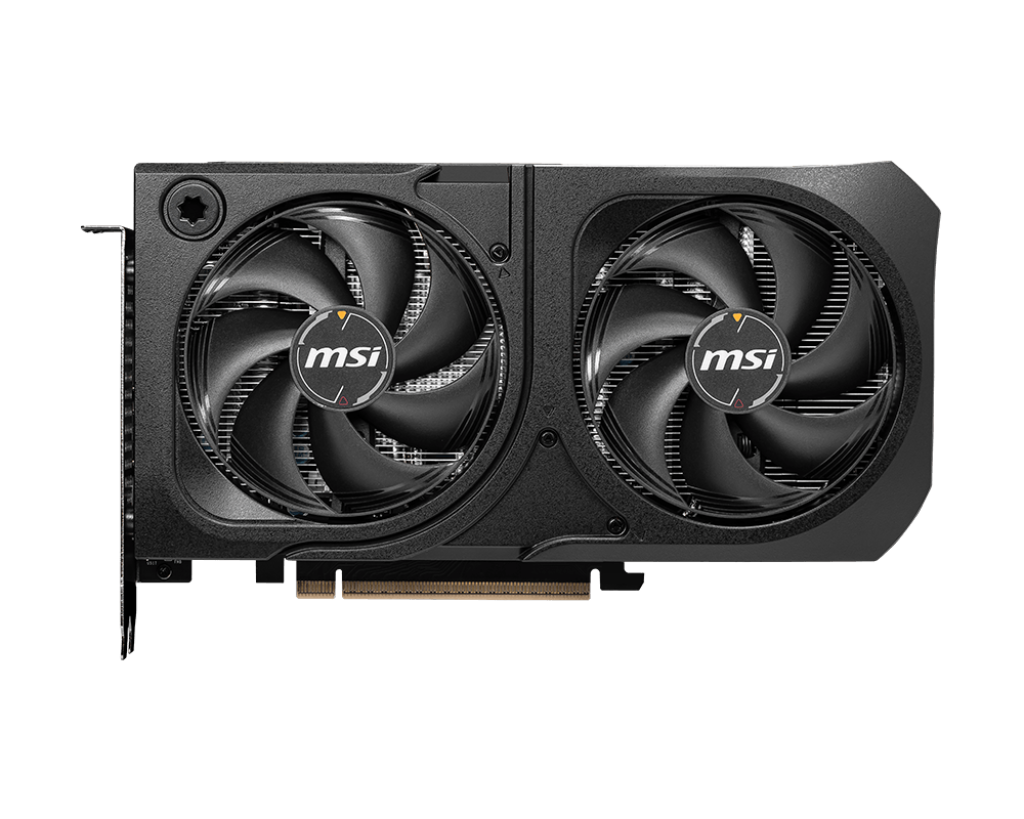

Boost: 2602 MHz - STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

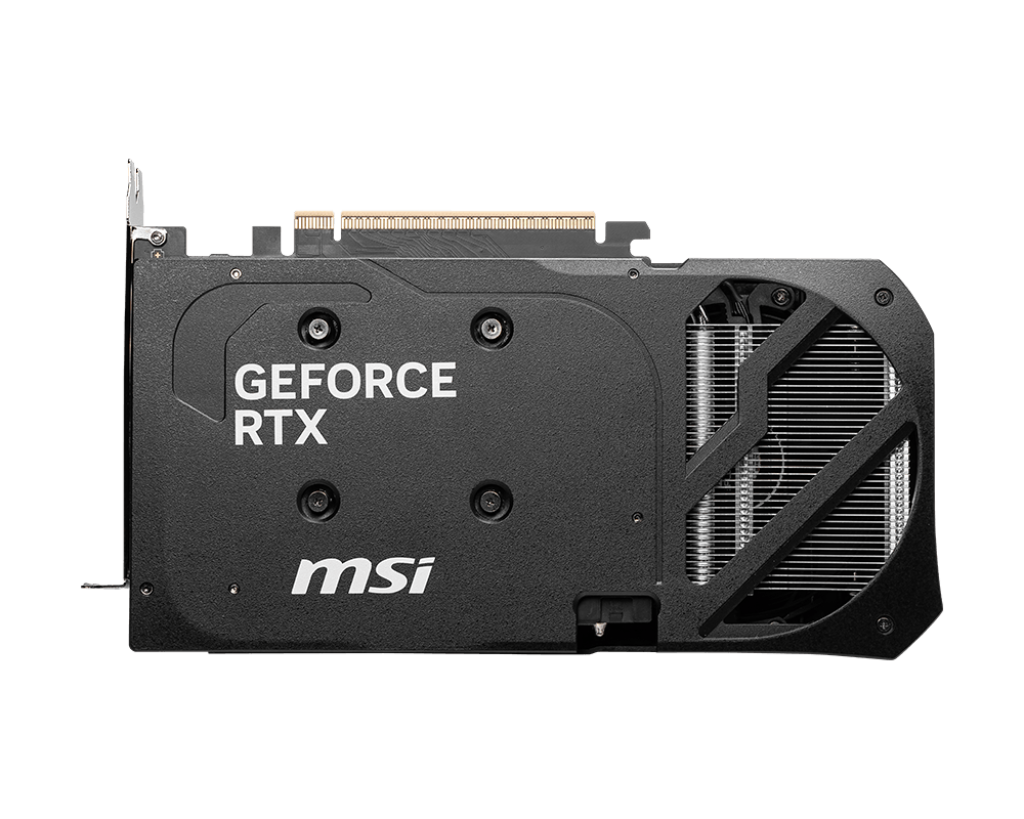

- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications
-
MODEL NAME
G506T-8S2CP
-
GRAPHICS PROCESSING UNIT
NVIDIA® GeForce RTX™ 5060 Ti
-
INTERFACE
PCI Express® Gen 5 x16 (uses x8)
-
Core Clocks
Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz -
CUDA® CORES
4608 Units
-
Memory Speed
28 Gbps
-
Memory
8GB GDDR7
-
Memory Bus
128-bit
-

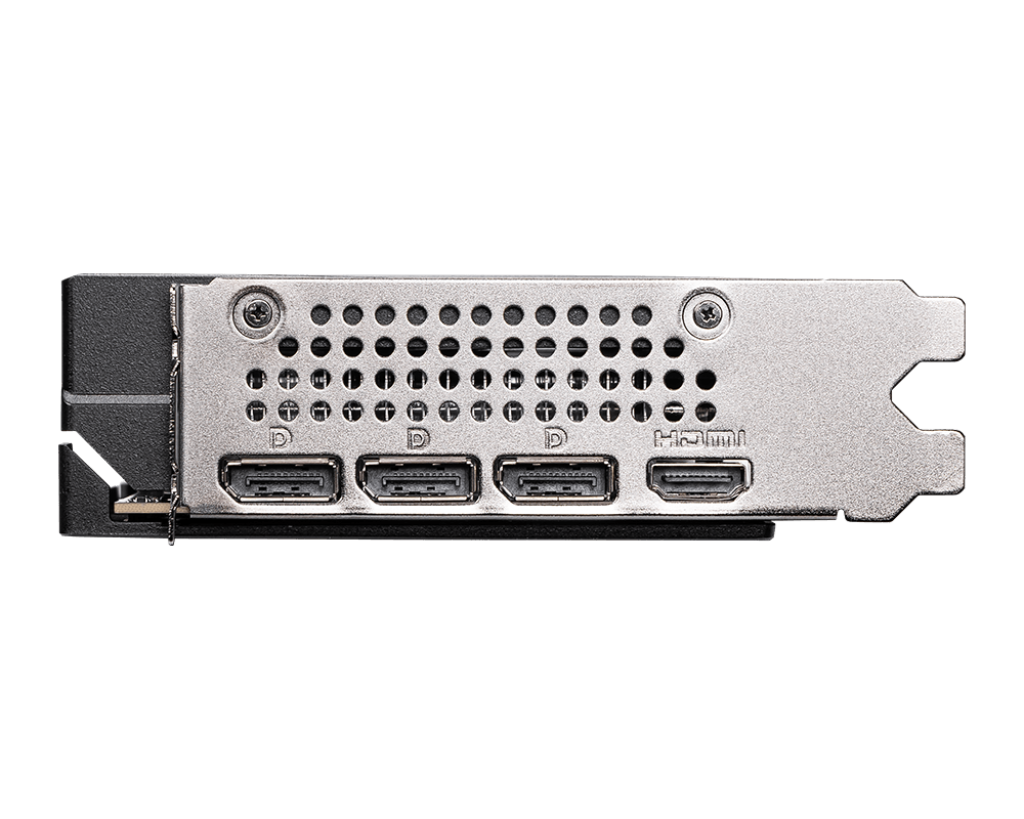

Output
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) -
HDCP Support
Y
-
Power consumption
180 W
-
Power Connectors
8-pin x 1
-
Recommended PSU
600 W
-
Card Dimension (mm)
226 x 126 x 41 mm
-
Weight (Card / Package)
553 g / 814 g
-
DirectX Version Support
12 Ultimate
-
OpenGL Version Support
4.6
-
Maximum Displays
4
-
G-SYNC® technology
Y
-
Digital Maximum Resolution
7680 x 4320
