GeForce RTX™ 4090 SUPRIM X 24G
WITH DLSS 3 The NVIDIA® GeForce RTX™ 4090 is the ultimate GeForce GPU. It brings an enormous leap in performance, efficiency, and AI-powered graphics with DLSS 3. Experience ultra-high performance gaming, incredibly detailed virtual worlds with ray tracing, unprecedented productivity, and new ways to create. It’s powered by the NVIDIA Ada Lovelace architecture and comes with 24 GB of G6X memory to deliver the ultimate experience for gamers and creators.
Boost Clock / Memory Speed
- Extreme Performance: 2640 MHz (MSI Center)
Boost: 2625 MHz (GAMING & SILENT Mode)
21 Gbps - 24GB GDDR6X

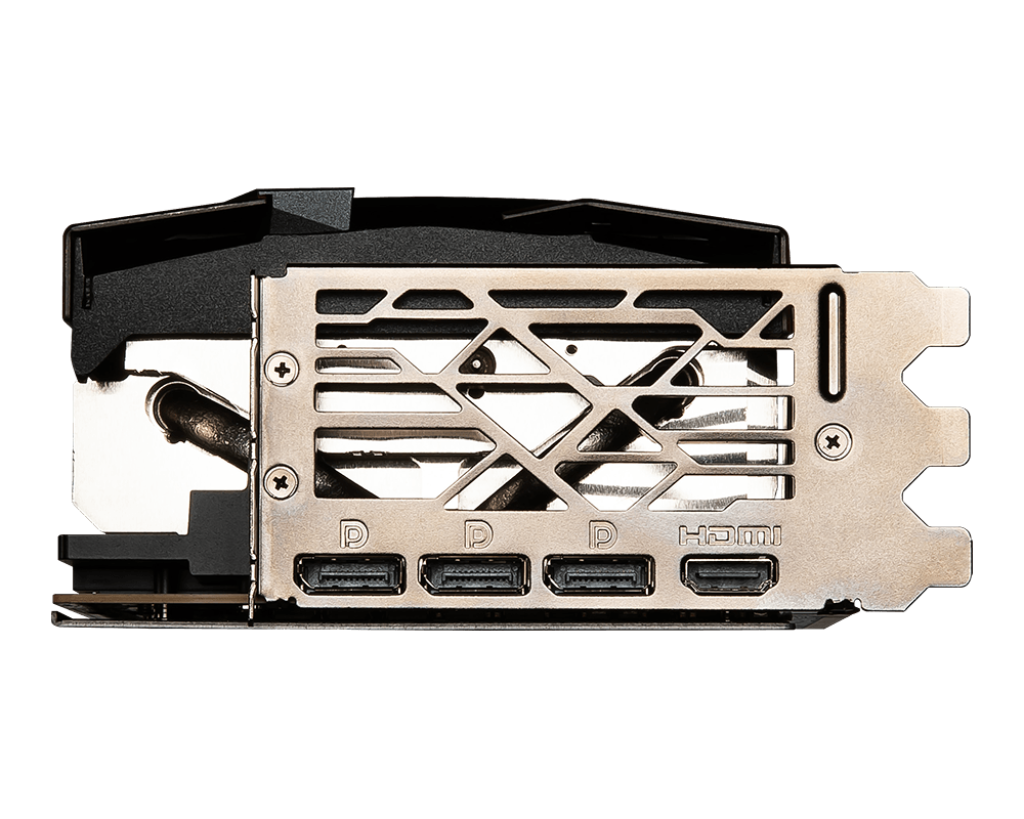

- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K @120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

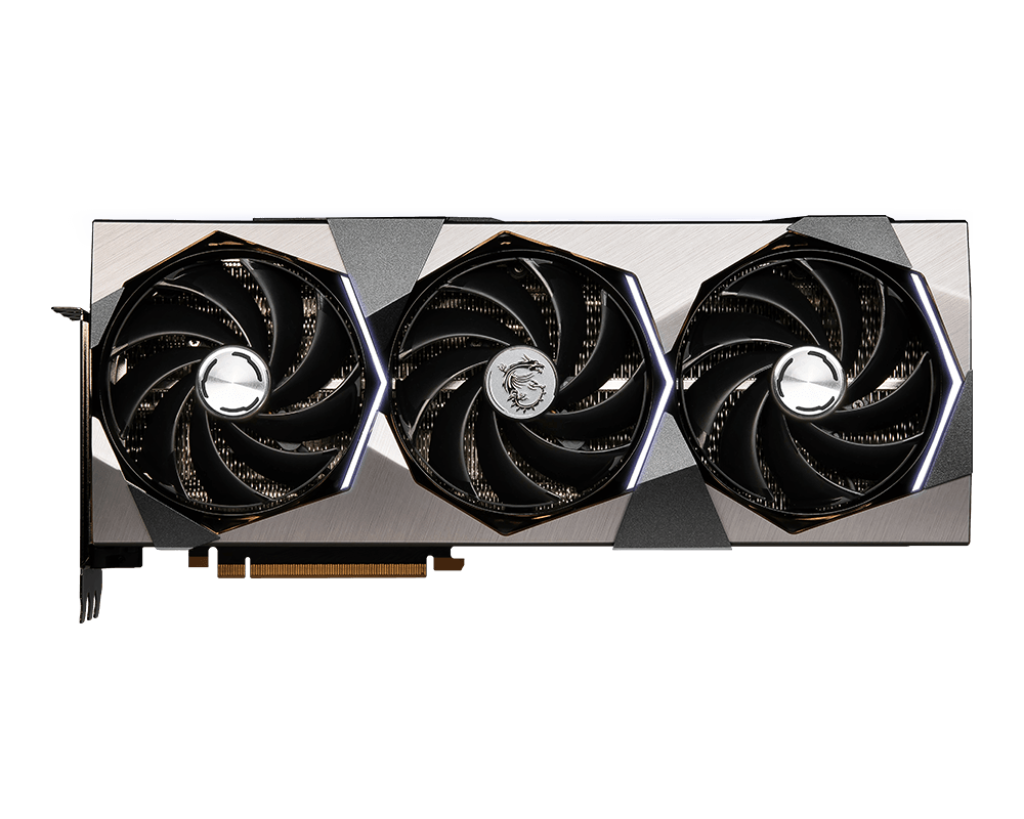

TRI FROZR 3S Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- VAPOR CHAMBER: The GPU and memory modules are covered with a Vapor Chamber which rapidly transfers heat to Core Pipes.
- Core Pipe: Precision-machined heat pipes ensure max contact to the GPU baseplate and spread heat along the full length of the heatsink.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
Dual BIOS
- Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Mystic Light
- Controls lighting for both MSI and compatible third-party RGB products.
Specifications
-
MODEL NAME
GeForce RTX™ 4090 SUPRIM X 24G
-
GRAPHICS PROCESSING UNIT
NVIDIA® GeForce RTX™ 4090
-
INTERFACE
PCI Express® Gen 4
-
Core Clocks
Extreme Performance: 2640 MHz (MSI Center)
Boost: 2625 MHz (GAMING & SILENT Mode)
-
CUDA® CORES
16384 Units
-
Memory Speed
21 Gbps
-
Memory
24GB GDDR6X
-
Memory Bus
384-bit
-
Output
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K @120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
-
HDCP Support
Y
-
Power consumption
Silent mode: 450W
Gaming mode: 480W
-
Power connectors
16-pin x 1
-
Recommended PSU
1000W (Min. 850W)
-
Card Dimension (mm)
336 x 142 x 78 mm
-
Weight (Card / Package)
2413g / 3636g
-
DirectX Version Support
12 Ultimate
-
OpenGL Version Support
4.6
-
Maximum Displays
4
-
G-SYNC® technology
Y
-
Digital Maximum Resolution
7680 x 4320
