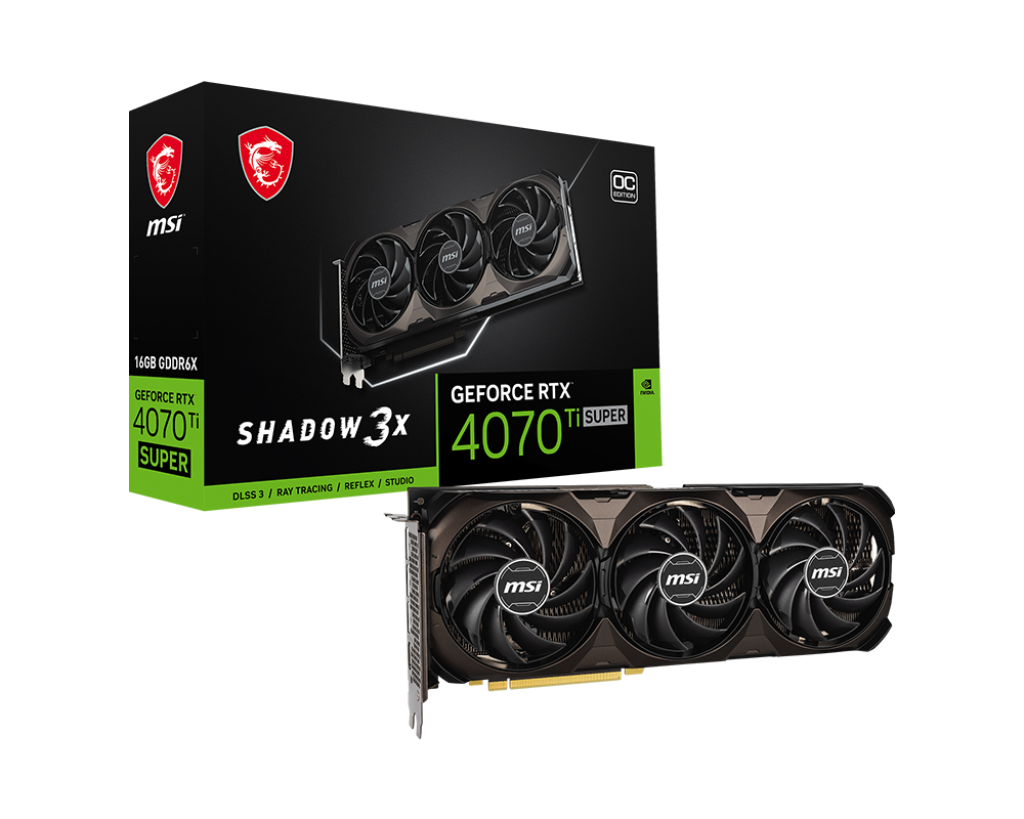

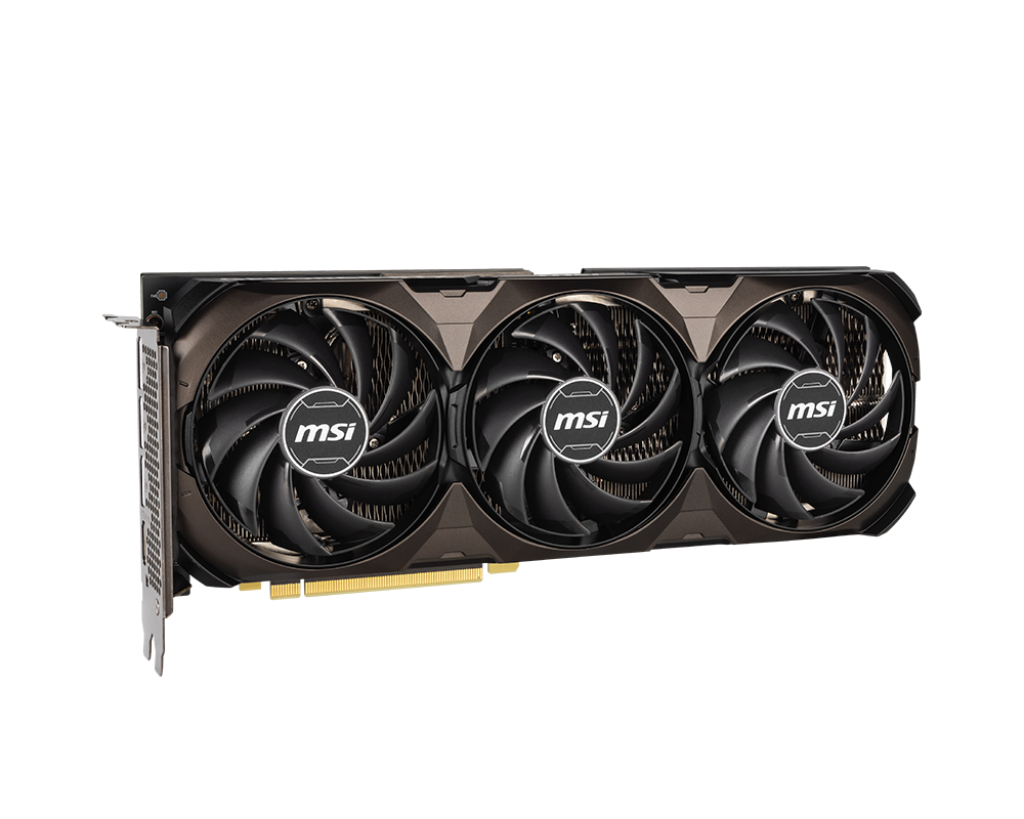

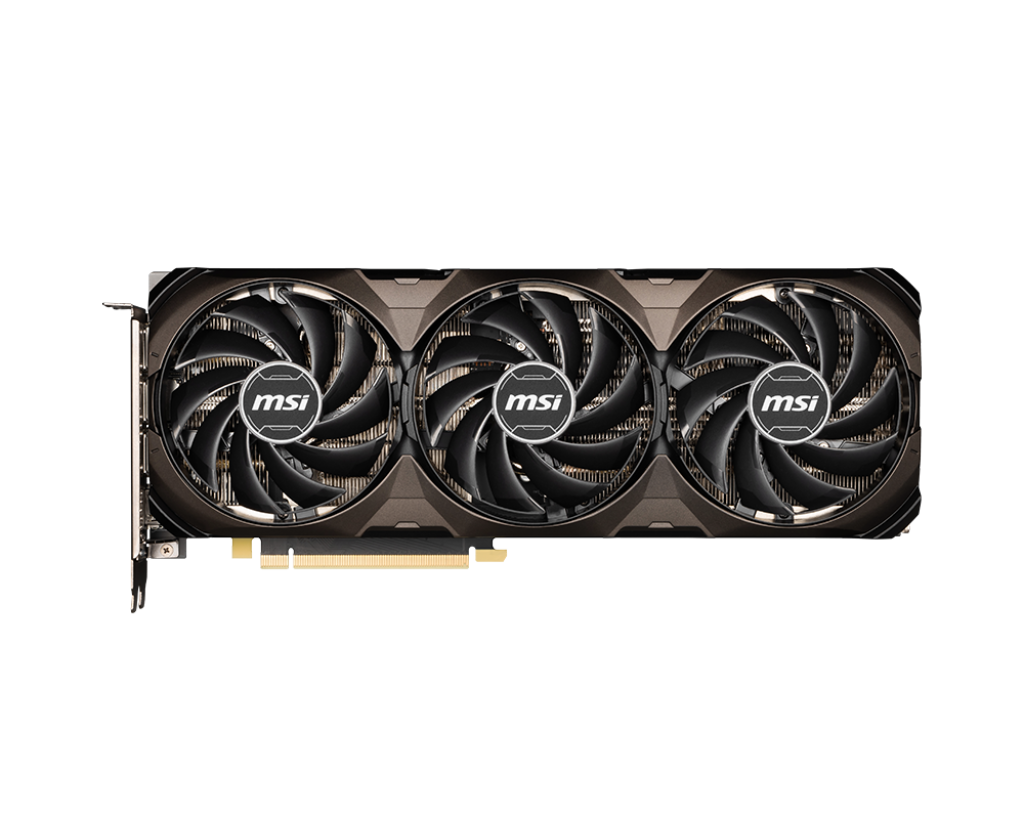

GeForce RTX 4070 Ti SUPER 16G SHADOW 3X OC
WITH DLSS 3 Get equipped for supercharged gaming and creating with NVIDIA® GeForce RTX™ 4070 Ti SUPER. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more. SFF-Ready Enthusiast GeForce Card
Boost Clock / Memory Speed
- 2640 MHz / 21 Gbps
- 16GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
Triple Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.

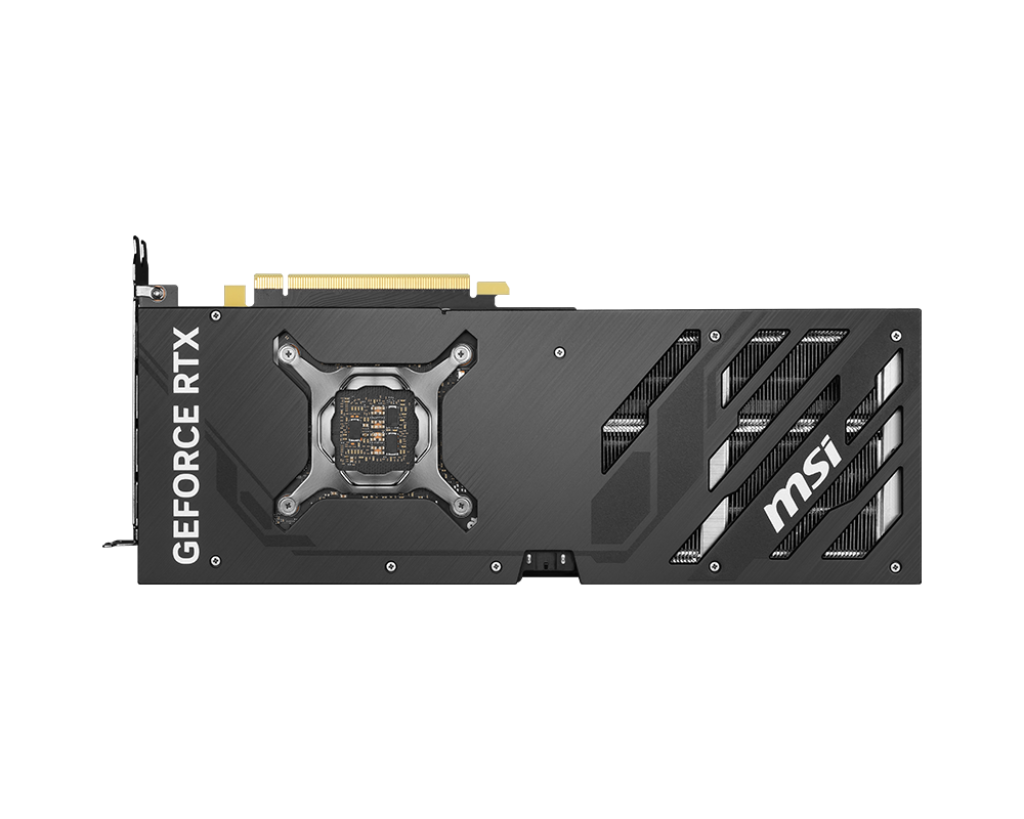

Reinforcing Backplate
- The reinforcing backplate features a flow-through design that provides additional ventilation.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Specifications
-
Chipset
GeForce RTX™ 4070 Ti SUPER 16G SHADOW 3X OC
-
Chipset
NVIDIA® GeForce RTX™ 4070 Ti SUPER
-
Interface
PCI Express® Gen 4
-
Core Clocks
Extreme Performance: 2655 MHz (MSI Center)
Boost: 2640 MHz -
CUDA® CORES
8448 Units
-
Memory Speed
21 Gbps
-
Memory16GB GDDR6X
-
Memory Bus
256-bit
-
Output
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) -
HDCP Support
Y
-
Power consumption
285 W
-
Power connectors
16-pin x 1
-
Recommended PSU
700 W
-
Card Dimension (mm)
308 x 120 x 43 mm
-
Weight (Card / Package)
838g / 1294g
-
DirectX Version Support
12 Ultimate
-
OpenGL Version Support
4.6
-
Maximum Displays
4
-
G-SYNC® technology
Y
-
Digital Maximum Resolution
7680 x 4320
