GeForce RTX 4070 SUPER 12G VENTUS 2X OC
WITH DLSS 3 Get equipped for supercharged gaming and creating with the NVIDIA® GeForce RTX™ 4070 SUPER. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- 2505 MHz / 21 Gbps
- 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

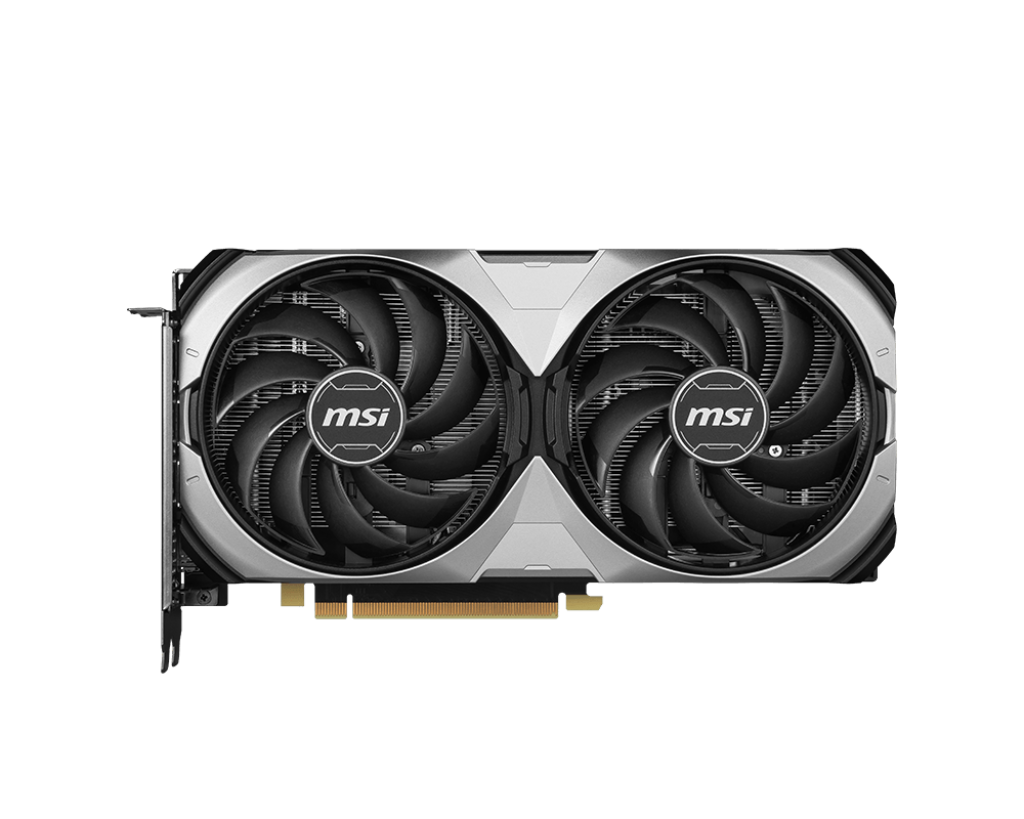

Dual Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.

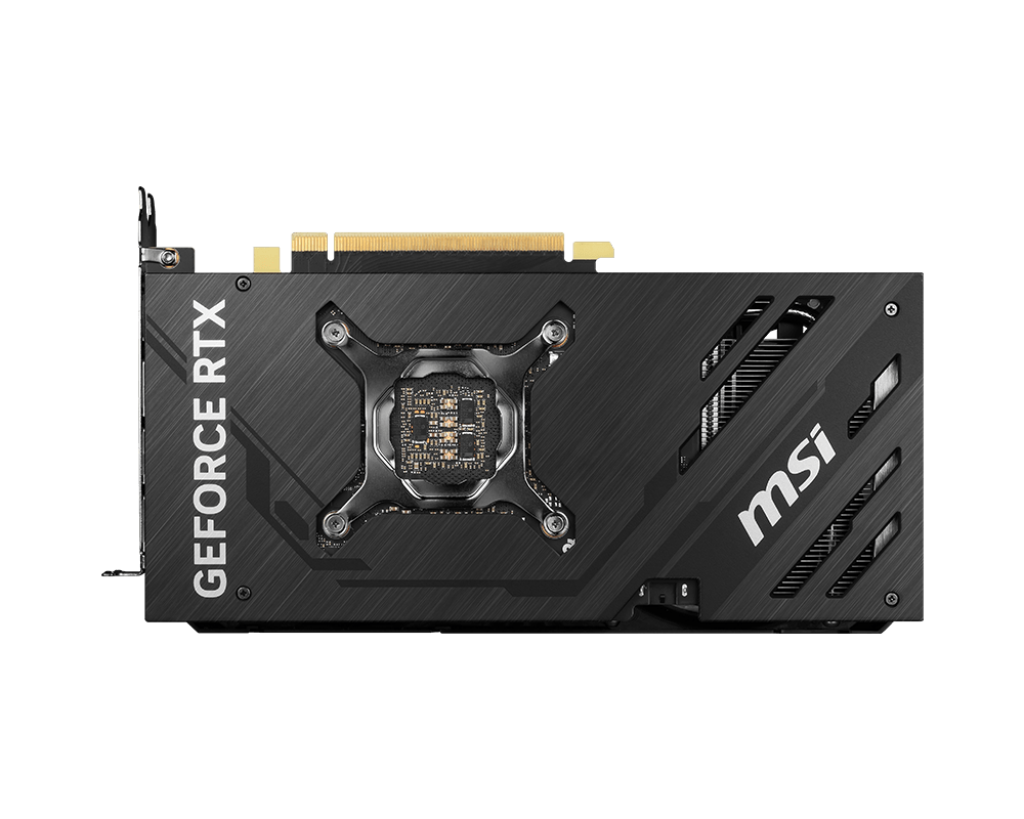

Reinforcing Backplate
- The reinforcing backplate features a flow-through design that provides additional ventilation.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Specifications
-
MODEL NAME
GeForce RTX™ 4070 SUPER 12G VENTUS 2X OC
-
GRAPHICS PROCESSING UNIT
NVIDIA® GeForce RTX™ 4070 SUPER
-
INTERFACE
PCI Express® Gen 4
-
Core Clocks
Extreme Performance: 2520 MHz (MSI Center)
Boost: 2505 MHz -
CUDA® CORES
7168 Units
-
Memory Speed
21 Gbps
-
Memory
12GB GDDR6X
-
Memory Bus
192-bit
-

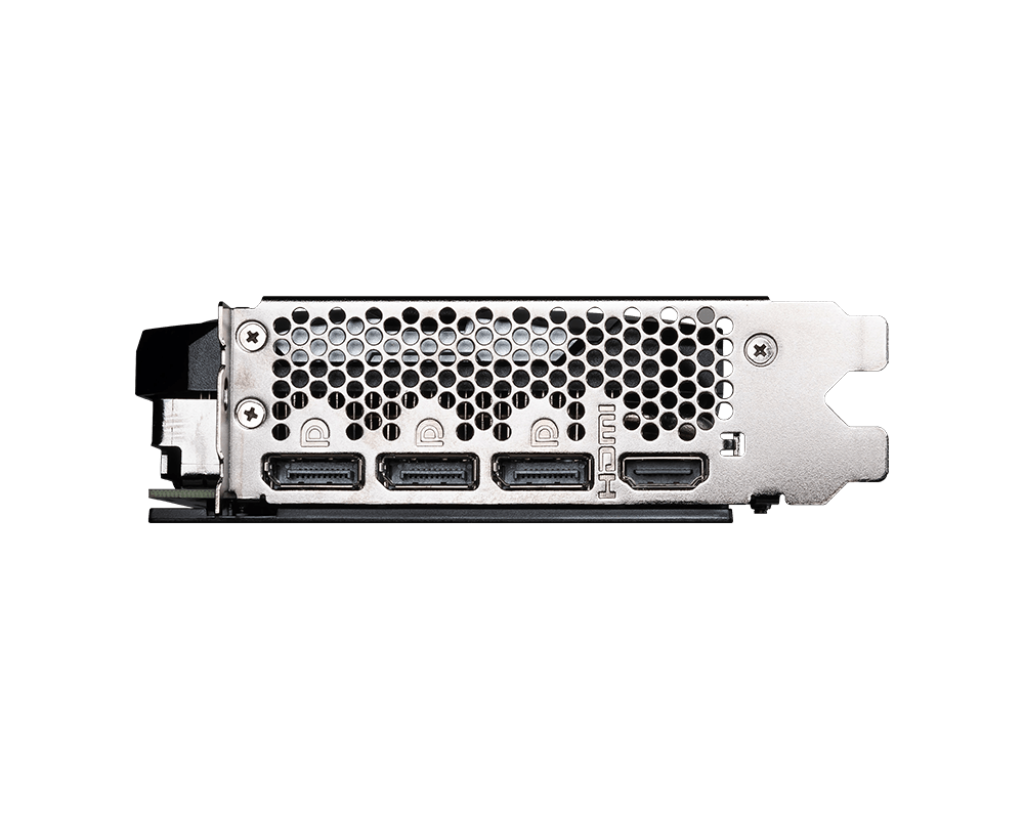

Output
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) -
HDCP Support
Y
-
Power consumption
220 W
-

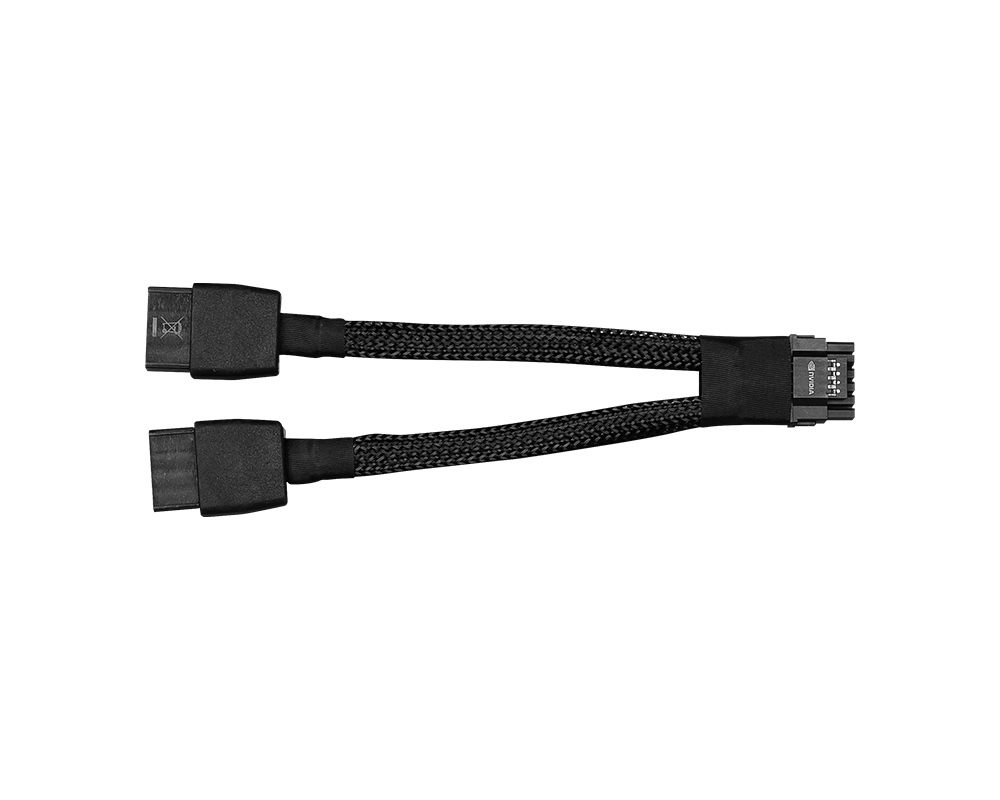

Power connectors
16-pin x 1
-
Recommended PSU
650 W
-
Card Dimension (mm)
242 x 125 x 43 mm
-
Weight (Card / Package)
680 g / 998 g
-
DirectX Version Support
12 Ultimate
-
OpenGL Version Support
4.6
-
Maximum Displays
4
-
G-SYNC® technology
Y
-
Digital Maximum Resolution
7680 x 4320
