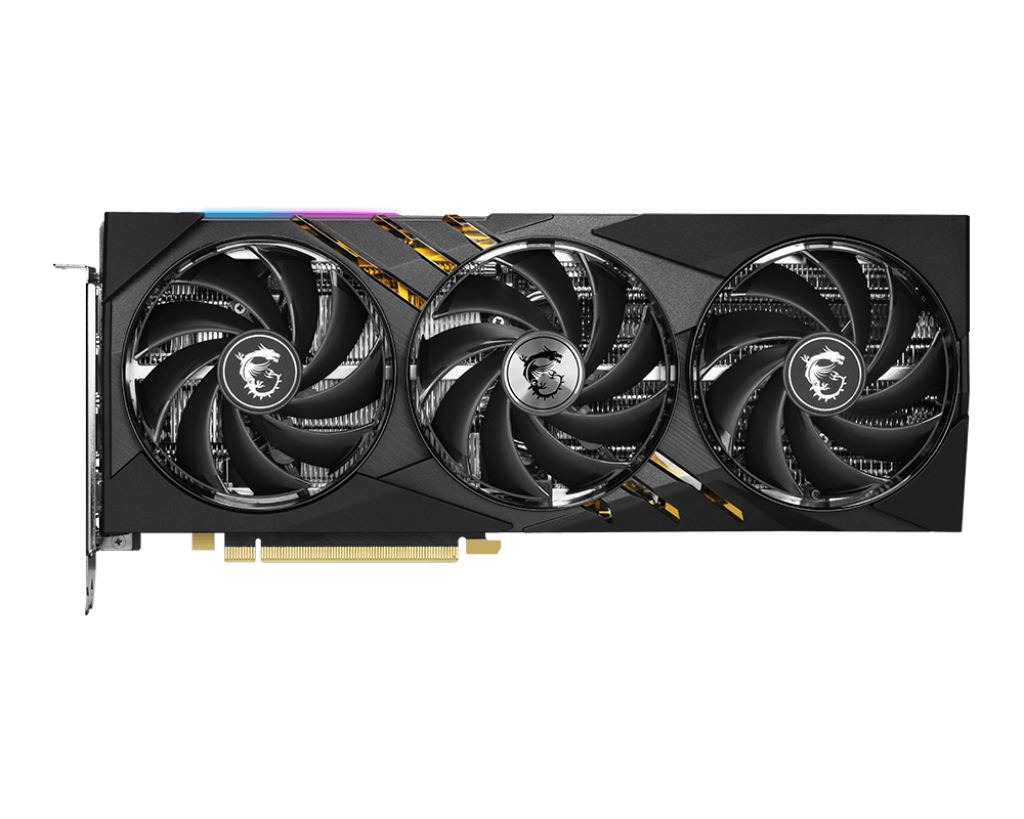

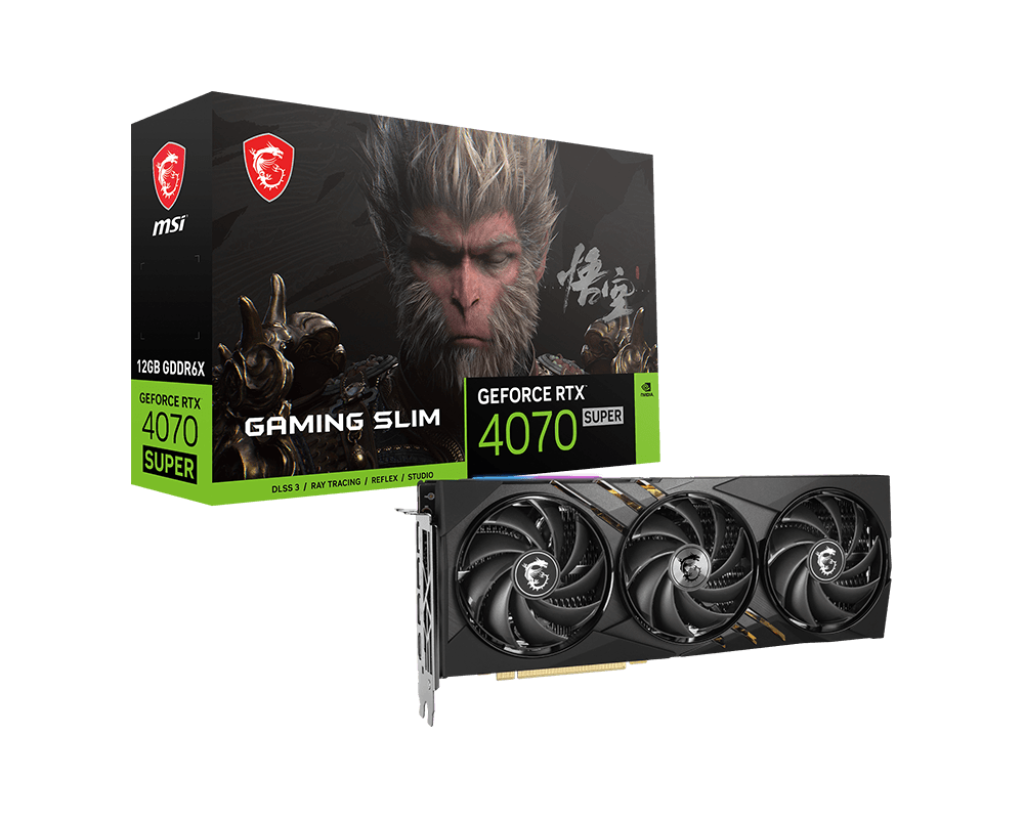

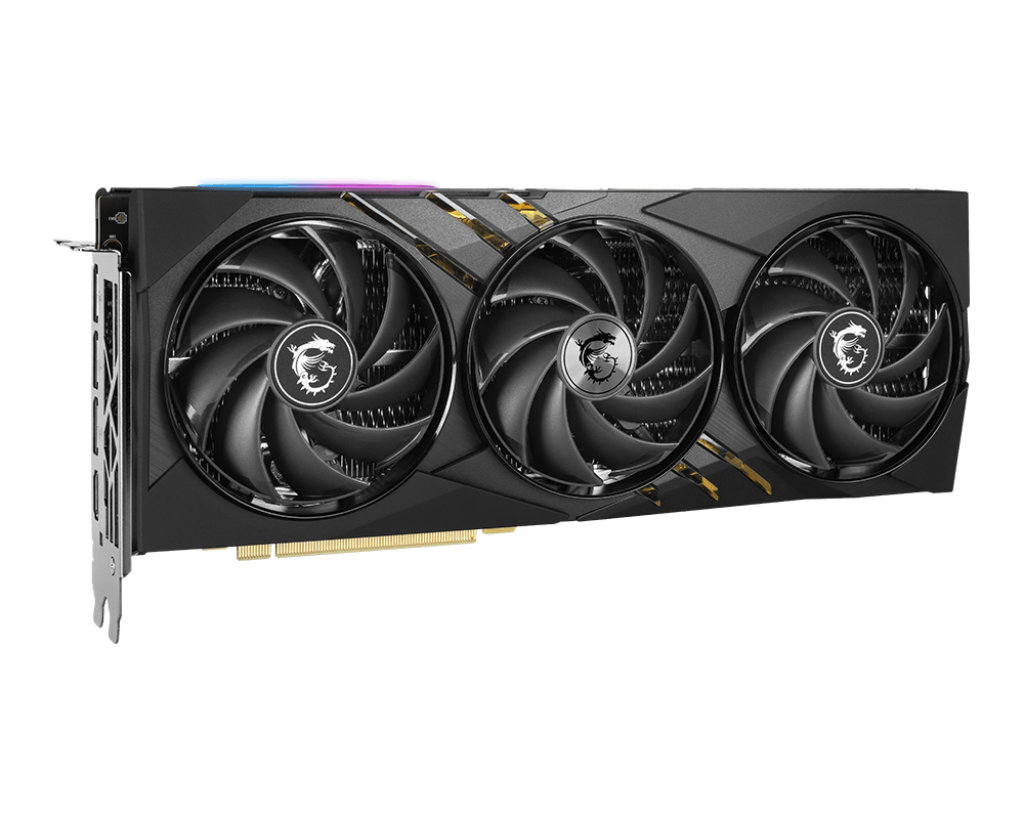

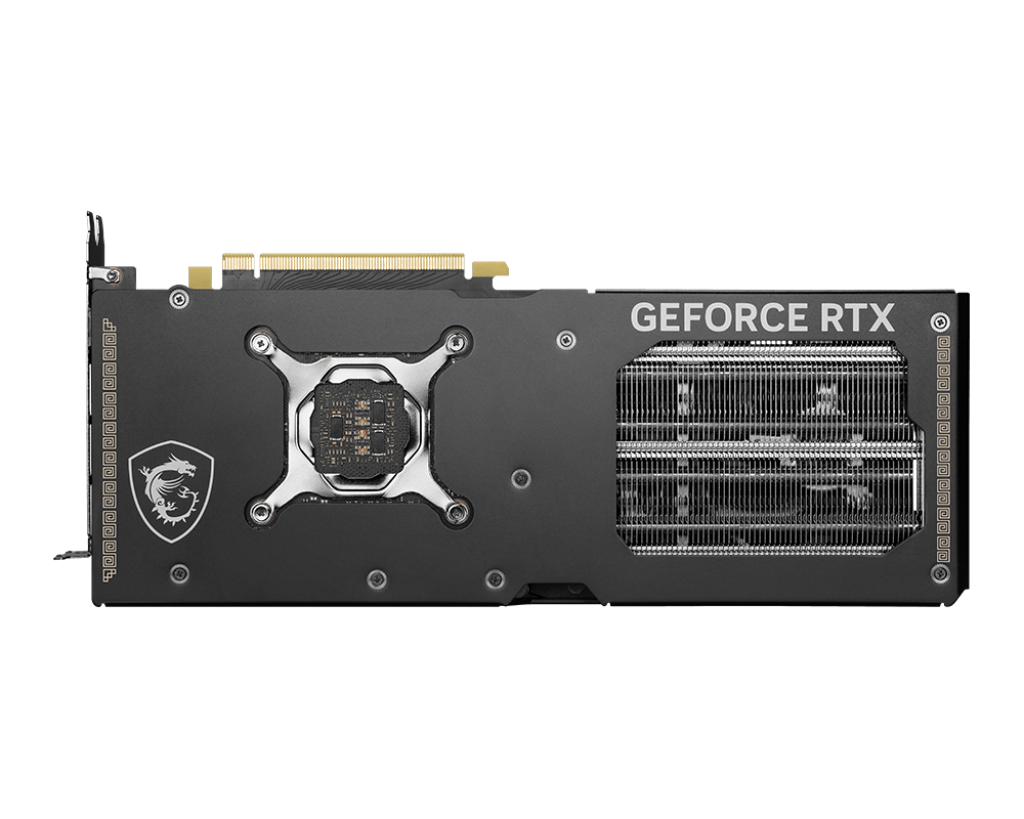

GeForce RTX 4070 SUPER 12G GAMING SLIM WUKONG EDITION
WITH DLSS 3
Get equipped for supercharged gaming and creating with the NVIDIA® GeForce RTX™ 4070 SUPER. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
- SFF-Ready Enthusiast GeForce Card
Boost Clock / Memory Speed
- 2475 MHz / 21 Gbps
- 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
TRI FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Specifications
-
MODEL NAME
GeForce RTX™ 4070 SUPER 12G GAMING SLIM WUKONG EDITION
-
GRAPHICS PROCESSING UNIT
NVIDIA® GeForce RTX™ 4070 SUPER
-
Interface
PCI Express® Gen 4
-
Core Clocks
Extreme Performance: 2490 MHz (MSI Center)
Boost: 2475 MHz -
CORES
7168 Units
-
Memory
12GB GDDR6X
-
Memory Bus
192-bit
-
Output
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a) -
HDCP Support
Y
-
Power consumption
220 W
-
Power connectors
16-pin x 1
-
RECOMMENDED PSU (W)
650 W
-
CARD DIMENSION(MM)
307 x 125 x 46 mm
-
Weight (Card / Package)
962 g / 1738 g
-
Maximum Displays
4
-
G-SYNC™ TECHNOLOGY
Y
-
Digital Maximum Resolution
7680 x 4320
