GeForce RTX 4060 Ti VENTUS 2X BLACK 8G OC
WITH DLSS 3 Game, stream, create. The GeForce RTX™ 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed
- 2565 MHz / 18 Gbps
- 8GB GDDR6
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

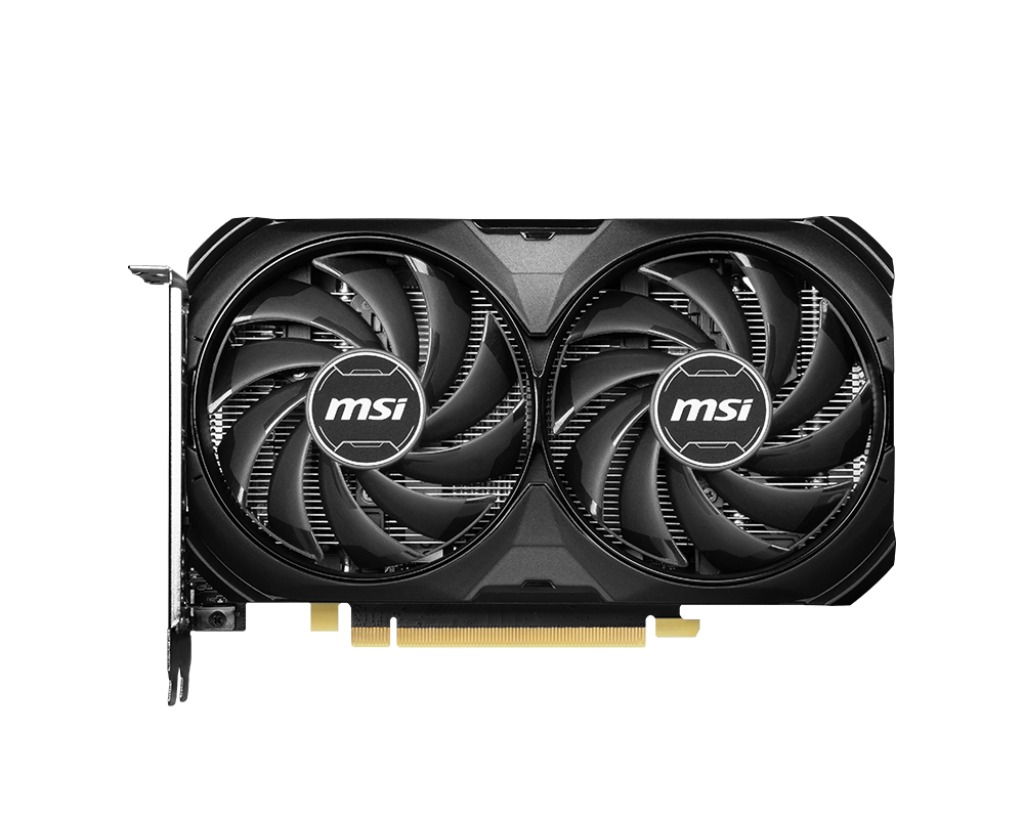

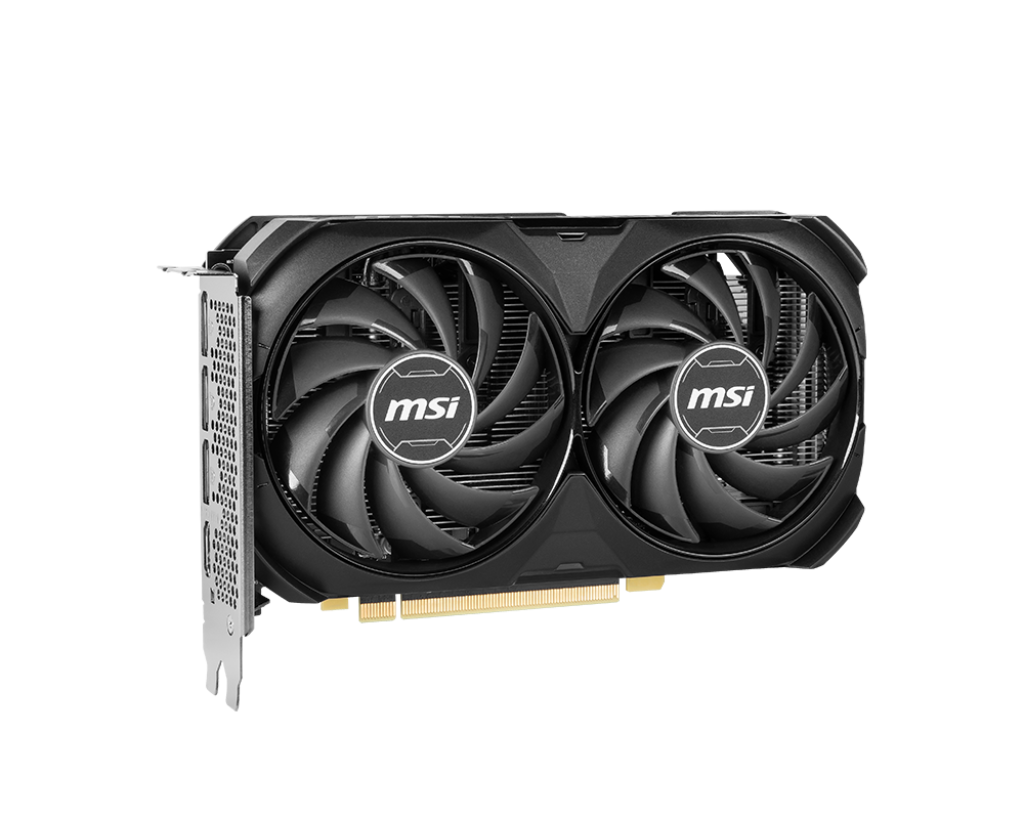

Dual Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.

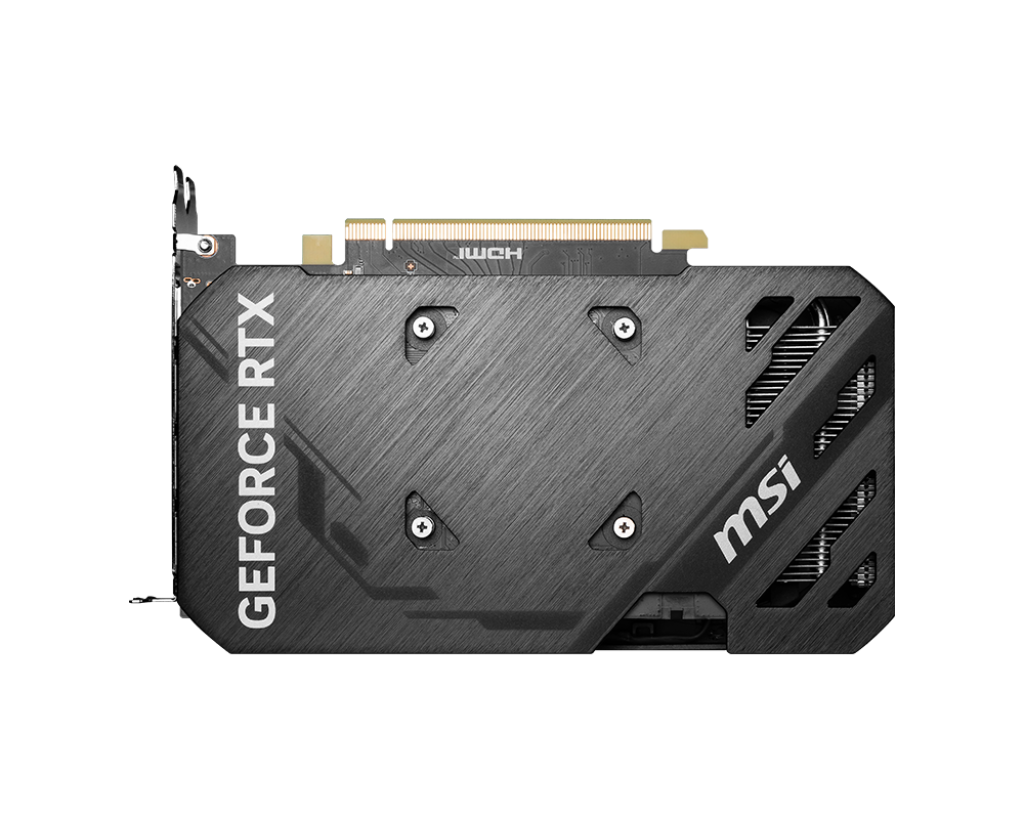

Reinforcing Backplate
- The reinforcing backplate features a flow-through design that provides additional ventilation.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Specifications
-
MODEL NAME
GeForce RTX™ 4060 Ti VENTUS 2X BLACK 8G OC
-
GRAPHICS PROCESSING UNIT
NVIDIA® GeForce RTX™ 4060 Ti
-
Interface
PCI Express® Gen 4 x16 (uses x8)
-
Core Clocks
Extreme Performance: 2580 MHz (MSI Center)
Boost: 2565 MHz
-
CUDA® CORES
4352 Units
-
Memory Speed
18 Gbps
-
Memory
8GB GDDR6
-
Memory Bus
128-bit
-

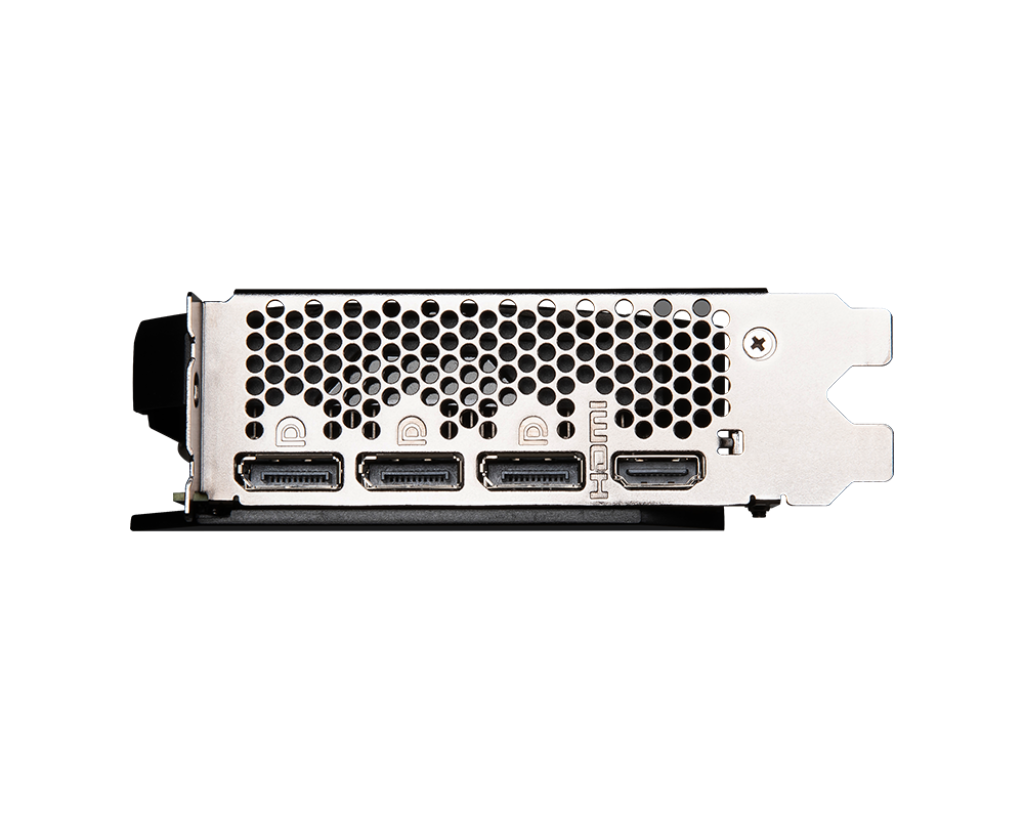

Output
DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)
-
HDCP Support
Y
-
Power consumption
160 W
-
Power connectors
8-pin x 1
-
Recommended PSU
550 W
-
Card Dimension (mm)
199 x 120 x 42 mm
-
Weight (Card / Package)
546 g / 783 g
-
DirectX Version Support
12 Ultimate
-
OpenGL Version Support
4.6
-
Maximum Displays
4
-
G-SYNC® technology
Y
-
Digital Maximum Resolution
7680 x 4320
