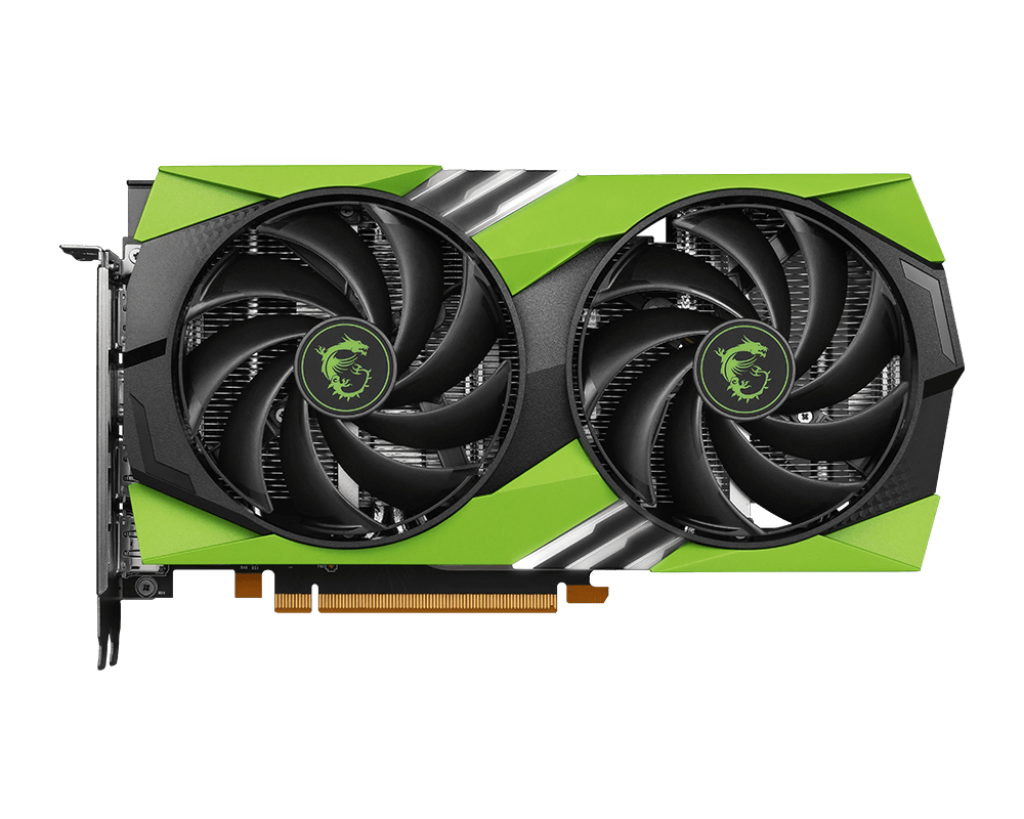

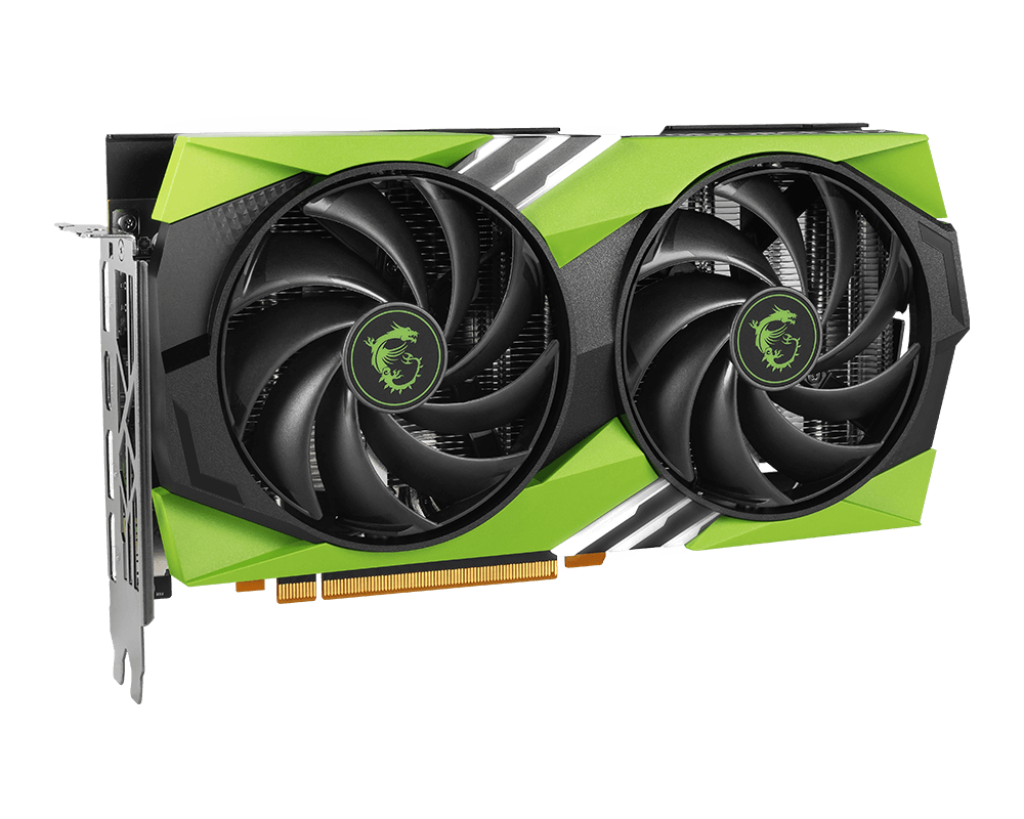

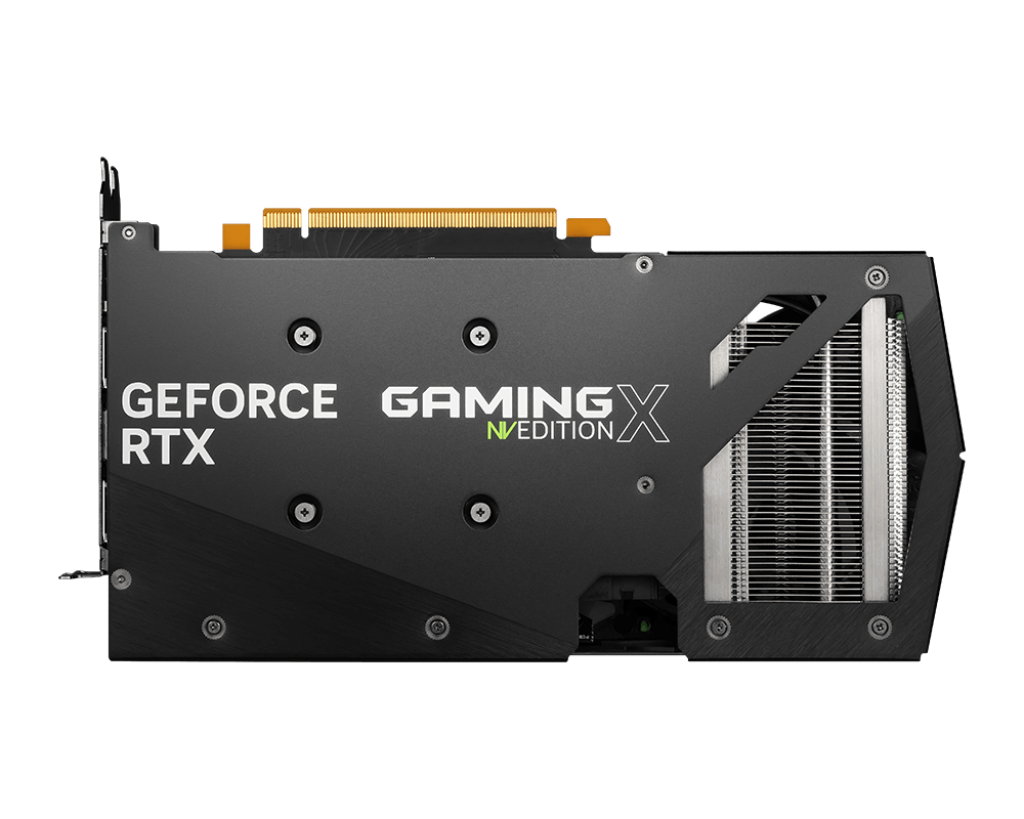

GeForce RTX 4060 GAMING X NV EDITION 8G
WITH DLSS 3 Game, stream, create. The GeForce RTX™ 4060 lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed
- 2595 MHz / 17 Gbps
- 8GB GDDR6
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
TWIN FROZR 9 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Specifications
-
MODEL NAME
GeForce RTX™ 4060 GAMING X NV EDITION 8G
-
GRAPHICS PROCESSING UNIT
NVIDIA® GeForce RTX™ 4060
-
INTERFACE
PCI Express® Gen 4 x 8
-
Core Clocks
Extreme Performance: 2610MHz (MSI Center)
Boost: 2595 MHz -
CUDA® CORES
3072 Units
-
Memory Speed
17 Gbps
-
Memory
8GB GDDR6
-
Memory Bus
128-bit
-
Output

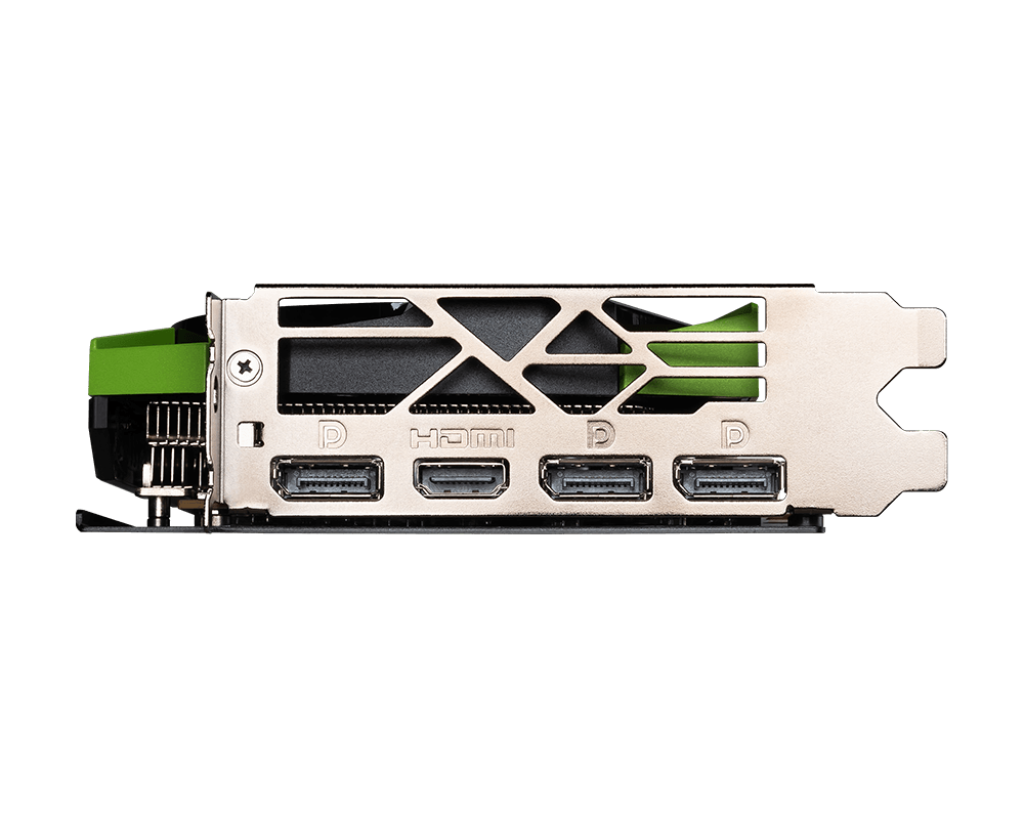

DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a) -
HDCP Support
Y
-
Power consumption
115 W
-
Power Connectors
8-pin x 1
-
Recommended PSU
550 W
-
Card Dimension (mm)
247 x 130 x 41 mm
-
Weight (Card / Package)
627 g / 1055 g
-
DirectX Version Support
12 Ultimate
-
OpenGL Version Support
4.6
-
Maximum Displays
4
-
G-SYNC® technology
Y
-
Digital Maximum Resolution
7680 x 4320
