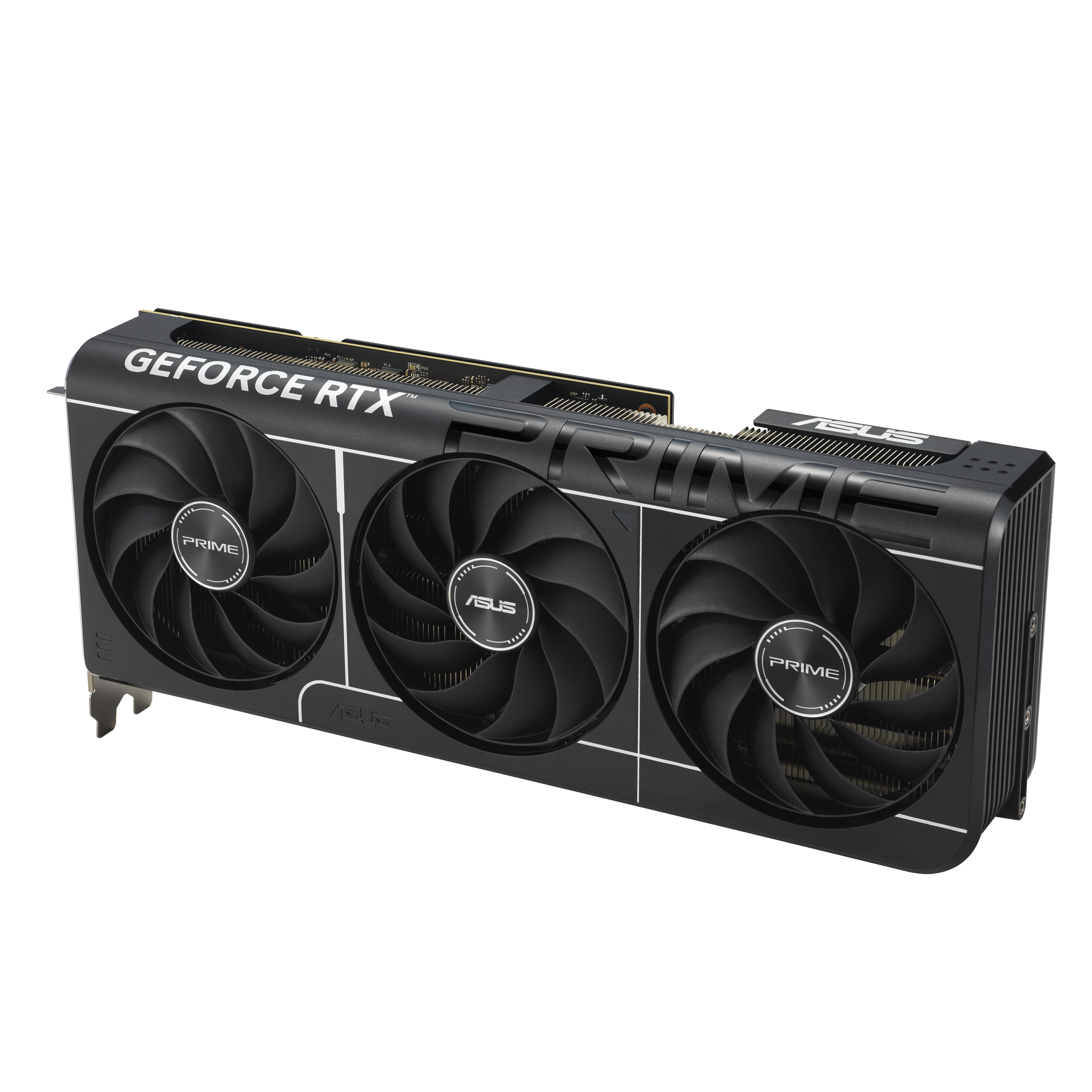

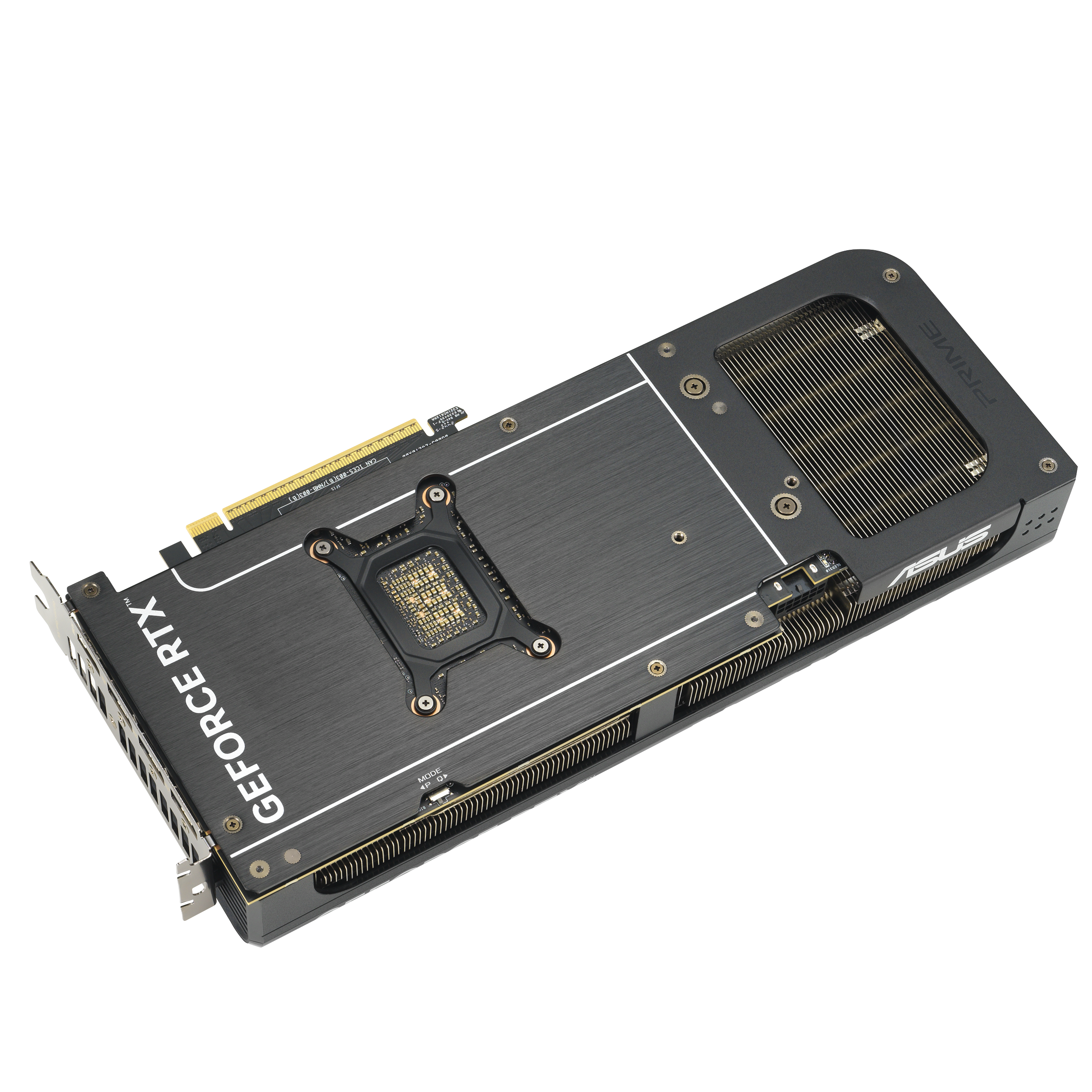

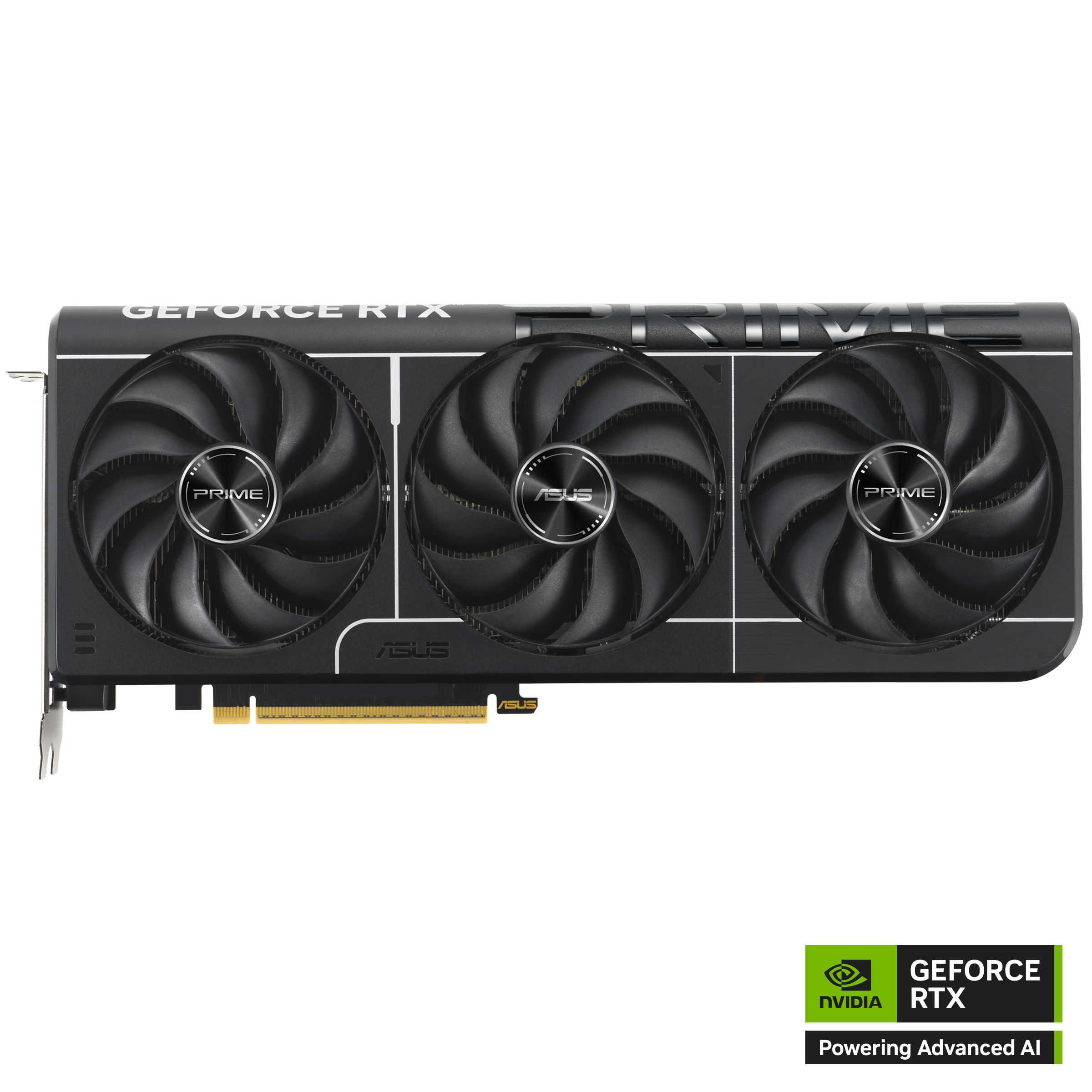

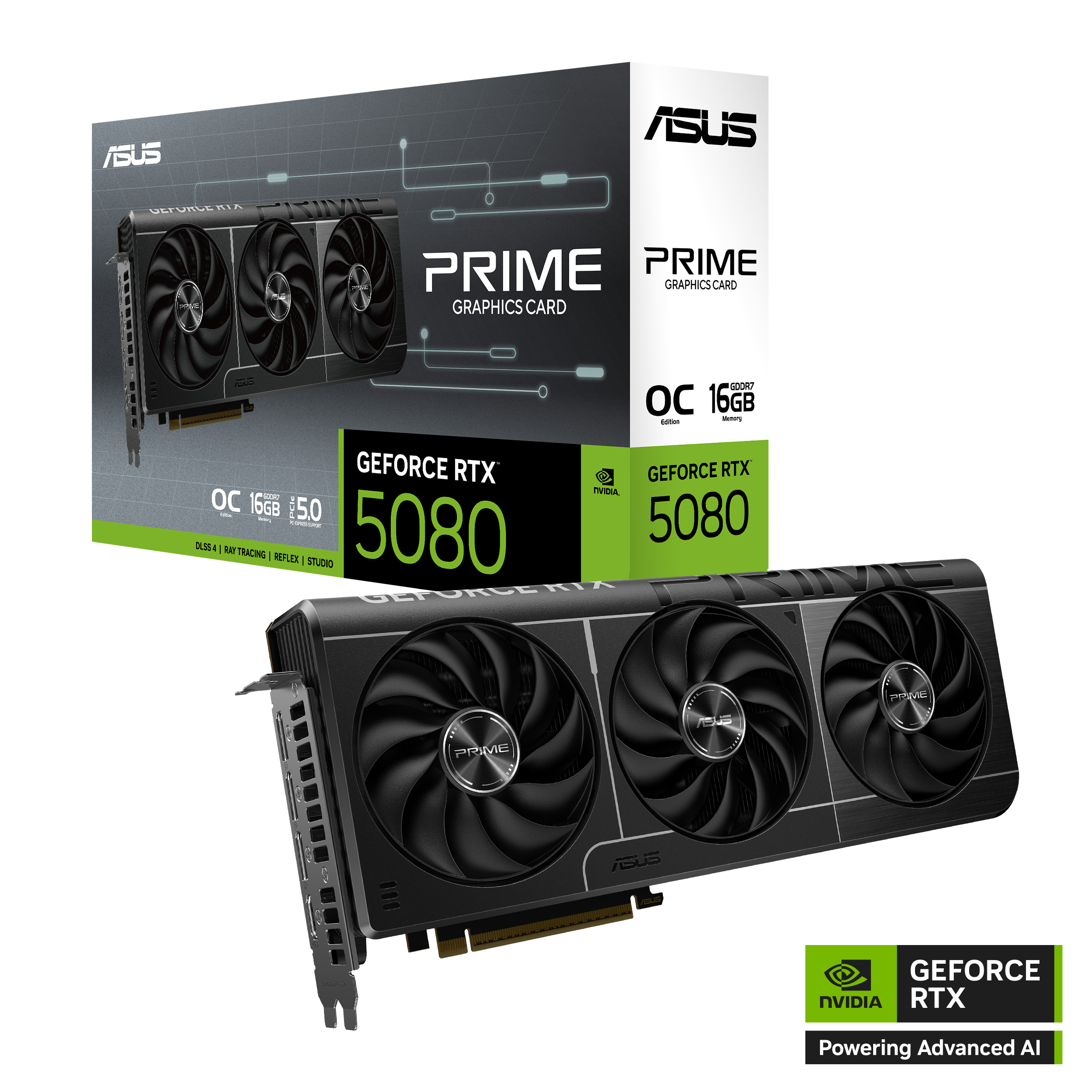

ASUS PRIME GeForce RTX™ 5080 16GB GDDR7 OC Edition

Specifications

• Graphic Engine

  NVIDIA® GeForce RTX™ 5080

• AI Performance

  1827 TOPs

• Bus Standard

  PCI Express 5.0

• OpenGL

  OpenGL®4.6

• Video Memory

  16GB GDDR7

• Engine Clock

  OC mode: 2685 MHz
  Default mode: 2655 MHz (Boost Clock)

• CUDA Cores

  10752

• Memory Speed

  30 Gbps

• Memory Interface

  256-bit

• Resolution

  Digital Max Resolution 7680 x 4320

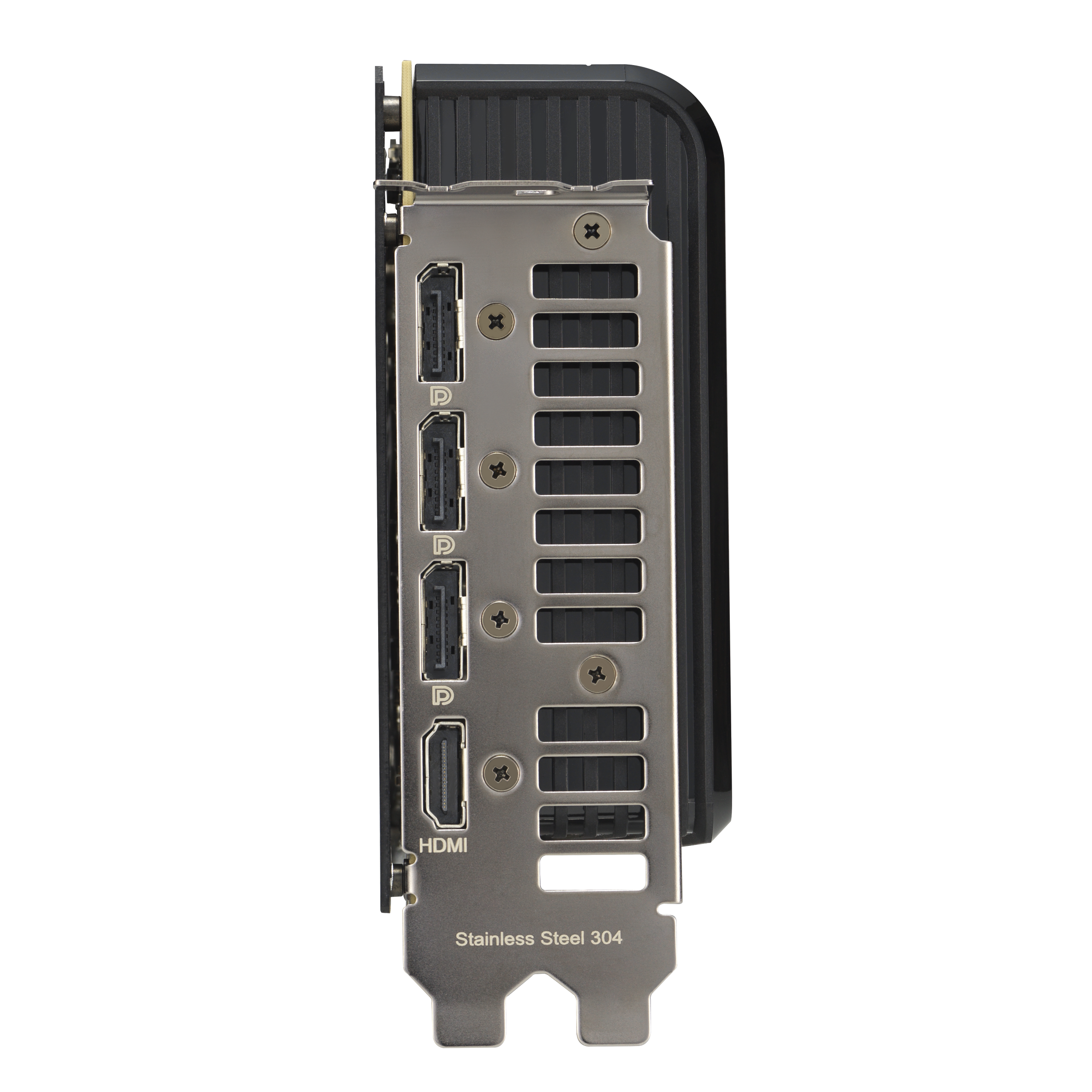

• Interface

  Yes x 1 (Native HDMI 2.1b)
  Yes x 3 (Native DisplayPort 2.1b)
  HDCP Support Yes (2.3)

• Maximum Display Support

  4

• NVlink/ Crossfire Support

  4

• Accessories

  1 x Speedsetup Manual
  1 x ASUS Velcro Hook & Loop
  1 x Thank You Card
  1 x Adapter Cable (1 to 3)
  1 x Speedsetup Manual
  1 x ASUS Velcro Hook & Loop
  1 x Thank You Card
  1 x Adapter Cable (1 to 3)

• Software

  ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

• Dimensions

  304 x 126 x 50 mm
  12 x 5 x 2 inch
  304 x 126 x 50 mm
  12 x 5 x 2 inch

• Recommended PSU

  850W

• Power Connectors

  1 x 16-pin

• Slot

  2.5 Slot

• SFF Ready

  Compatible

• Note

  * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
  * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
  * Maximum Display Support is specifically applied to simultaneous display situation.
  * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
  * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
  * Maximum Display Support is specifically applied to simultaneous display situation.
