ASUS Prime 850W Gold
Overview
Specifications

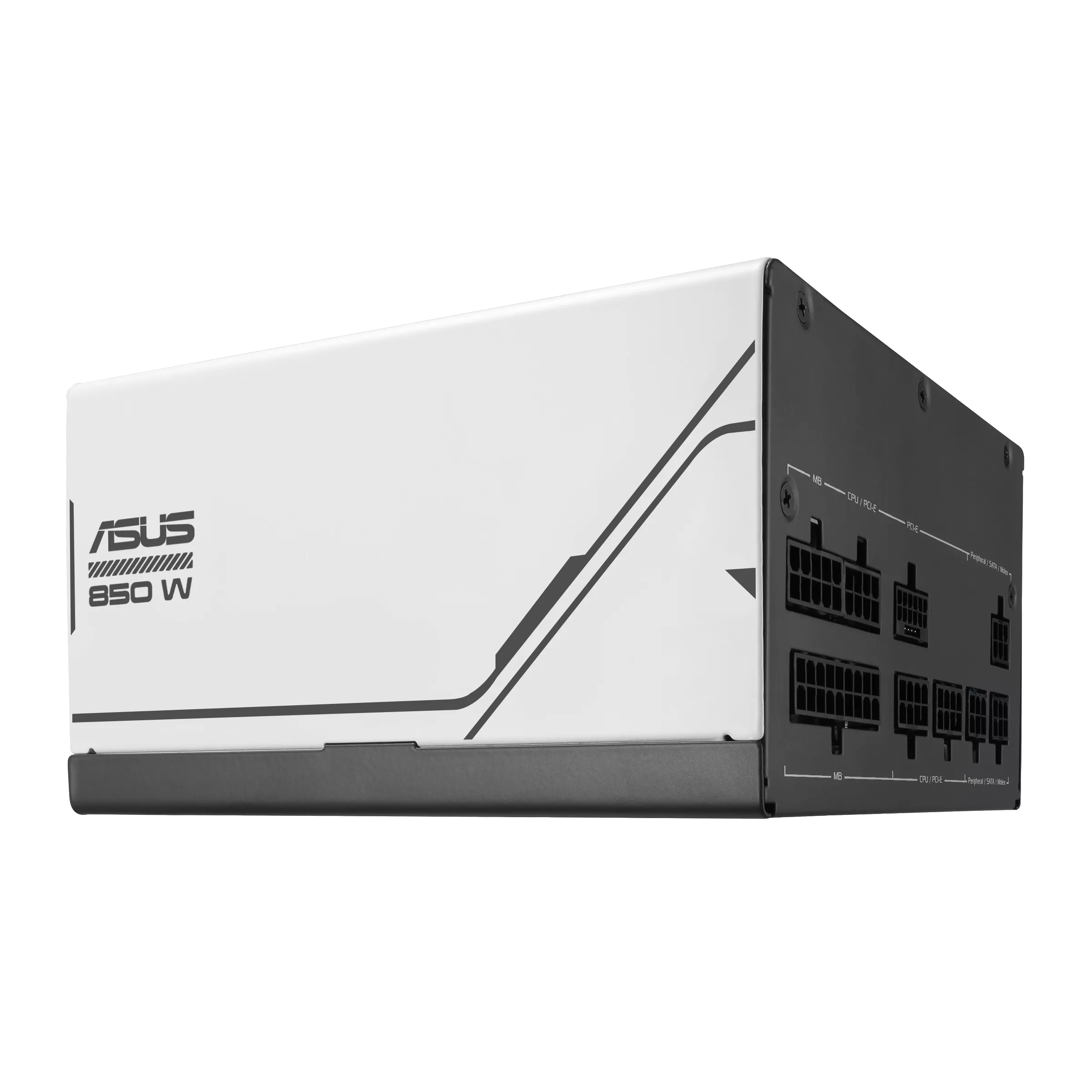

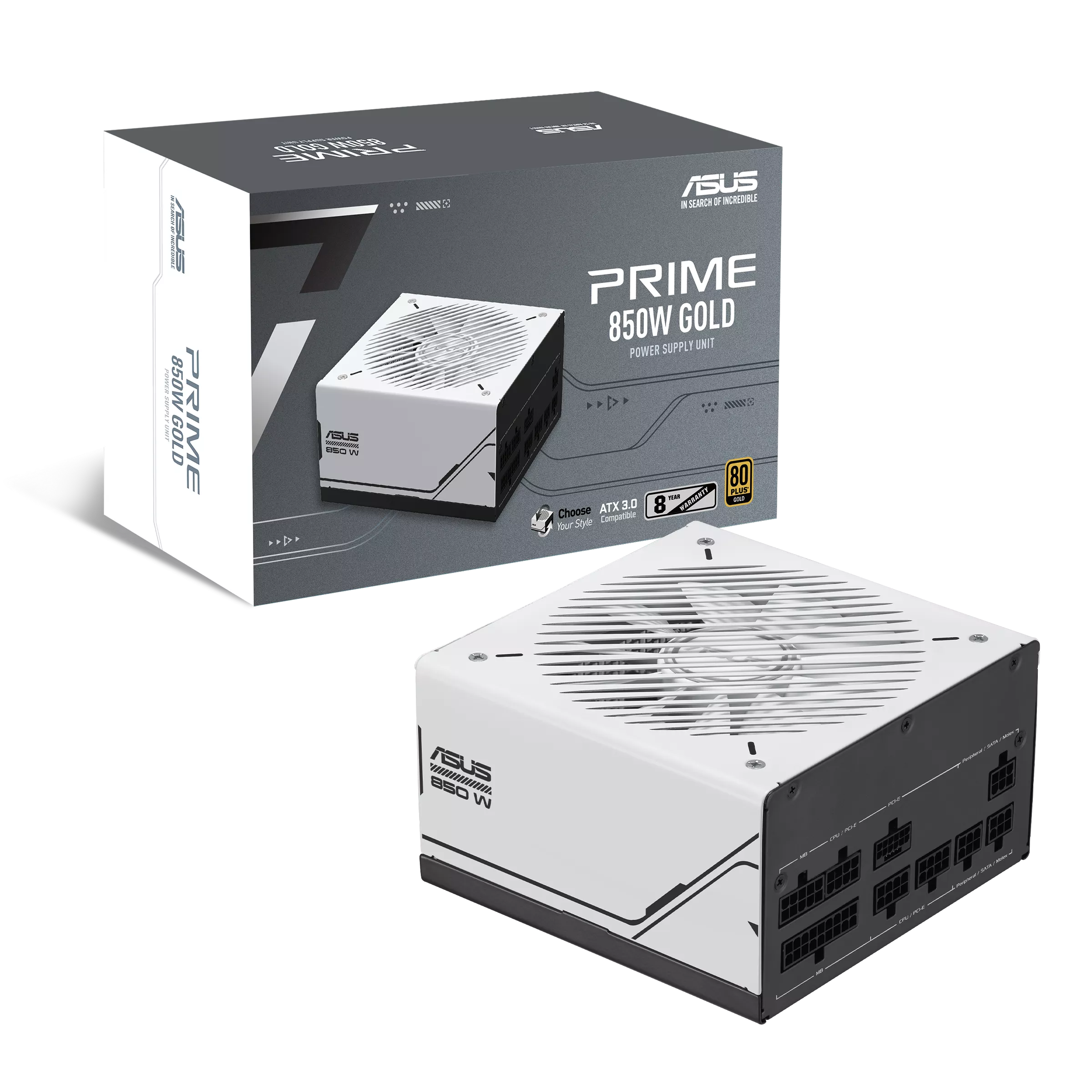

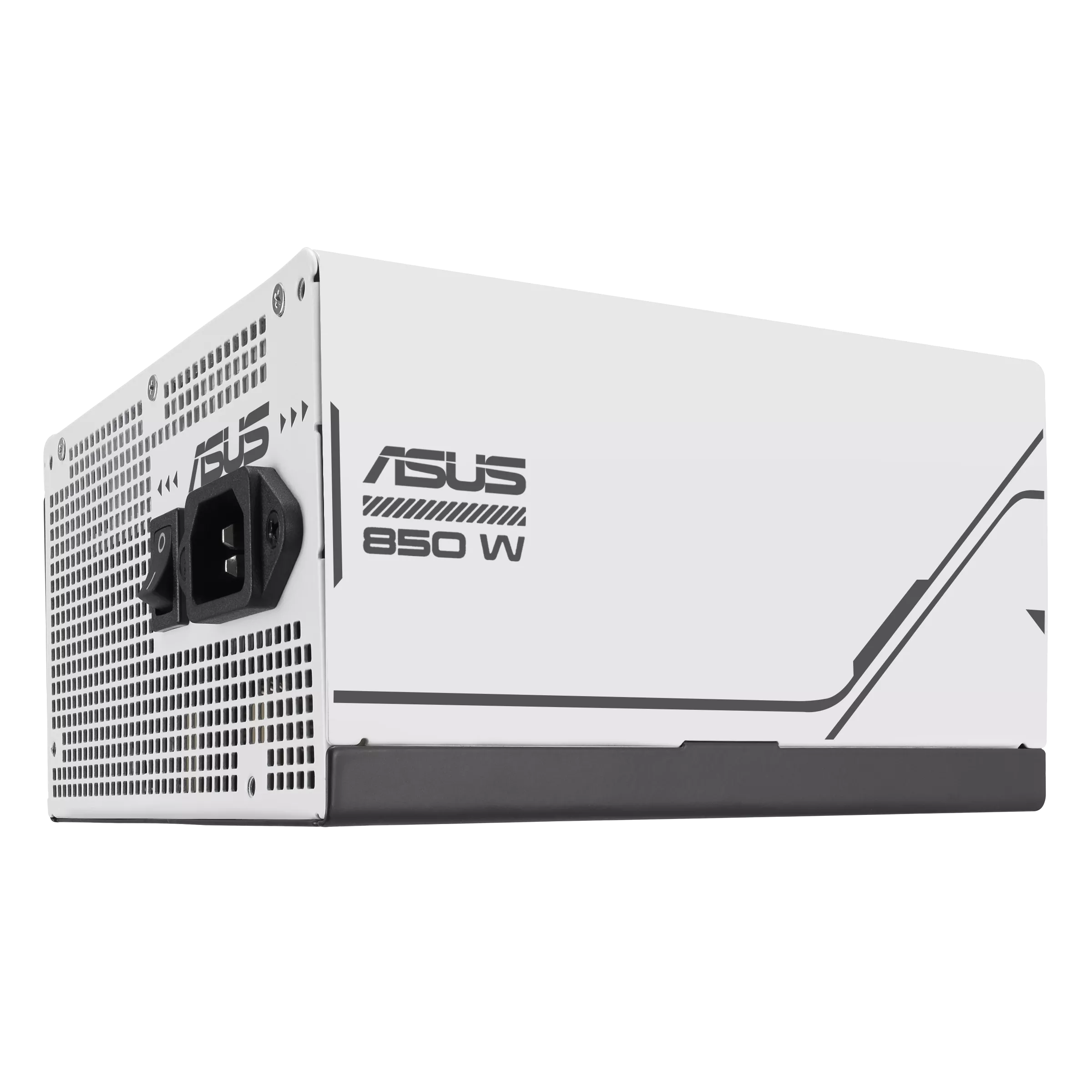

ASUS Prime 850W Gold

ASUS Prime 850W Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs

  • Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.
  • An 80 Plus gold certification is the result of low-ESR capacitors and other premium components.
  • ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards.
  • 8-year warranty included.
Product Image

Specifications

  • MODEL

    AP-850G

  • Intel Form Factor

    ATX12V

  • PFC TYPE

    Active PFC

  • ATX 3.0

    Yes

  • Dimensions

    150 x 150 x 86 mm

  • Efficiency

    80Plus Gold

  • Protection Features

    OPP/OVP/UVP/SCP/OCP/OTP

  • Hazardous Materials

    ROHS

  • AC Input Range

    100-240Vac

  • DC Output Voltage

    +3.3V +5V +12V -12V +5Vsb

  • Maximum Load

    20A20A70.5A 0.3A 2.5A

  • Combined Load

    110W 110W 846W 3.6W 12.5W

  • Total Output

    850W

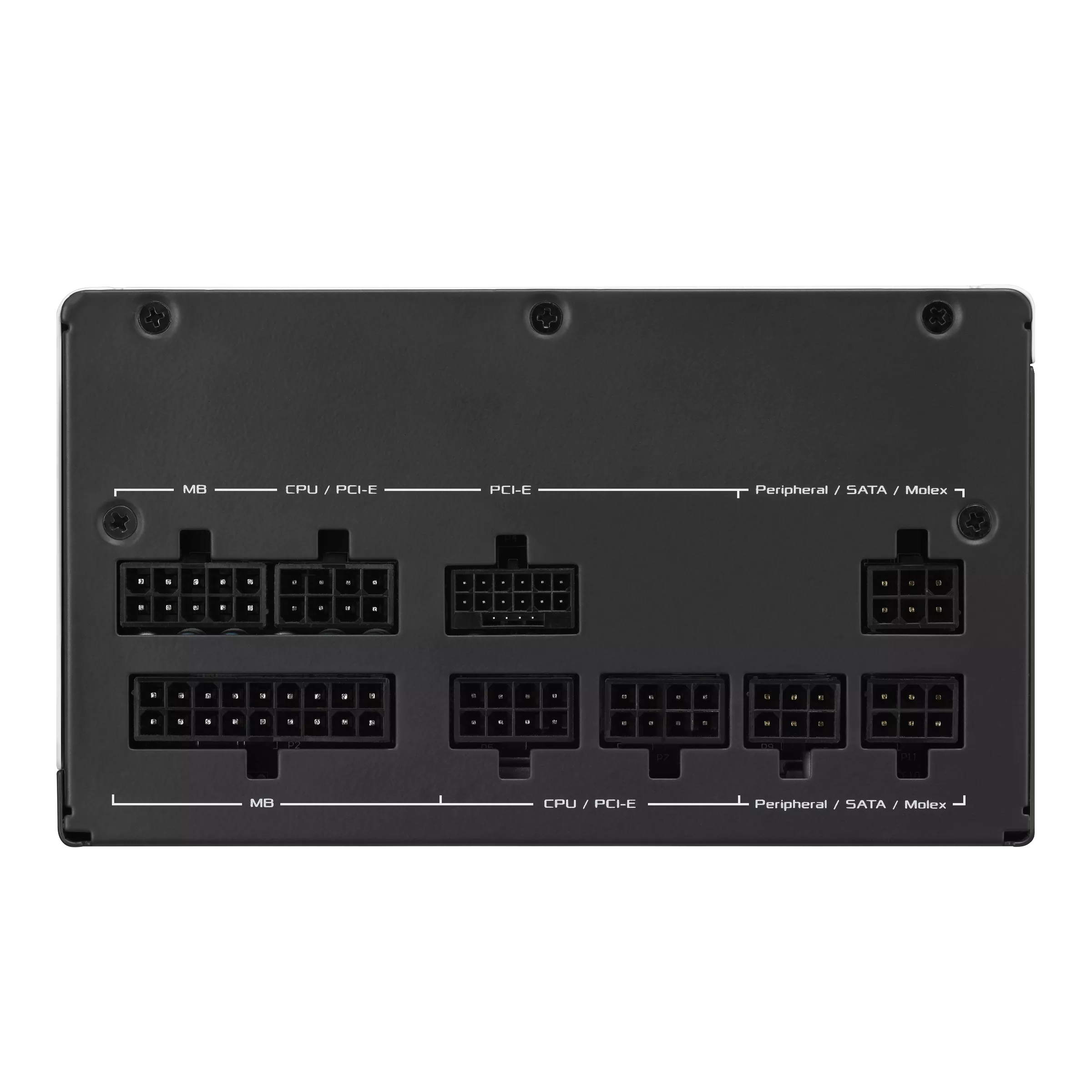

  • Cable Connectors

    MB 24/20-pin x 1
    CPU 4+4-pin x 2
    PCI-E 16-pin x 1 (both PSU & connector side)
    PCI-E 8-pin x 3
    SATA x 5
    PERIPHERAL x 3

  • Package Contents

    Power Cord x 1
    Motherboard Power Cable x 1 (610mm)
    CPU Cable x 2 (650mm)
    PCI-E Gen 5 16-pin Cable x 1 (675mm)
    PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
    PCI-E 1-to-1 Cable x 1 (675mm)
    SATA 1-to-2 Cable x 1 (400+120mm)
    SATA 1-to-3 Cable x 1 (400+120+120mm)
    Peripheral 1-to-3 Cable x 1 (400+150+150mm)
    User Manual x 1

  • Weight

    1.502 kg (single PSU)

  • 0dB Technology

    No
