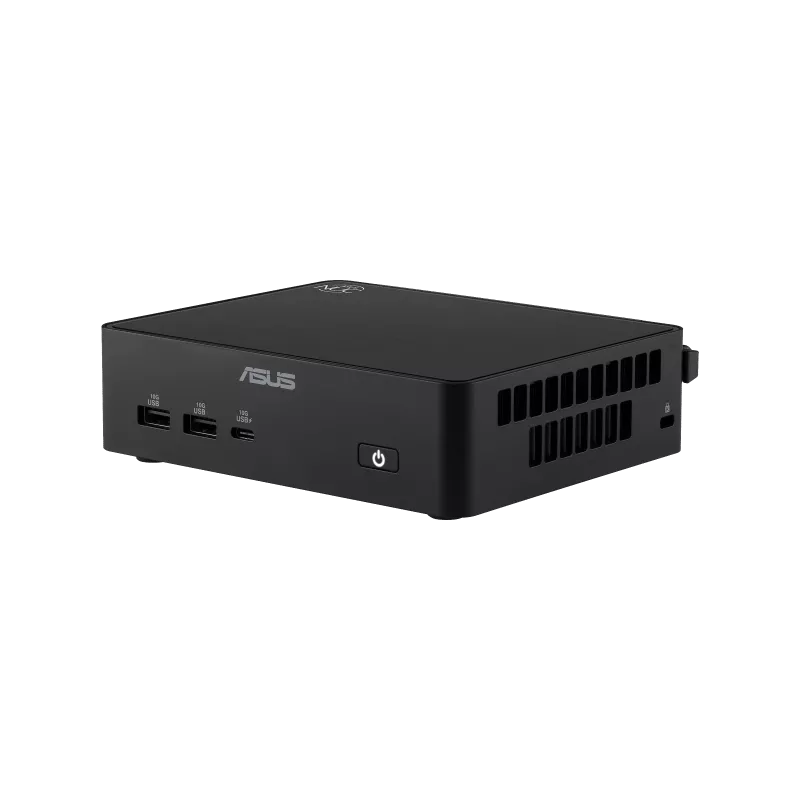

ASUS NUC 16 Pro
ASUS NUC 16 Pro Mini PCs, Kits, and Boards delivers high-performance Intel® Core™ Ultra Series 3 processor, enabling AI development, machine learning training, and advanced data analysis for organizations building intelligent solutions.
- Intel® Core™ Ultra 5 and 7 units support up to 128GB CSO-DIMM DDR5.
- Wi-Fi 7, Bluetooth 6.0, and dual 2.5G LAN provide low-latency, redundant, and secure connectivity for enterprise and Edge AI.
- Intel vPro® (select SKUs), fTPM, and ASUS management tools enable hardware-level security, remote monitoring, and fleet control.
- Compact 5×4 chassis with Tool-less 2.0 design supports dual M.2 Gen5/Gen4 SSDs, maximizing airflow, flexibility, and performance.
Specifications
-
MODEL NAME
NUC16GDKU5
-
CPU
Intel® Core Ultra 5 (325) Up to 45W TDP
-
Graphics
Intel® Graphics
-
Memory
Dual Channel DDR5 CSO-DIMM (Up-to 128GB)
-
Storage
2x M.2 2280 key M slots (1x PCIe x4 Gen5, 1X PCIe x4 Gen4) supports 128GB~8TB NVMe SSDs
-
WIRELESS LAN & BLUETOOTH
Intel® Wi-Fi 7; Bluetooth 6.0; 2x 2.5G LAN
-
Security
Intel® Platform Trust Technology (fTPM 2.0)
-
Front I/O Ports
1x USB 3.2 Gen2x1 Type-C (10Gbps) 2x USB 3.2 Gen2 TypeA(10Gbps)
-
Back I/O Ports
2x USB 3.2 (10Gbps) 2x USB-C Thunderbolt® 4 2x RJ45 2x HDMI(3) or 2x DP 2.1 1x DCIN
-
KENSINGTON LOCK
Y
-
DISPLAY SUPPORT
Up to Quad Extended Displays (Support Power Sync with HDMI Sku)
-
Audio
Digital audio on HDMI and DP type C ports. Up to 7.1 multichannel (or 8-channel)
-
Chipset
-
Operating System
Win 11 Home 64-bit; Win 11 Pro 64-bit;Win11 Home NextGen Premium
-
Power Connector
120W-150W AC adaptor
-

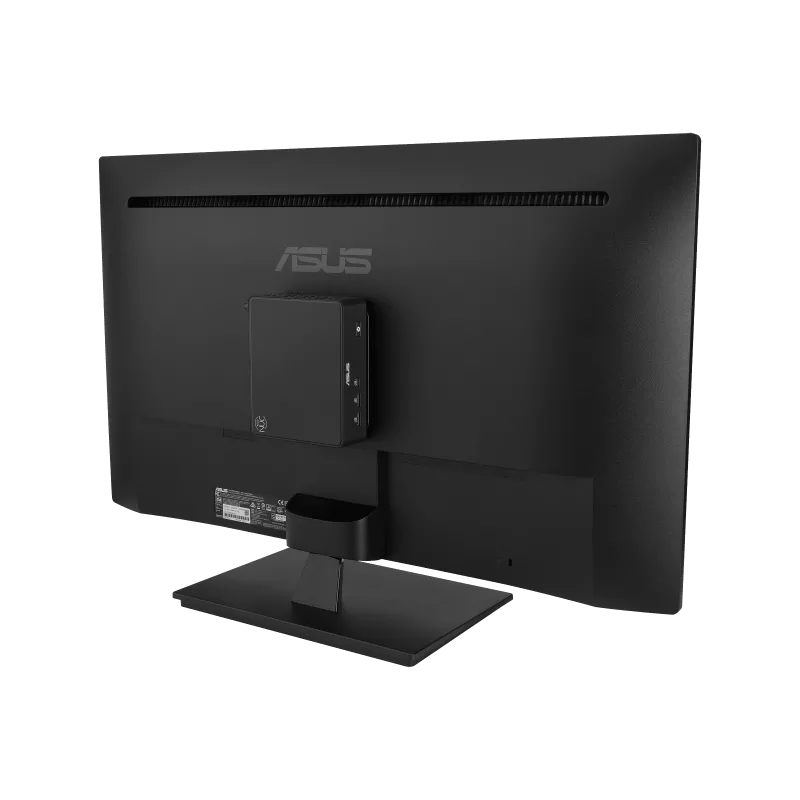

VESA MOUNTING
Y
-
Features

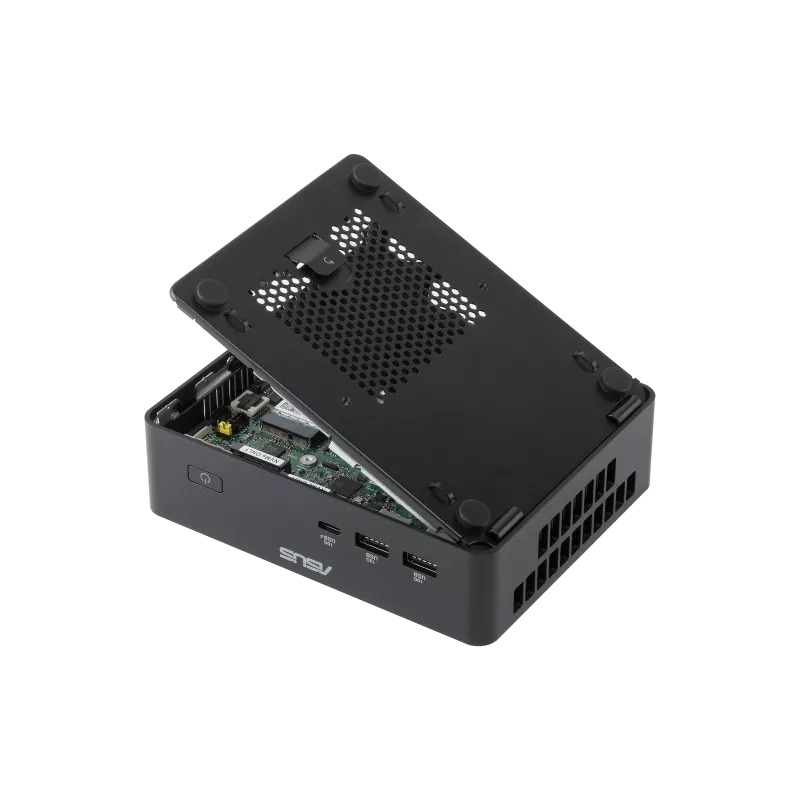

Tool-less 2.0 design with spring-loaded
-
Operating Temperature Range
Operating Temp: 0–40°C; Storage Temp: -40 to 60°C; Humidity(6) : 0%–92% (non-condensing); Noise Level: Max. 38 dBA (0 RPM under idle)
-
Dimensions
144 x 117 x 42mm(5x4 Chassis, Mini PC & Kits) 127x110mm (Board)
-
Product Weight
750~910g (Mini PC) 700~730g (Kits) 330~410g (Board)
