ASUS NUC 15 Pro

  • Powered by Intel® Core™ Ultra processors (Series 2), delivering up to 99 Platform TOPS and an 18% boost in performance gen-on-gen.
  • Supports up to 96GB dual-channel DDR5-6400 memory for seamless multitasking and high-speed workloads.
  • Features Intel® Arc™ Graphics for AI acceleration and stunning visual performance, with Intel® vPro® for enterprise-grade security and management for selected SKUs.
  • Includes PCIe Gen5 NVMe SSD and Gen4 expansion slots for ultra-fast storage and flexibility.
  • Connects up to four 4K displays via dual HDMI 2.1 and Thunderbolt™ 4 with DisplayPort 2.1 and USB4 compatibility.
  • Offers advanced connectivity with Intel® Wi-Fi 7, Bluetooth® 5.4, and multiple high-speed USB 3.2 Gen2 ports.
  • Compact 0.48L design with tool-less chassis enables quick upgrades and effortless deployment.
  • Built for reliability with MIL-STD-810H certification, efficient cooling, and eco-friendly packaging for sustainability.
  • Enables synchronized power-on/off with compatible monitors via ASUS Power Sync, ideal for commercial, kiosk, and medical use where device buttons are hard to reach." at the KSP highlight list.

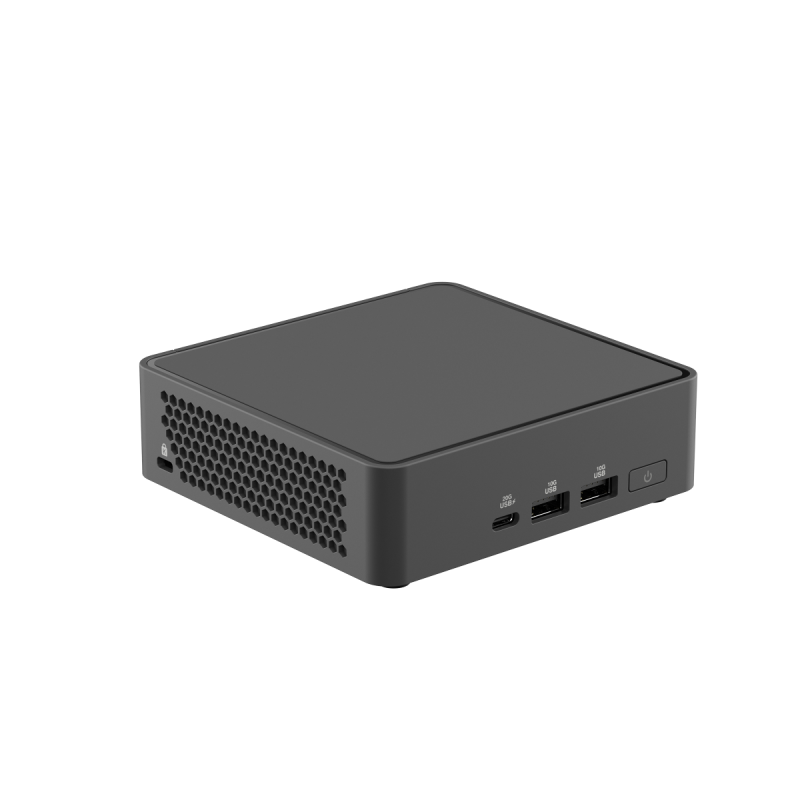

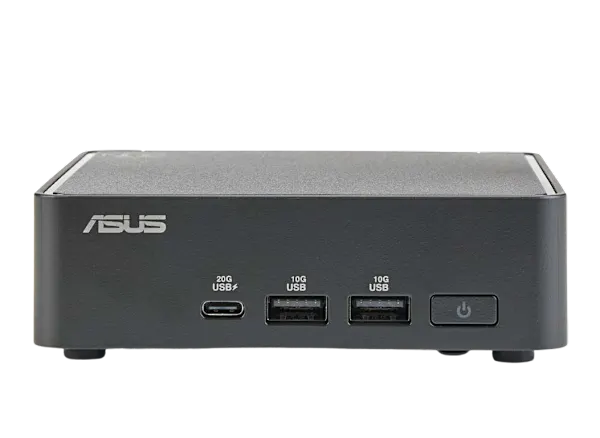

Product Image

Specifications

  • CPU

    Intel® Core™ 5 Processor 210H
    Intel® Core™ 7 Processor 240H
    Intel® Core™ Ultra 5 225H
    Intel® Core™ Ultra 7 255H

  • Chipset

    Integrated

  • Graphics

    *Intel® Arc™ GPU requires using 2 x SO-DIMM
    Intel® Arc™ GPU (Core Ultra)
    Intel® Graphics

  • Memory

    Max Capacity:
    48GB DDR5-5600 SO-DIMM x 2
    or
    48GB DDR5-6400 CSO-DIMM x 2

  • Storage

    Support:
    Slot 1: 128GB~8TB M.2 2280 NVMe™ PCIe® 5.0 x 4 SSD (Core Ultra Series CPU) or
    Slot 1: 128GB~8TB M.2 2280 NVMe™ PCIe® 4.0 x 4 SSD (Core Series CPU)
    Slot 2: 128GB~2TB M.2 2242 NVMe™ PCIe® 4.0 x 4 SSD

  • Wireless Data Network

    *Bluetooth® version may change with different OS version.
    Intel® Wi-Fi 7 BE202, Bluetooth 5.4
    Intel® Wi-Fi 7 BE201, Bluetooth 5.4

  • LAN

    Intel® Ethernet Controller I226-V, 2.5G
    Intel® Ethernet Controller I226-LM, 2.5G

  • Front(Side) I/O Ports

    1 x USB 3.2 Gen2x2 Type-C
    2 x USB 3.2 Gen2 Type-A
    1 x Kensington Lock (Side)

  • Back Panel I/O Ports

    2 x HDMI 2.1 TMDS Compatible (4K@60Hz)
    2 x Thunderbolt™ 4 ports (incl. DP 2.1 and USB4)
    1 x USB 3.2 Gen2 Type-A
    1 x USB 2.0 Type-A
    1 x RJ45 LAN
    1 x DC-in

  • Power Supply

    19VDC, 6.32A, 120W Power Adapter

  • Dimensions

    117mm x 112mm x 37mm

  • Product Weight

    500g

  • Accessories

    *Power cord included is region specific, and some SKUs do not include the power cord
    AC Adapter+Power Cord*
    VESA Bracket and Screws
    Cable Clip
    Safety/Caution/Regulatory Insert
    Warranty Card
