ASUS Dual Radeon RX 6500 XT V2 OC Edition 4GB GDDR6

ASUS Dual Radeon™ RX 6500 XT V2 OC Edition 4GB GDDR6 with two powerful Axial-tech fans and a 2-slot design for broad compatibility

  • OC edition: up to 2820 MHz (Boost Clock)/up to 2670 MHz (Game Clock)
  • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
  • A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
  • A protective backplate prevents PCB flex and trace damage.
  • Auto-Extreme technology uses automation to enhance reliability.

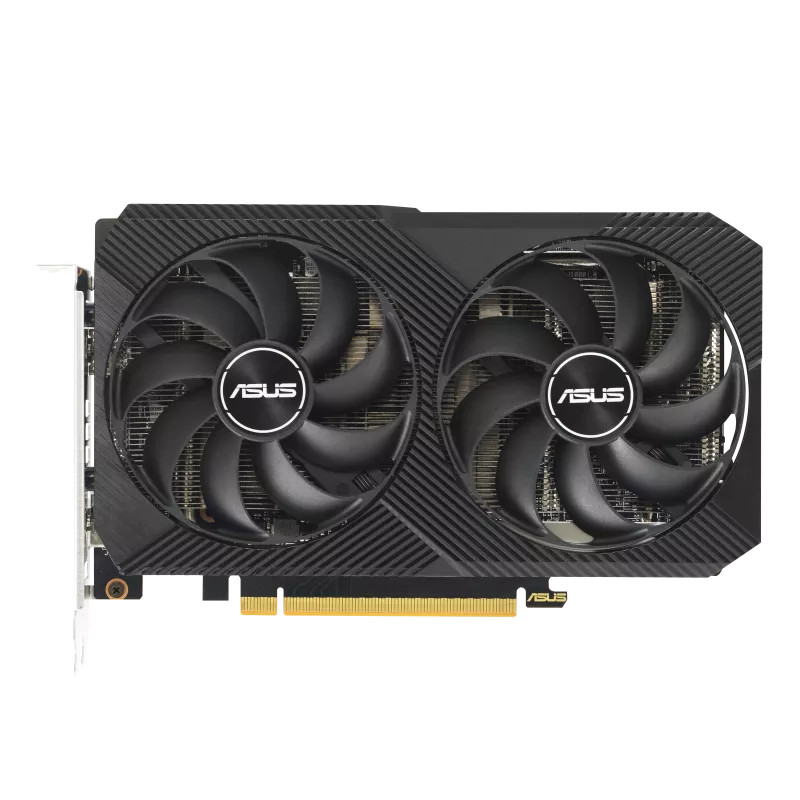

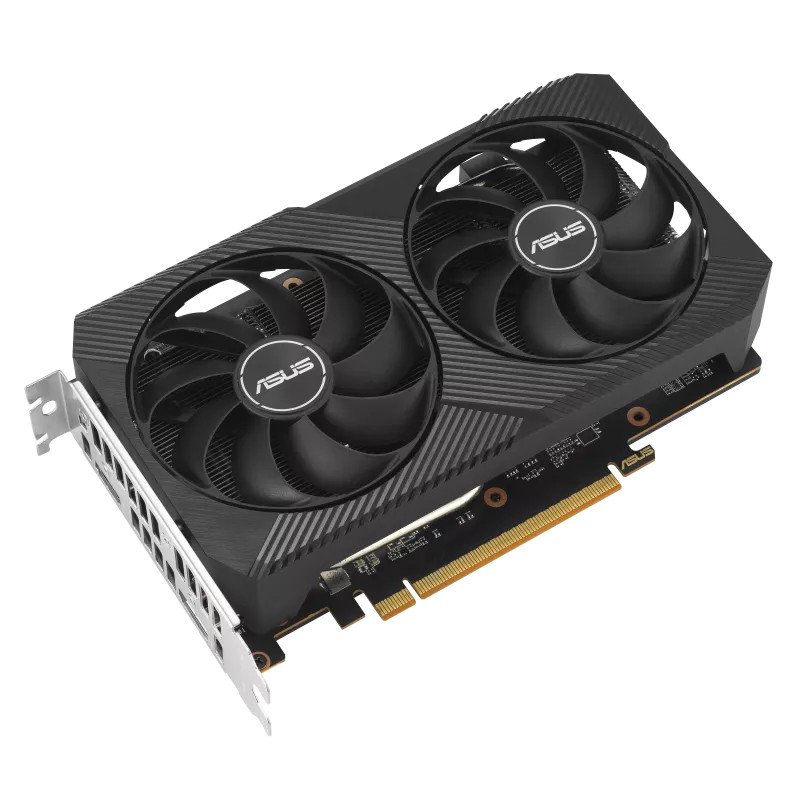

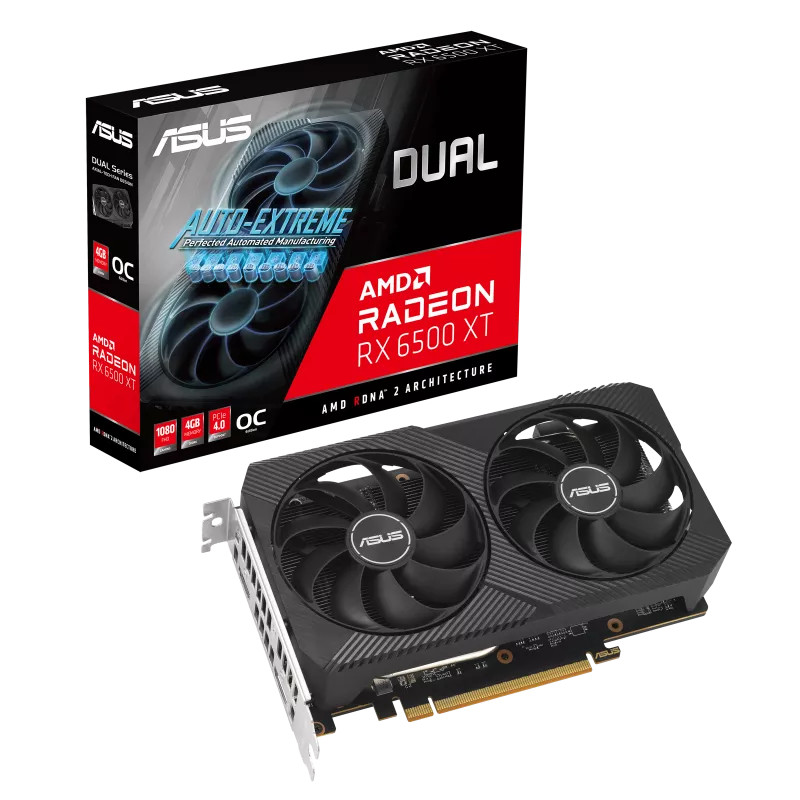

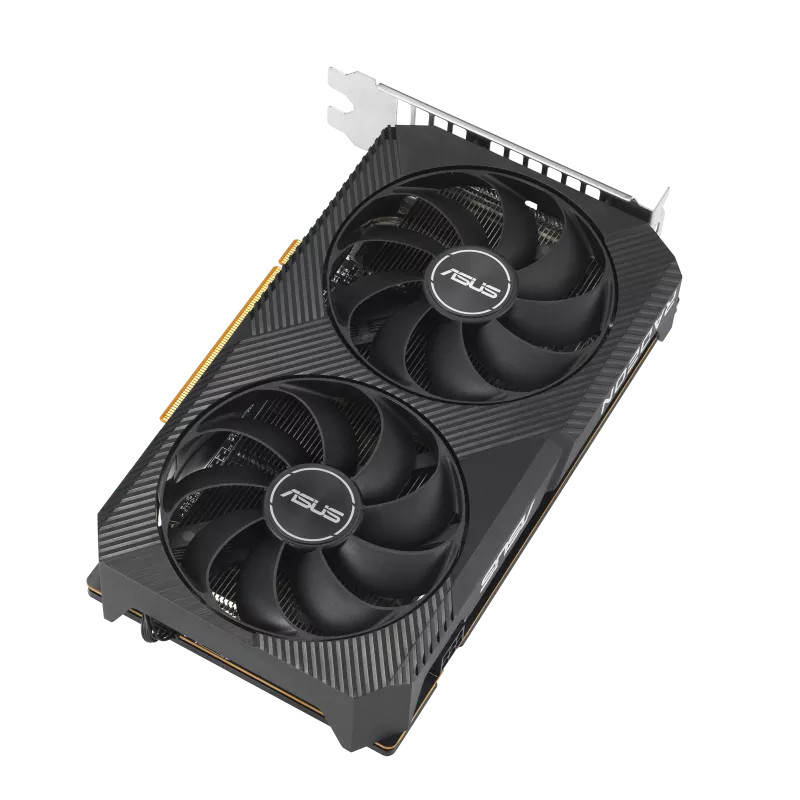

Product Image

Specifications

  • Chipset

    DUAL-RX6500XT-O4G-V2

  • Graphic Engine

    Radeon RX 6500 XT

  • Bus Standard

    PCI Express 4.0

  • OpenGL

    OpenGL®4.6

  • Video Memory

    4GB GDDR6

  • Engine Clock

    OC mode: up to 2820 MHz(Boost Clock)/ up to 2670 MHz(Game Clock)
    Gaming mode: up to 2820 MHz(Boost Clock)/ up to 2650 MHz(Game Clock)

  • Stream Processors

    1024

  • Memory Speed

    18 Gbps

  • Memory Interface

    64-bit

  • Resolution

    Digital Max Resolution 7680 x 4320

  • Interface

    Yes x 1 (Native HDMI 2.1)
    Yes x 1 (Native DisplayPort 1.4a)
    HDCP Support Yes (2.3)

  • Maximum Display Support

    2

  • NVlink/ Crossfire Support

    No

  • Accessories

    1 x Speedsetup Manual

  • Software

    ASUS GPU Tweak III & Drivers: please download all software from the support site.

  • Dimensions

    201 x 128 x 40 mm
    7.9 x 5.03 x 1.57 inch

  • Recommended PSU

    500W

  • Power Connectors

    1 x 6-pin

  • Slot

    2 Slot

  • Note

    * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
    * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
    * Crossfire Support for DirecX® 12 and Vulkan®
    * ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
    * ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
