ASUS Dual GeForce RTX™ 4060 Ti SSD OC Edition 8GB GDDR6

ASUS Dual GeForce RTX™ 4060 Ti SSD OC Edition 8GB GDDR6 is designed for broad compatibility, with an M.2 SSD slot, 2.5-slot design, Axial-tech fan design, 0dB technology, and more

  • Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
  • 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
  • 3rd Generation RT Cores: Up to 2x ray tracing performance
  • OC edition: Boost Clock 2595 MHz (OC Mode)/ 2565 MHz (Default Mode)

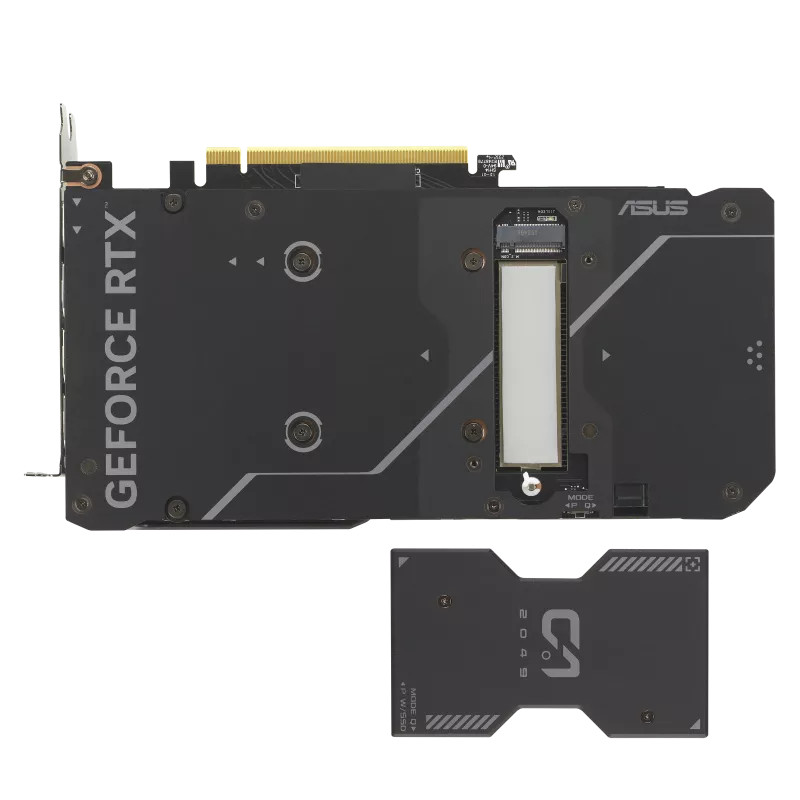

  • The built-in M.2 slot boasts PCIe Gen 5 speeds and effectively dissipates heat to the card's heatsink for cooler temperatures.
  • M.2 Q-latch design enables tool-free installation and removal of M.2 SSDs.
  • Axial-tech fan design features a smaller fan hub to increase airflow through the cooling array
  • A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
  • Dual ball fan bearings can last up to twice as long as sleeve bearing designs
  • 0dB technology lets you enjoy light gaming in relative silence
  • Protective backplate adds structural rigidity and vents to increase heat reliability

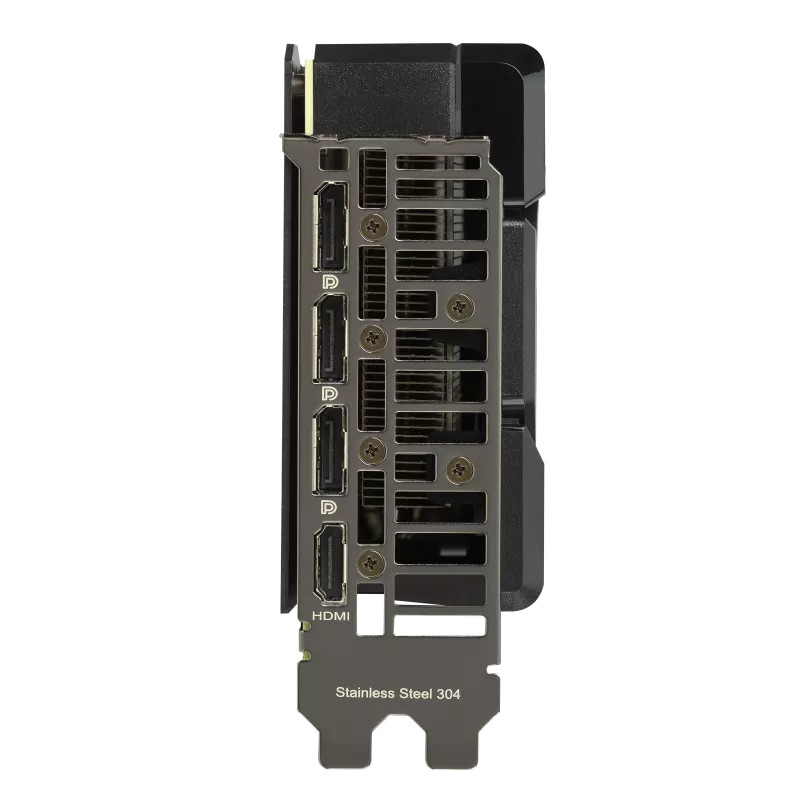

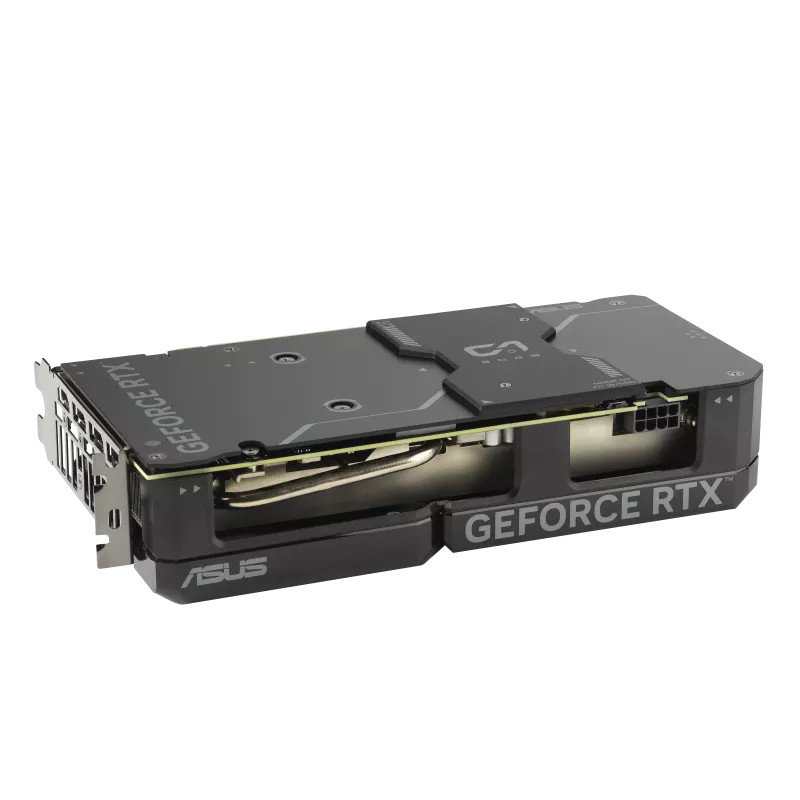

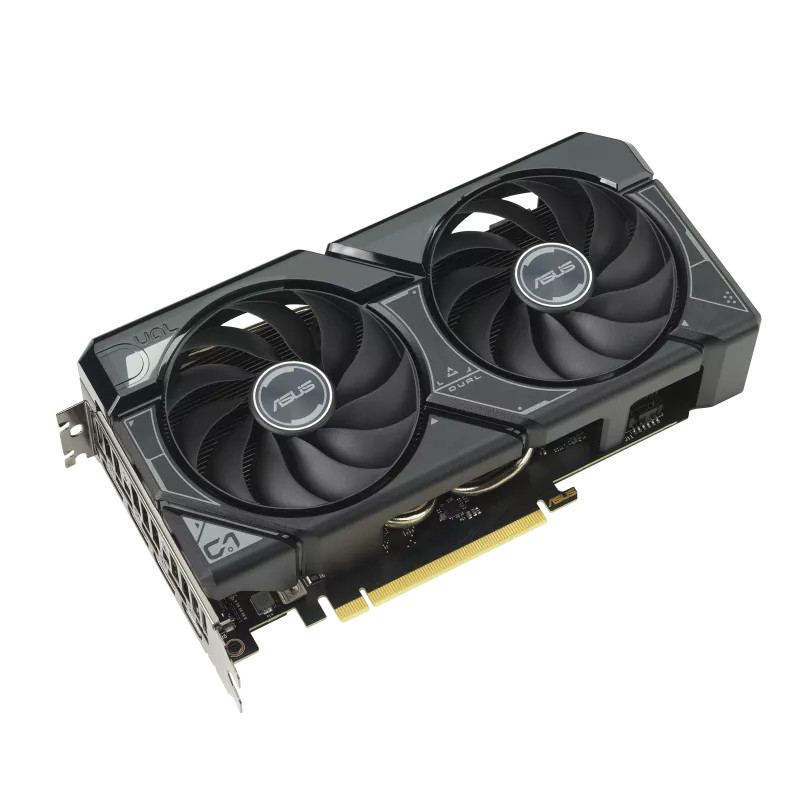

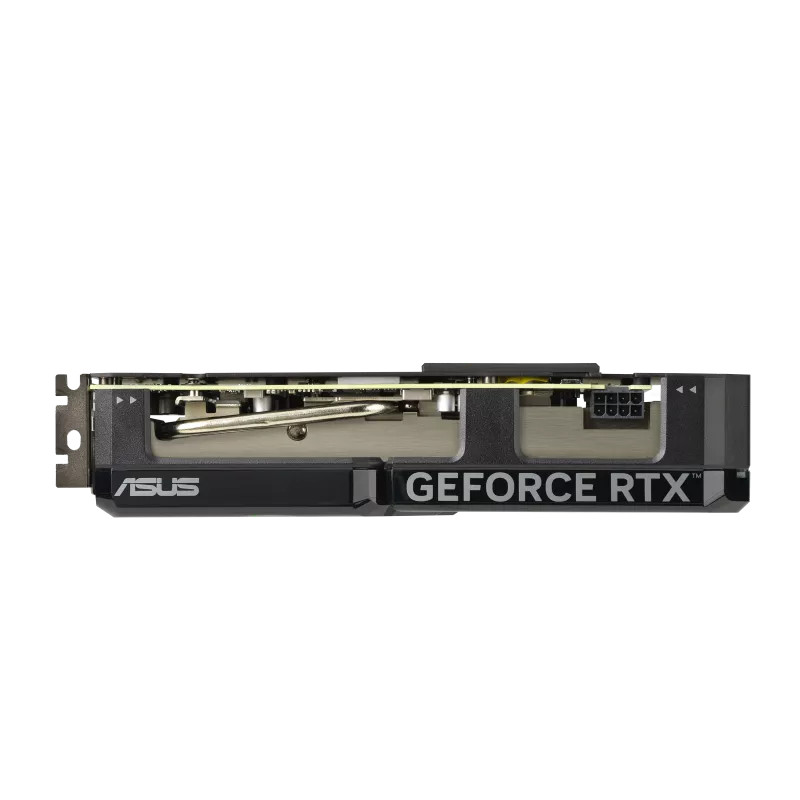

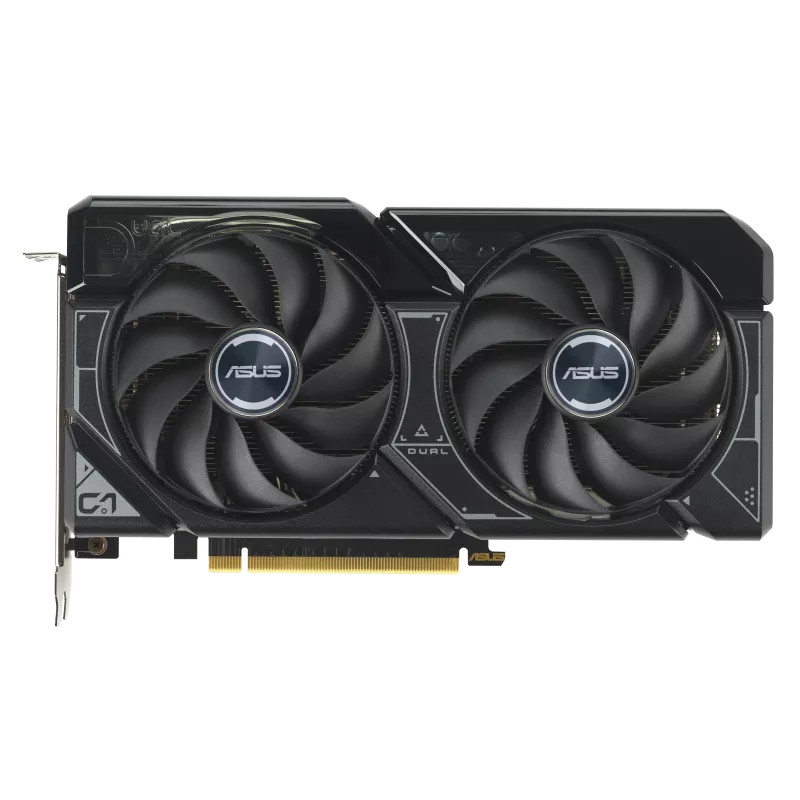

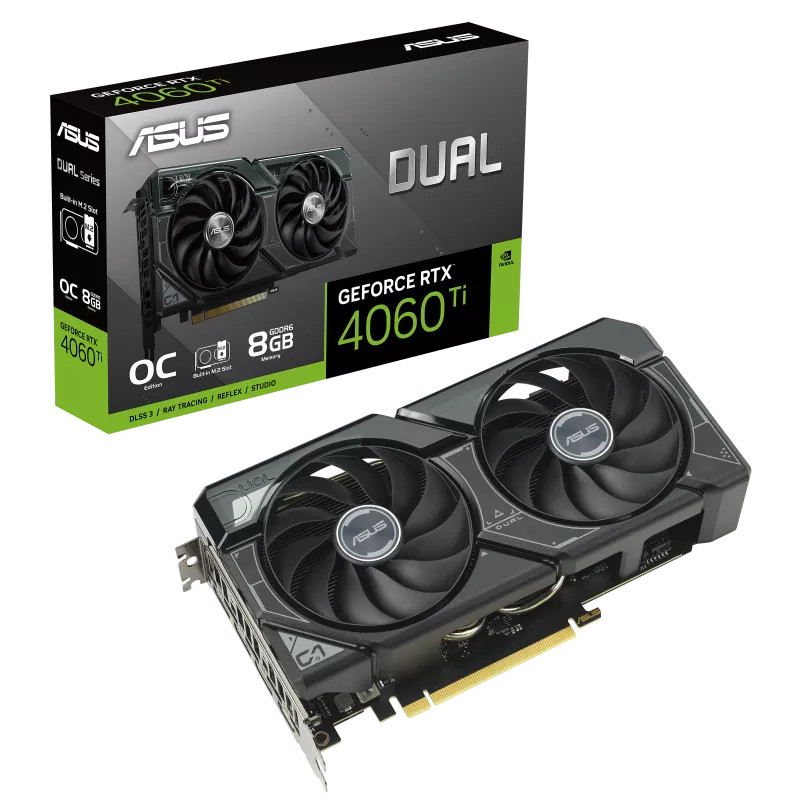

Product Image

Specifications

  • MODEL

    DUAL-RTX4060TI-O8G-SSD

  • Graphic Engine

    NVIDIA® GeForce RTX™ 4060 Ti

  • Bus Standard

    PCI Express 4.0

  • OpenGL

    OpenGL®4.6

  • Video Memory

    8GB GDDR6

  • Engine Clock

    OC mode : 2595 MHz
    Default mode : 2565 MHz (Boost)

  • CUDA Cores

    4352

  • Memory Speed

    18 Gbps

  • Memory Interface

    128-bit

  • Resolution

    Digital Max Resolution 7680 x 4320

  • Interface

    Yes x 1 (Native HDMI 2.1a)
    Yes x 3 (Native DisplayPort 1.4a)
    HDCP Support Yes (2.3)

  • Maximum Display Support

    4

  • NVlink/ Crossfire Support

    No

  • Accessories

    1 x Collection Card
    1 x Speedsetup Manual
    1 x Install Manual
    1 x Thank you card
    1 x SSD Metal Cover
    1 x Parts Package

  • Software

    ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

  • DIMENSIONS

    22.72 x 12.324 x 4.96 cm

  • Recommended PSU

    650W

  • Power connectors

    1 x 8-pin

  • Slot

    2.5 Slot

  • Note

    * Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
