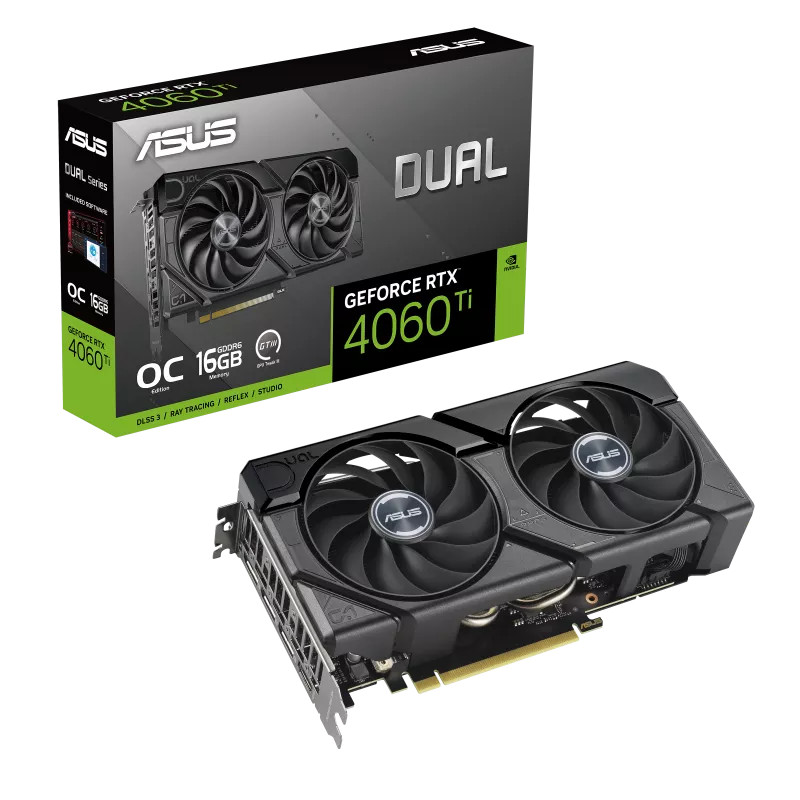

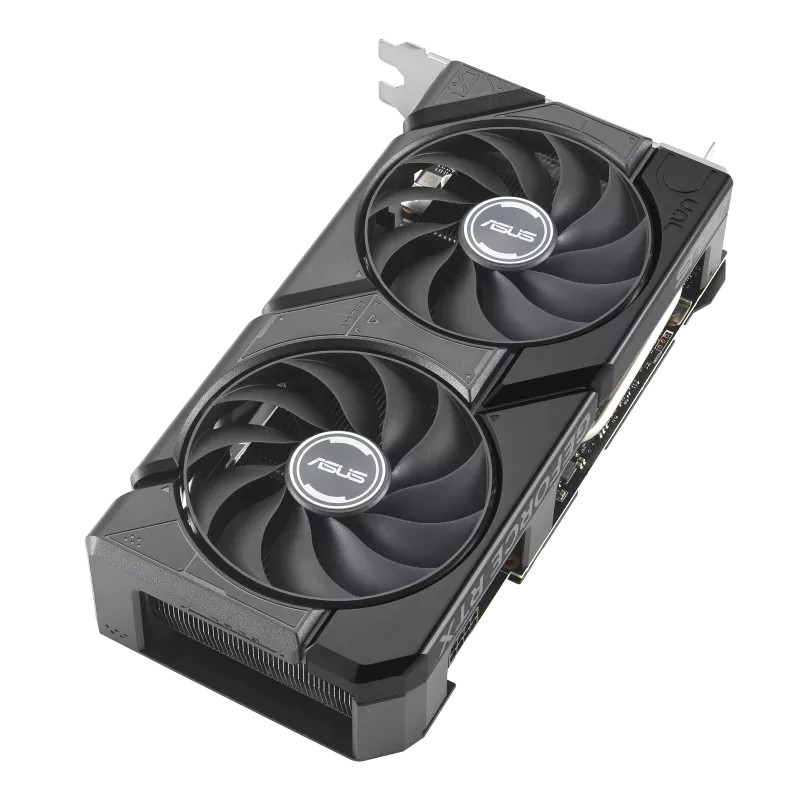

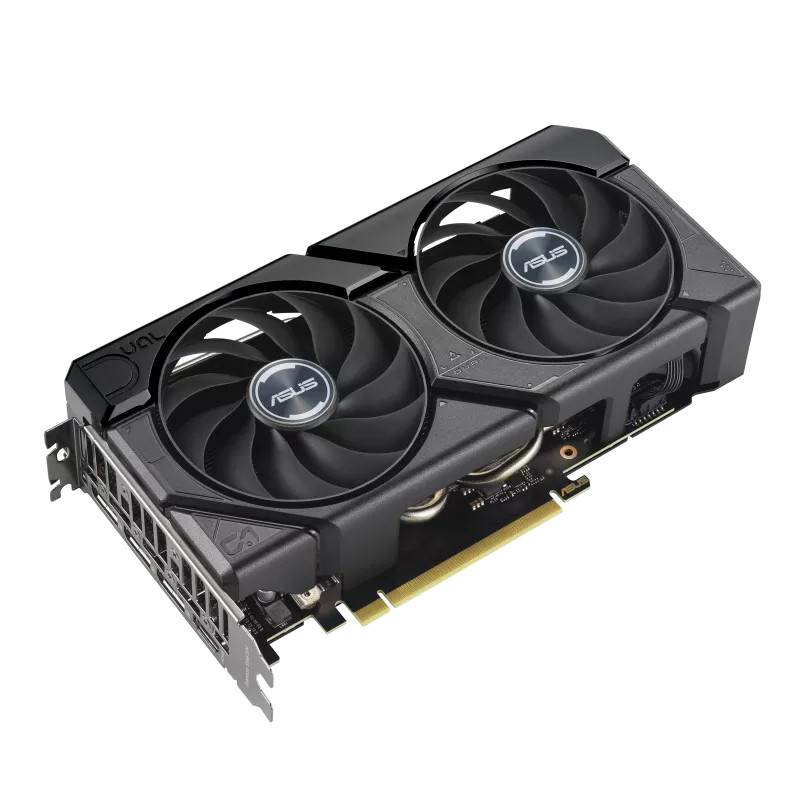

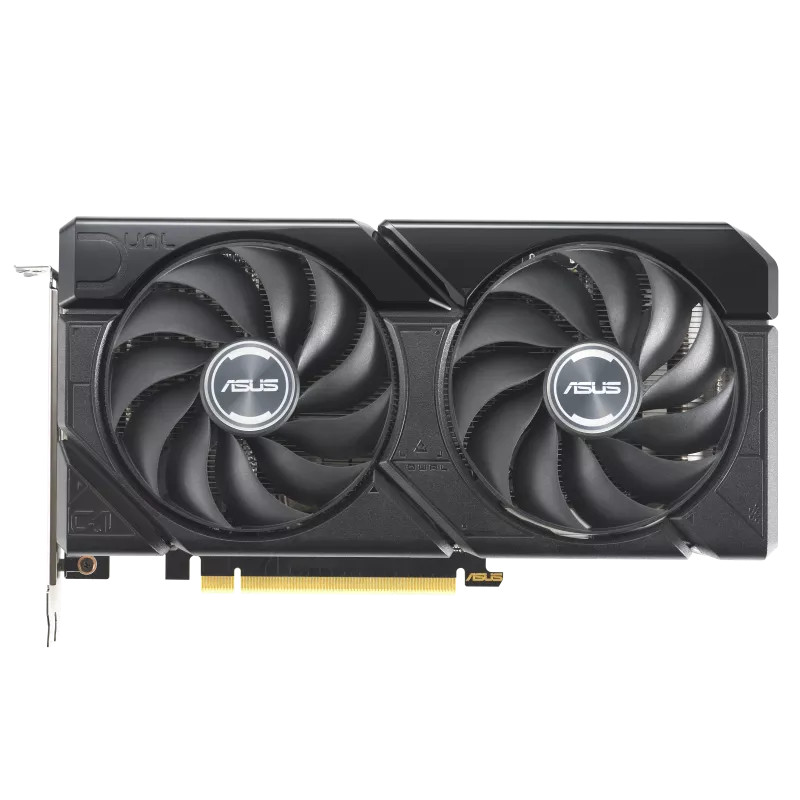

ASUS Dual GeForce RTX 4060 Ti EVO OC Edition 16GB GDDR6

AI Performance: 361 AI TOPS
Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2x ray tracing performance
OC edition: Boost Clock 2595 MHz (OC Mode)/ 2565 MHz (Default Mode)
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
0dB technology lets you enjoy light gaming in relative silence.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
A protective backplate secures components during transportation and installation.
Auto-Extreme technology uses automation to enhance reliability.

Specifications

Model

DUAL-RTX4060TI-O16G-EVO
Graphic Engine

NVIDIA® GeForce RTX™ 4060 Ti
AI Performance

361
Bus Standard

PCI Express 4.0
OpenGL

OpenGL®4.6
Video Memory

16GB GDDR6
Engine Clock

OC mode : 2625 MHz
Default mode : 2595 MHz (Boost)
CUDA Cores

4352
Memory Speed

18 Gbps
Memory Interface

128-bit
Resolution

Digital Max Resolution 7680 x 4320
Interface

Yes x 1 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support

4
NVlink/ Crossfire Support

No
Accessories

1 x Speedsetup Manual
1 x Thank you Card
Software

ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions

227.2 x 123.24 x 49.6 mm
8.94 x 4.85 x 1.95 inches
Recommended PSU

650W
Power Connectors

1 x 8-pin
Slot

2.5 Slot
Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more
tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page:
https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
