Riing Quad 12 RGB Radiator Fan TT Premium Edition 3 Fan Pack - Black (Controller included)
Thermaltake Riing Quad radiator fan is designed with 4 independent LED rings totaling 54 LEDs and 16.8 million color combinations. The fan is virtually inaudible when in operation and supports our NeonMaker light editing software and TT RGB PLUS Ecosystem.
Riing Quad Series

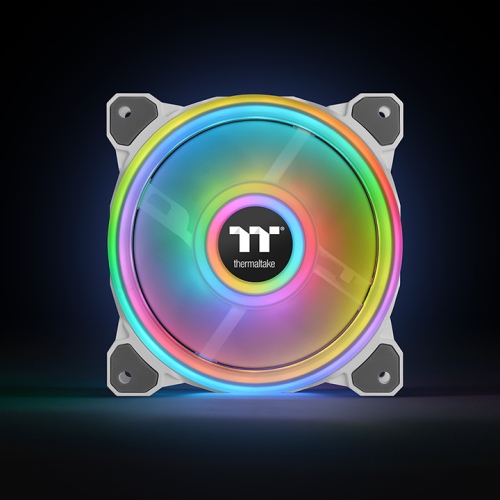

The Riing Quad radiator fan is unique and in its class of its own, combining outstanding reliability, silent operation, unrivaled cooling, and most importantly the fan is engineered with 54 LEDs, split between 4 separate ring’s creating vibrant and gorgeous lighting effects when set through our NeonMaker light editing software.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit.

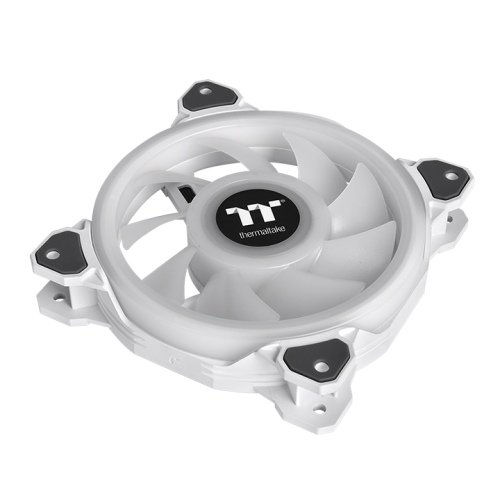

PWM Controlled Fan with 9-Fan Blade Design
Riing Quad’s PWM controlled fan is designed with 9 blades and is engineered to generate higher airflow without compromising on ultra-silent operation.
Note:
*Caution: Due to voltage limitation, it is recommended not to connect more than 3 RGB fans to a single controller. You can only add a maximum of 6 fans with 2 controllers by a single 4pin molex cable.
*DO NOT connect Riing Quad fans to other TT RGB PLUS controllers.
Specifications
-
Fan Dimensions
120 x 120 x 25 mm
-
Interface
USB 2.0 connectors (9 Pin)
-
SYSTEM COMPATIBILITY
Windows 7 / 8 / 8.1 / 10
-
FAN STARTED VOLTAGE
9.0 V
-
FAN RATED VOLTAGE
12 V & 5V
-
RATED CURRENT
12V- 0.09 A , 5v – 0.9A (Fan*1)
-
POWER INPUT
12V – 3.24 W . 5V – 13.5 W (Fan*3)
-
Fan Speed
500 ~ 1500 R.P.M
-
MAX. AIR PRESSURE
1.4 mm-H2O
-
MAX AIR FLOW
40.9 CFM
-
NOISE LEVEL
25 dB-A
-
BEARING TYPE
Hydraulic Bearing
-
LIFE EXPECTATION
40,000 hrs,25℃
-
Weight
189 g (Fan*1)
