Pure Duo 14 ARGB Sync Radiator Fan (2-Fan Pack)-Black
Overview
Specifications

Pure Duo 14 ARGB Sync Radiator Fan (2-Fan Pack)-Black

140mm PWM controlled fan with a 16.8 million color addressable LED ring that supports 5V RGB capable motherboards.

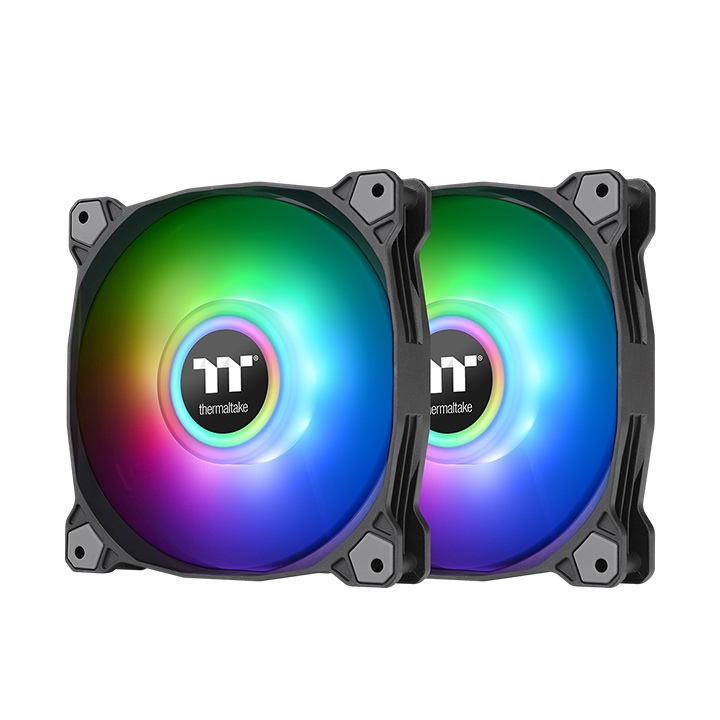

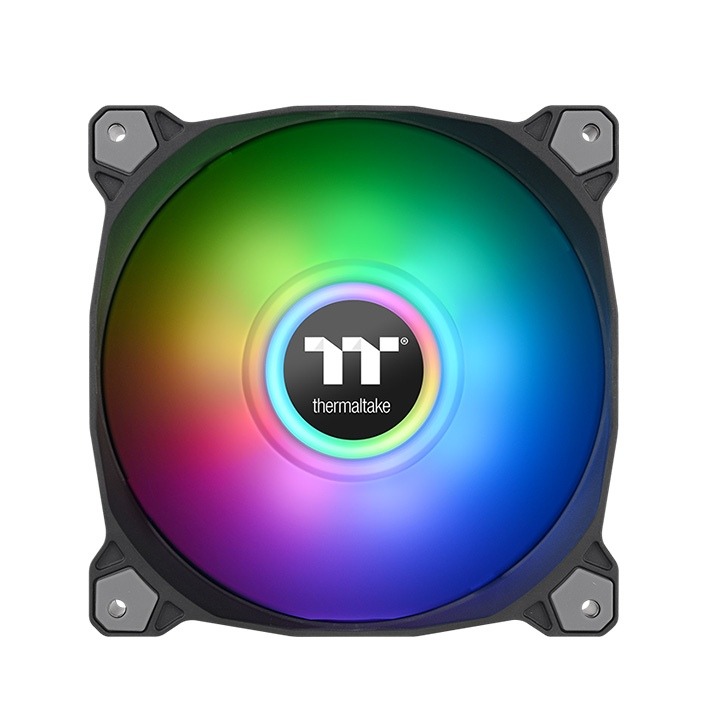

16.8 Million Color 2-LED Ring Design

Featuring 2 independent rings and 9 addressable LEDs on each ring, the Pure Duo fan gives great light coverage, uniform color and brightness. The built-in LED ring can light up your build with 16.8 million colors.

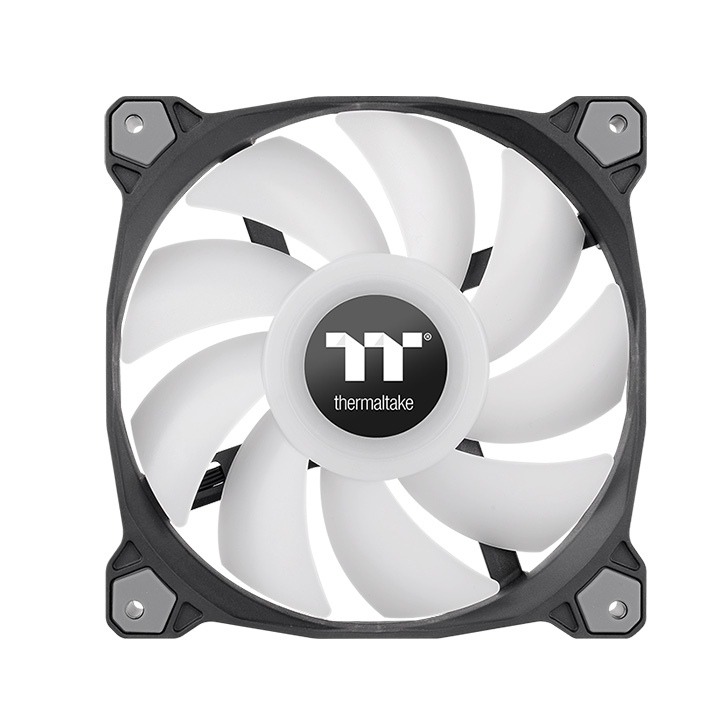

PWM Controlled Fan with 9 Fan Blade Design

PWM controlled fan with an unique 9 blade design is engineered to generate higher airflow whilst keeping quiet. The Pure Duo fans ensure more efficient cooling performance under intense operation.

Hydraulic Bearing with Low-Noise Design

The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit.

Fan Speed(standard)1500 RPMNoise Level (standard)23 dBAFan Speed(w/ Low Noise Mode)500 RPMNoise Level(w/ Low Noise Mode)18 dBA

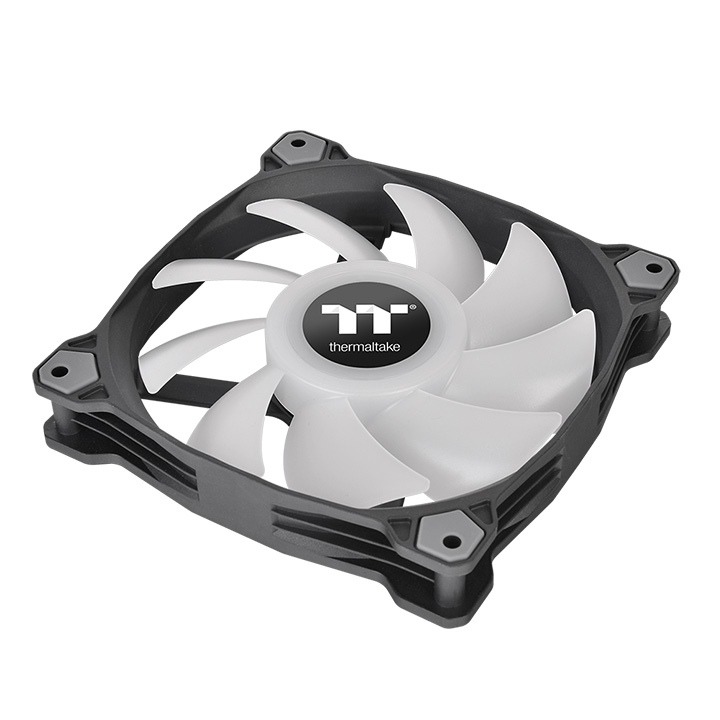

Anti-Vibration Mounting System

The In-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.

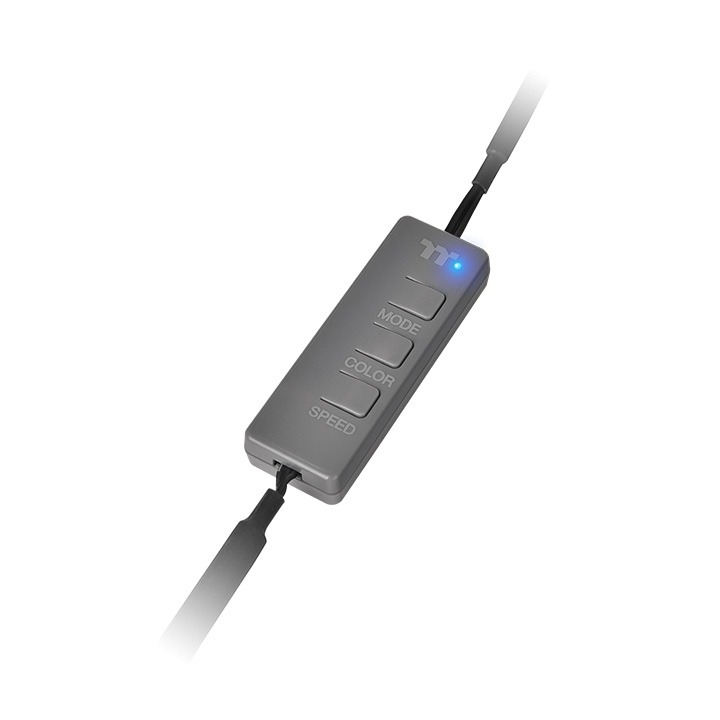

Simply Switch LED Modes with the Preset Controller

The controller comprises of 7 preset lighting modes: wave, full light, rgb spectrum, flow, ripple, pulse and blink modes, which are easy to switch even without the 5V addressable RGB header on your motherboard. Not only can users switch modes, but switch colors and lighting speeds intuitively.

*The maximum signal output for one controller is 90 addressable LEDs.

View the light show






Mode


Sync with Motherboard RGB Software

Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

  • Aura Addressable Header

    ASUS
  • Digital Pin Header

    GIGABYTE
  • JRAINBOW Header

    MSI
  • Addressable RGB LED Header

    ASROCK
Category Caution
Chassis, ARGB Fan, ARGB AIO
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.
RGB Memory, VGA Waterblock, Distro Plate
  • This product can only be used with either the TT RGB PLUS software or the dedicated Motherboard software. By having more than two applications open may cause conflicts
  • The motherboard signal connector only supports a 5V header.
  • Make sure your motherboard software is the latest version.




IMPORTANT NOTICE OF PRIVACY POLICY


 Accept Close More

Pure Duo 14 ARGB Sync Radiator Fan (2-Fan Pack)-Black
Pure Duo 14 ARGB Sync Radiator Fan (2-Fan Pack)-Black
Pure Duo 14 ARGB Sync Radiator Fan (2-Fan Pack)-Black
Pure Duo 14 ARGB Sync Radiator Fan (2-Fan Pack)-Black
Pure Duo 14 ARGB Sync Radiator Fan (2-Fan Pack)-Black
Pure Duo 14 ARGB Sync Radiator Fan (2-Fan Pack)-Black



Product Image

Specifications

  • Fan Dimensions

    FAN DIMENSION

  • Interface

    Fan 2510-4P , LED 5V RGB Header

  • STARTED VOLTAGE

    9.0 V

  • RATED CURRENT

    Fan 0.17 A , LED 0.28 A (Fan*1)

  • RATED VOLTAGE

    12 V & 5V

  • POWER INPUT

    12V – 5.76 W , 5V – 2.8 W (Fan*2)

  • Fan Speed

    PWM 500~1500 R.P.M

  • MAX. AIR PRESSURE

    2.24 mm-H2O

  • MAX AIR FLOW

    82.23 CFM

  • NOISE LEVEL

    33.5 dB-A

  • NOISE LEVEL

    Hydraulic Bearing

  • LIFE EXPECTATION

    40,000 hrs, 25℃

  • Weight

    209 g (Fan*1)
