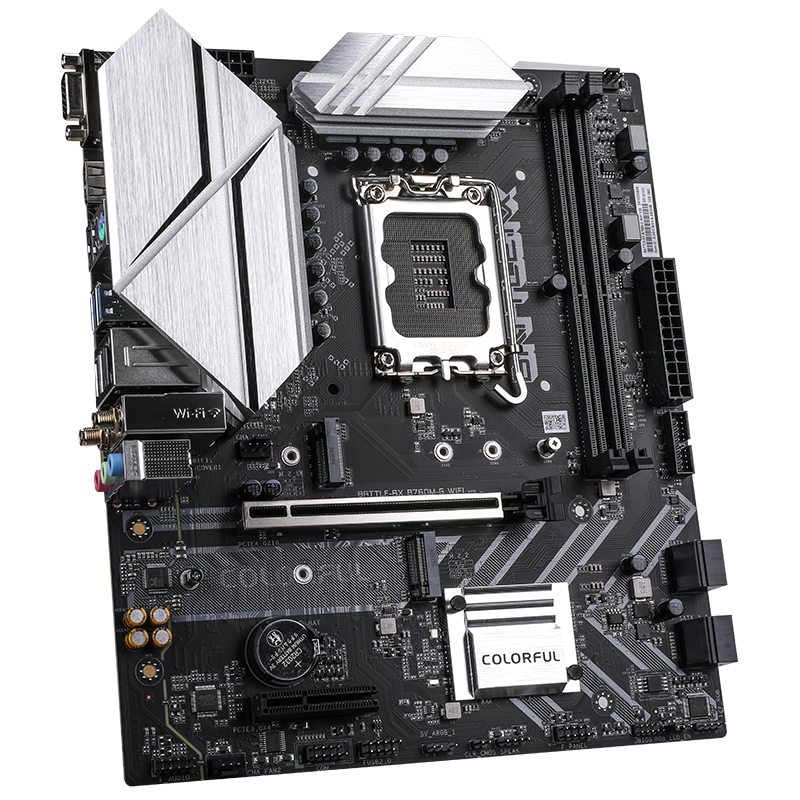

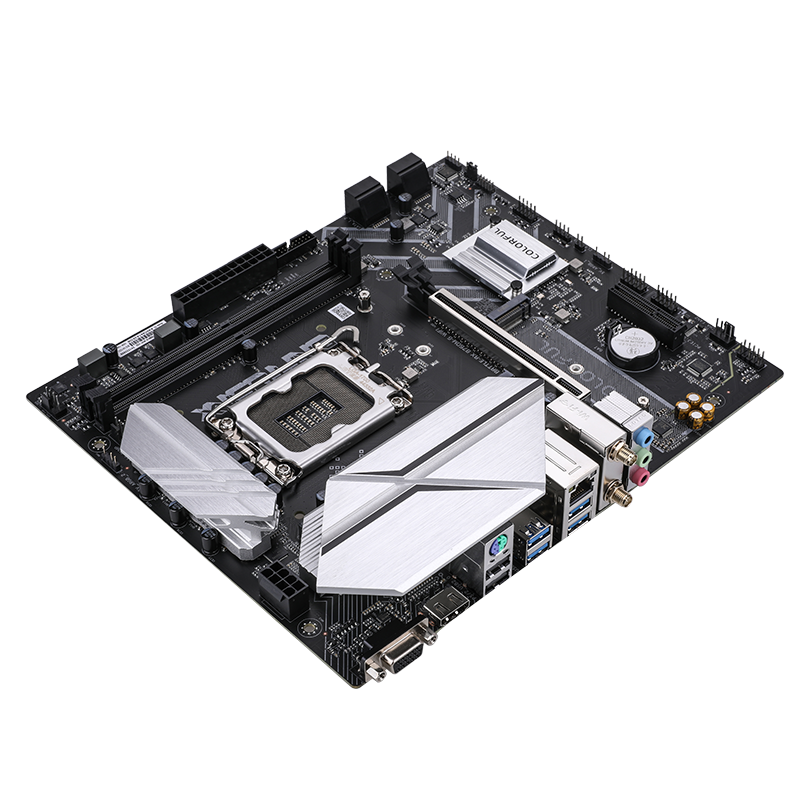

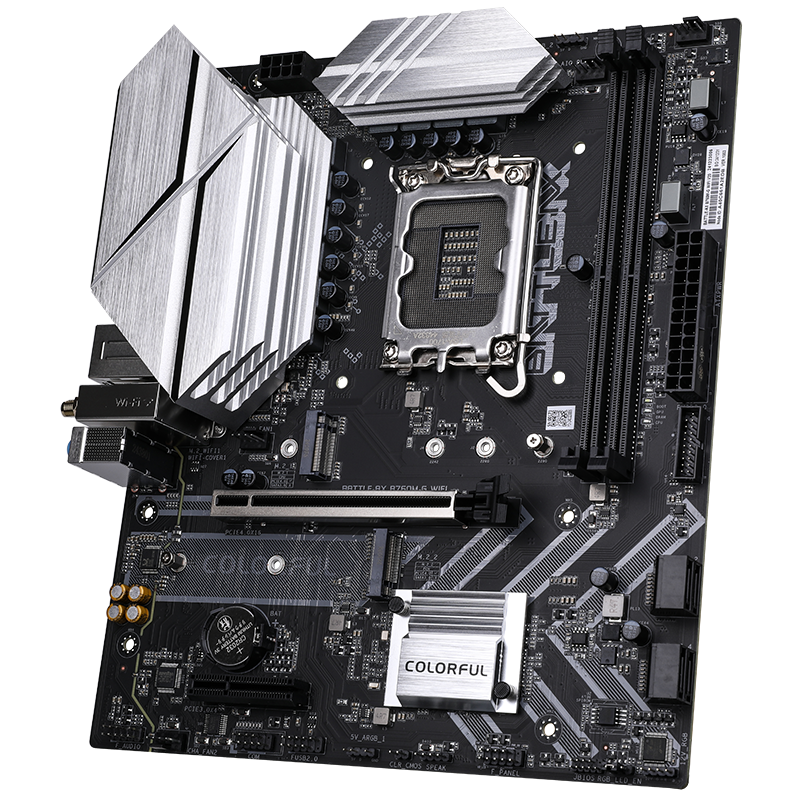

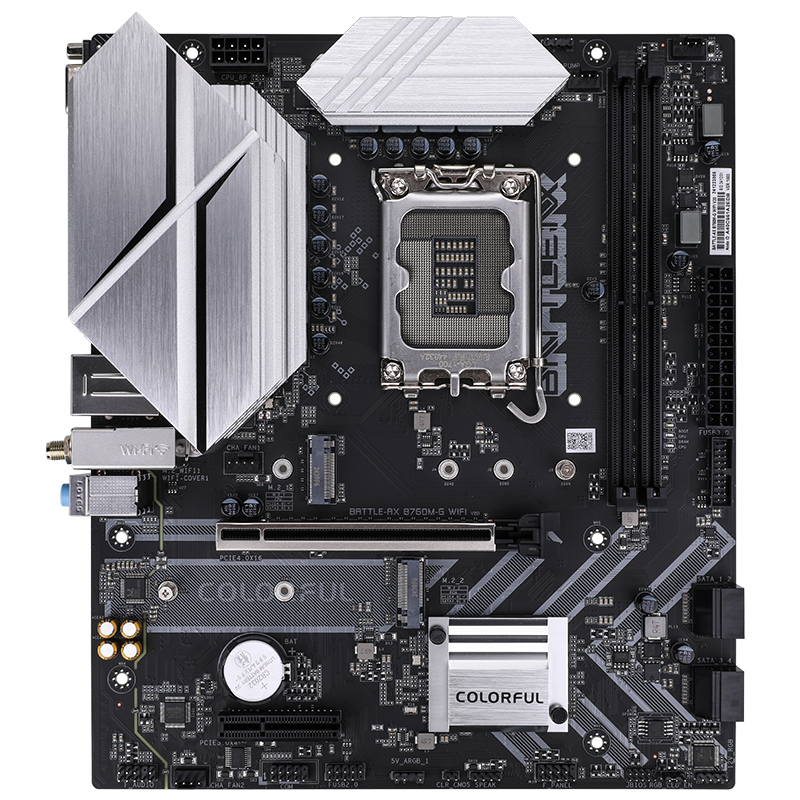

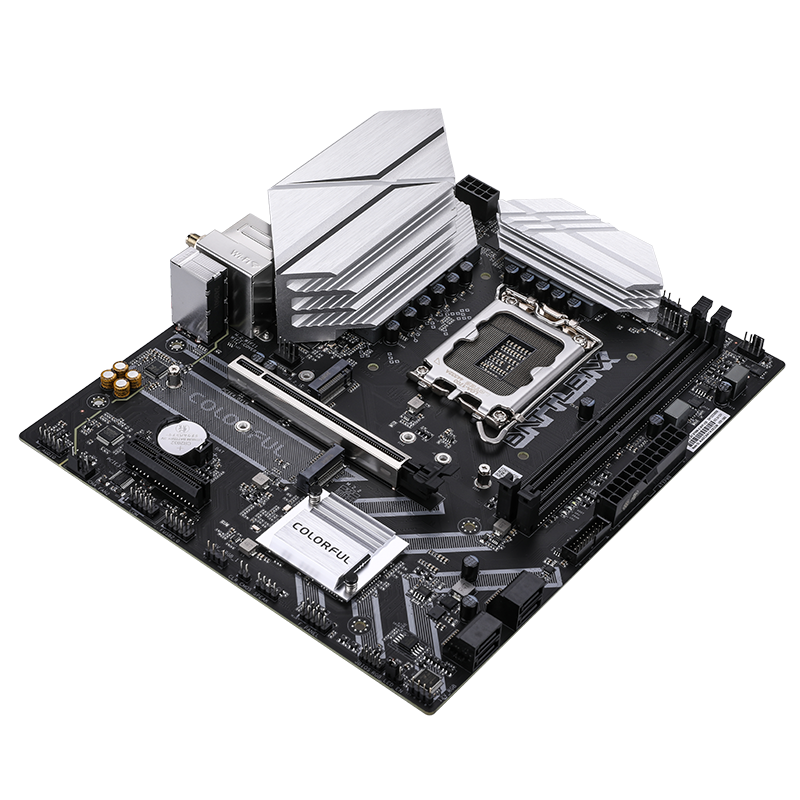

BATTLE-AX B760M-G WIFI V20A
Sorotan Fitur:
Provides 2 PCIe 4.0 x4 M.2 SSD slots, 1 PCIe 5.0 x16 slot
Provides 4 USB 3.2 Gen 1 Type-A high-speed rear interfaces
Equipped with Realtek 2.5G high-speed wired network card and AX101 WiFi 6 wireless network card, supports Bluetooth 5.2
Supports iGame Center lighting control software, which can adjust the lighting effects of the radiator, cooling fan and memory simultaneously
Provides HDMI+VGA interface
Six major protection technologies, more stable product operation
200 process strict testing, quality guaranteed
PCB atomization process fully upgraded
Specifications
-
Model
BATTLE-AX B760M-G WIFI V20A
-
Product Series
BATTLE-AX series
-
Chipset
Intel B760
-
Processor
Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
(*Please visit the Colorful official website www.colorful.cn for the latest processor support list) -
Memory
2 DDR4 memory slots, supporting up to 64 GB memory (single slot supports up to 32 GB)
- Supports DDR4-4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200/3000/2933/2800/2666/2400/2133MHz memory
- Supports Intel® Extreme Memory Profile (XMP) memory technology
- Supports dual-channel memory technology
(*Please visit Colorful's official website www.colorful.cn for the latest memory compatibility list) -
SATA Ports
2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, supporting the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard drive devices
- M.2_1 slot: supports 2242/2260/2280 specification M.2 SSDs (PCIe 4.0 x4, CPU channel)
- M.2_2 slot: supports 2242/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) -
Board I/O

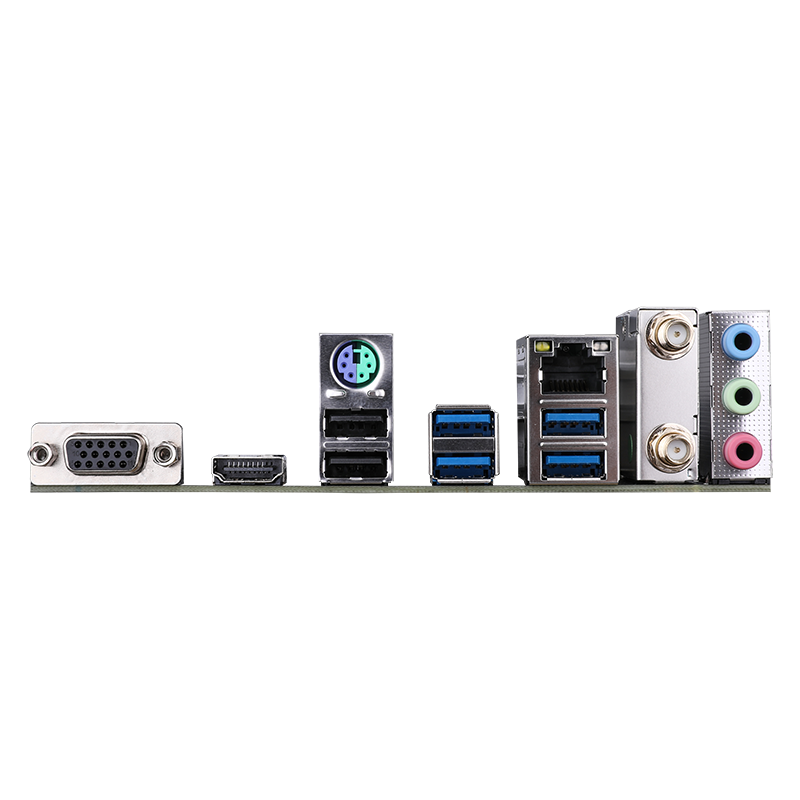

Rear I/O :
-1×PS/2 interface
-2×USB 2.0 interfaces
-4×USB 3.2 Gen 1 Type-A interfaces
-1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
-1×VGA interface
-1×2.5G network interface
-2×Wi Fi 6 antenna interfaces
-3×Audio interfaces (audio input/output/microphone)
Onboard device:
-1×CPU fan pin
-2×System fan pins
-1×Water-cooled pump pin
-1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
-2×5V 3-pin ARGB pins
-1×12V 4-pin RGB pin
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×Serial port pin
-1×Clear CMOS jumper
-1×BIOS burner pin
-1×RGB light effect control jumper -
Expansion Slots
1×PCIe 5.0 x16 slot
1×PCIe 3.0 x4 slot -
BIOS
128M UEFI, Supports multiple languages
-
Power Management
Support S3 S4， Network S5 wake-up, Supports timed startup and incoming call startup
-
Hardware Monitor
CPU fan speed controllable, System fan speed controllable, CPU temperature monitoring, system temperature monitoring, and voltage monitoring of each group
-
LAN
RTL8125BG 2.5Gbit network card, AX101 WiFi 6 wireless network card, Bluetooth 5.2
-
Audio
Realtek ALC897 high fidelity decoding chip, Supporting 5.1 channels
-
Configuration
M-ATX
245mm x 210mm
